Murata Muratec MD120II
Have one to sell?
ConditionUsed
1 available

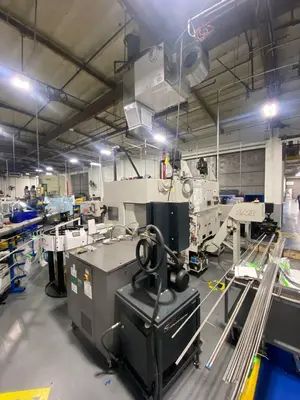

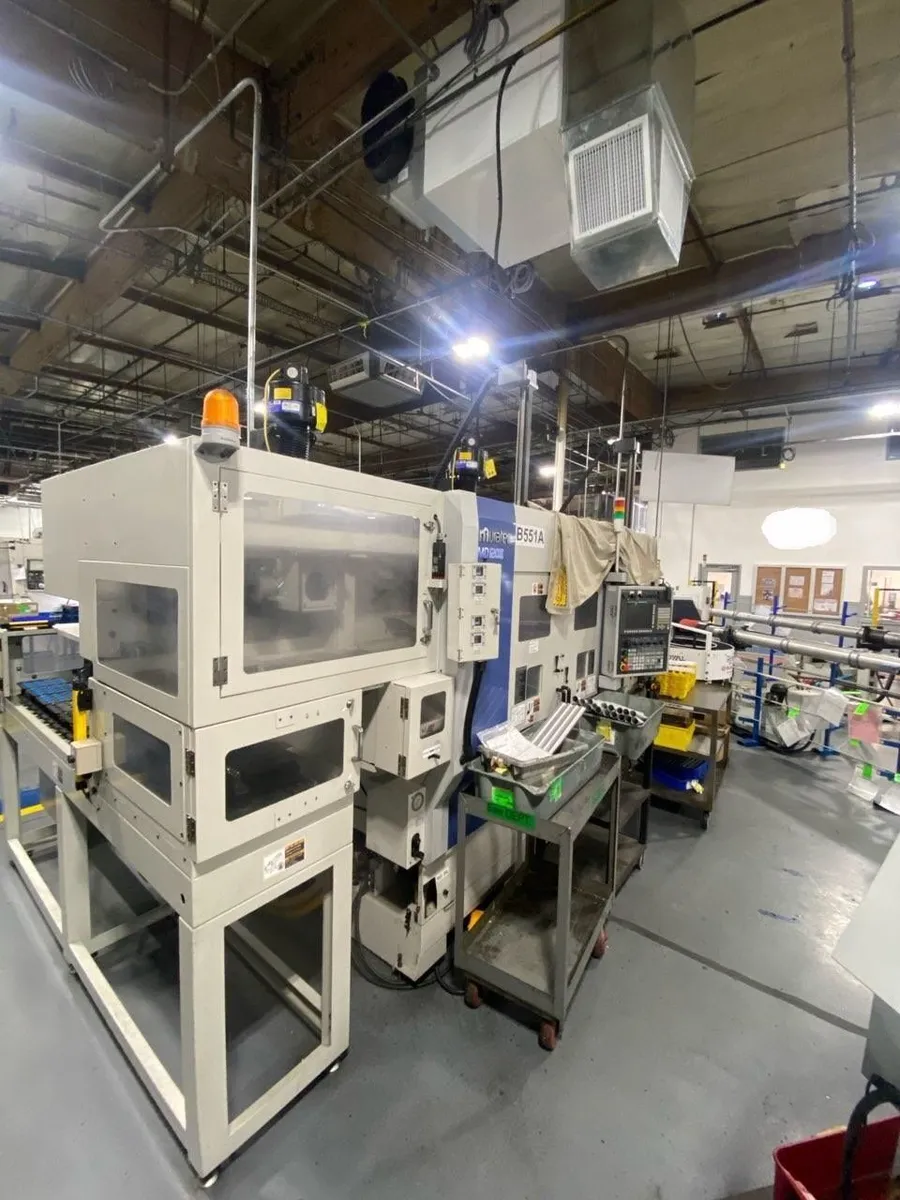

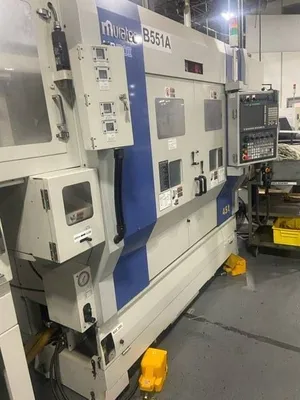

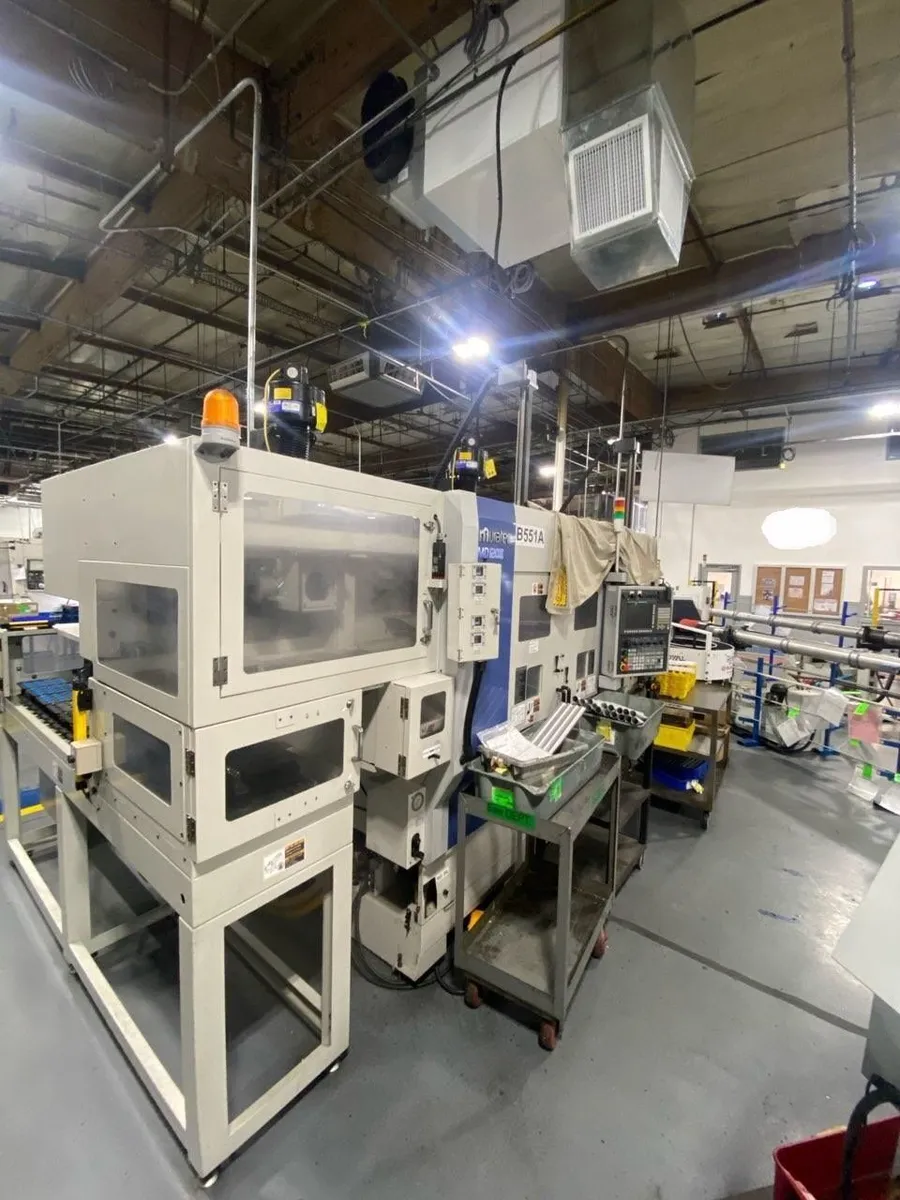

2022 Murata Muratec MD120GT II with Gantry Loader, Live Milling, Stacker Table, High Pressure Coolant, Mist Collection and Royal Rack part Accumulator.
Max. Swing...................11.61"
Standard Chuck Size..........6" or 8"
Turning Diameters............4.72" Nominal, 9.440" Max.
Turning Lengths..............3.150" Nominal, 3.94" Max.
X-Axis Travel................5.12"
Z-Axis Travel................5.71"
Spindle Drive Motors.........11 KW
Spindle Nose Size............A2-5
Spindle Speeds...............4500 RPM
Rapid Traverse Rate..........945 IPM
Number of Turret Stations....10 x 2
Milling Motor................2.5 KW
Live Milling Speed...........4,000 RPM
Tool Shank Size..............0.75" Square, 1.570" Round
Floor Space..................139.37" x 136.22"
Approx. Weight w/Loader......11,800 lbs

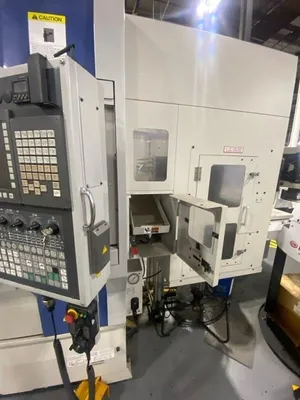

Fanuc 31iTB CNC Controls

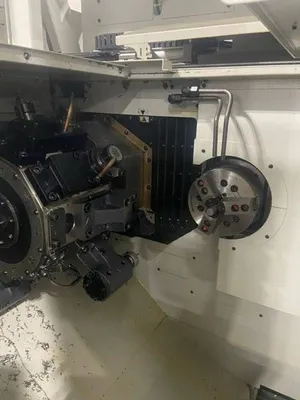

(1) Microcentric OP20 Collet Chuck
(2) OP10 & OP30 Microcentric Long Stroke Power Chuck
Machine Modification for Long Work Piece

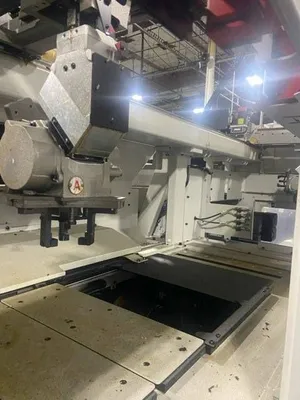

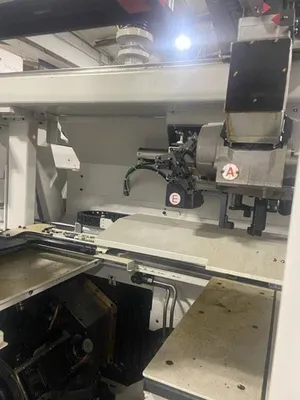

Overhead Gantry Loader
Loader Program Memory Upgrade
Rigid Tap Function
Custom Macro B
Auto Tool Shift
Remote MPG

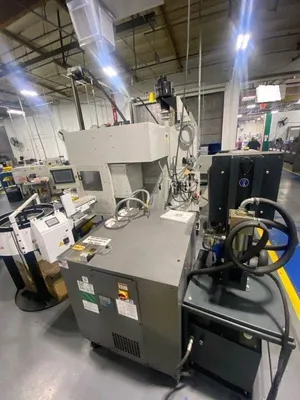

MP Systems RF8 1,000 PSI High Pressure Coolant
ChipBlaster Stand Alone Cyclone Filtration Unit and Sludge Tank

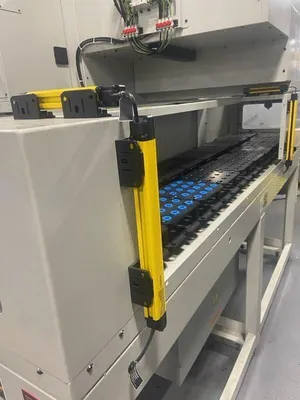

20 Station Small Hi-Boy Work Feeder Table
180 Degree Gantry Mounted Flip Station
(2) Royal Filter Mist FX-300 Mist Collectors
Royal Rota-Rack Heavy Duty Parts Accumulator

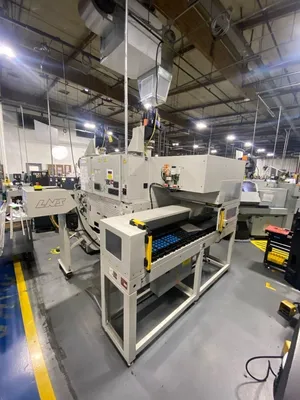

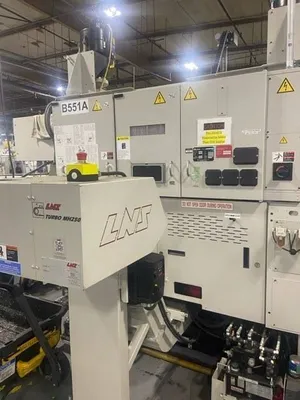

LNS Microhinge 250 Filtering Chip Conveyor
(4) Face Milling Head Tools
(4) Offset Cross Milling Head Tools
45 KVA Transformer
Orientation Station Vision System
Post Process Gage Vision System
Work Location Confirmation Sensing-Both Sides
Program Select Switch
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
