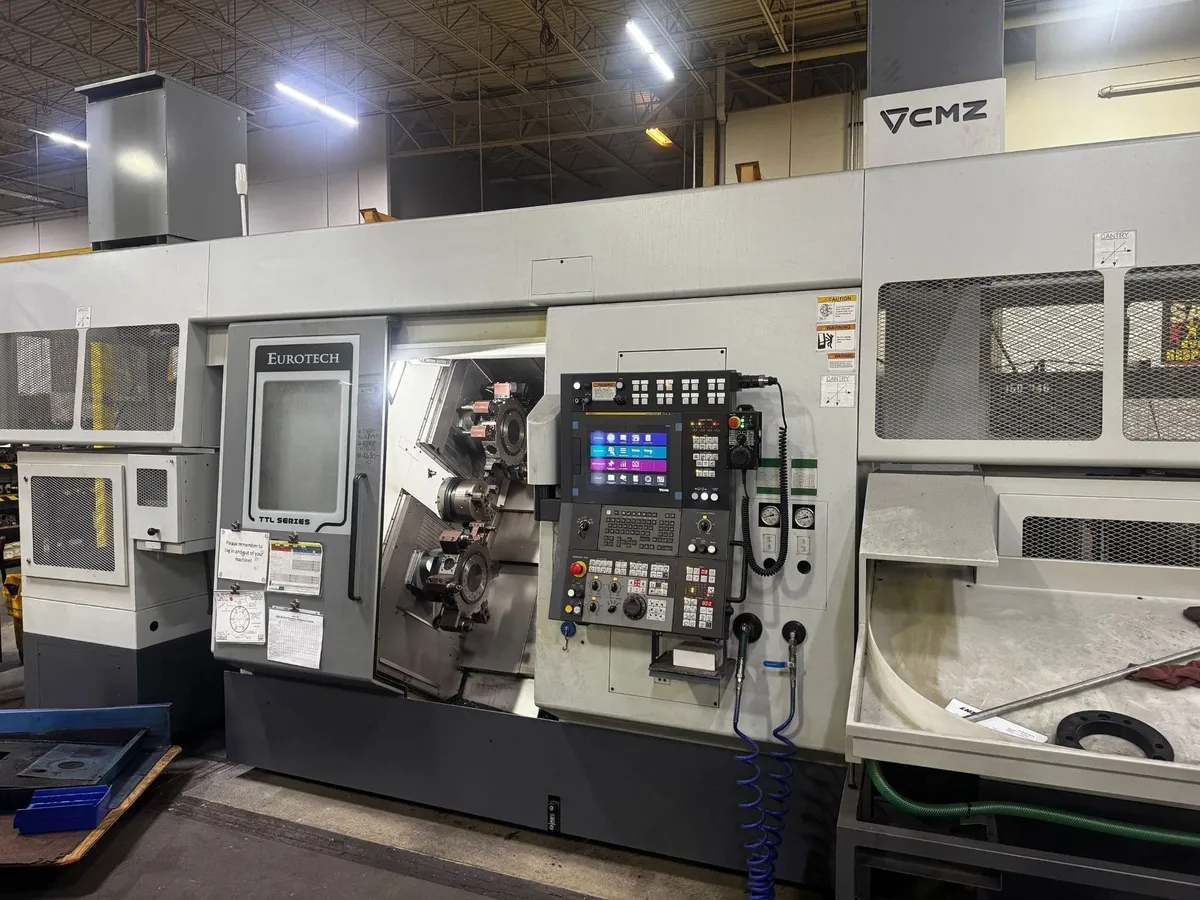

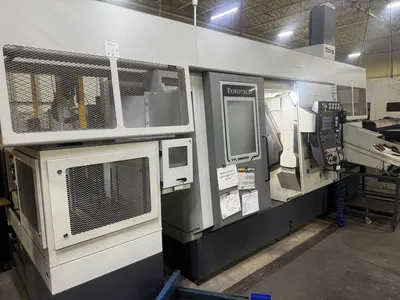

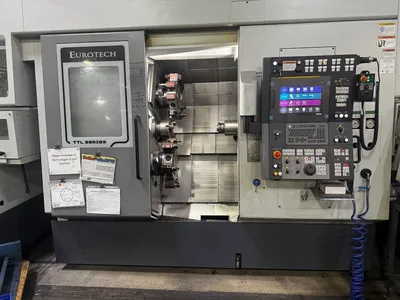

Eurotech TTL-66-66-T1Y-TY2 CNC Turning Center
Have one to sell?
ConditionUsed
1 available
2023 Eurotech TTL-66-66-T1Y-TY2 CNC Turning Center with Fanuc 31iT Control, 10" Chucks, GL20-II 3-Axis Gantry Loader, Work Stocker, MY Systems HP Coolant, Mist Collection, Barfeed Interface for Unimag. 786 Hours
Max Turning Diameter: 240mm
Turning length: 515mm
Bar diameter: 52mm
Turning speed main spindle: 4000min-1

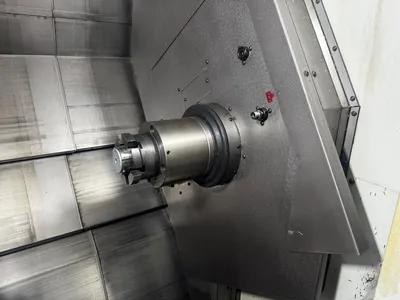

Chuck size main spindle: 210mm
Spindle Power:35.5kW
Turning torque(max./S6 40%):205Nm
Turning speed subspindle: 4000min-1
Outside Ø bearing: 150mm
Inside Ø bearing: 100mm
Spindle Nose Mounting: ASA 6" A2
Bore diameter subspindle: 61mm
Bar diameter subspindle: 52mm
Chuck size subspindle: 210mm
Power subspindle: 35.5kW
Torque subspindle: 205Nm

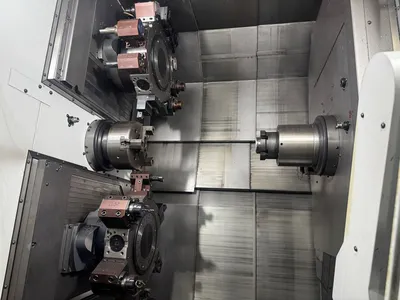

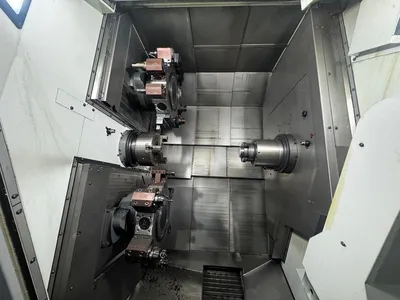

Number of turrets: 2
Number of Tools: 12

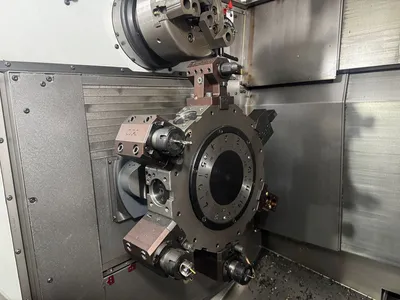

Type of tooling on turret:BMT 55
Time to change tool: 0.1s
Number of rotary tools: 12
Speed of rotary tools: 12000min-1
Power: 14kW
Maximum torque:42Nm

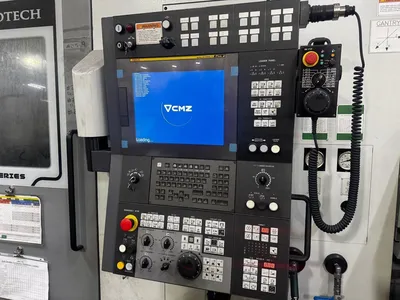

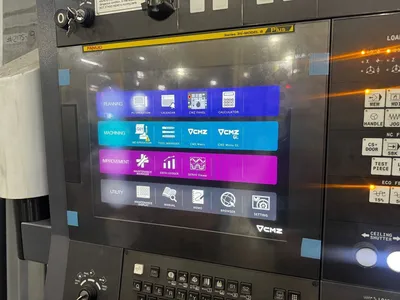

Fanuc 31iT CNC Control
15" Color Monitor

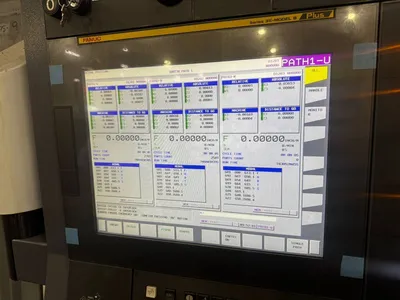

Fanuc iHMI Software
G Codes Type A in Fanuc
Coolant Through Left Spindle

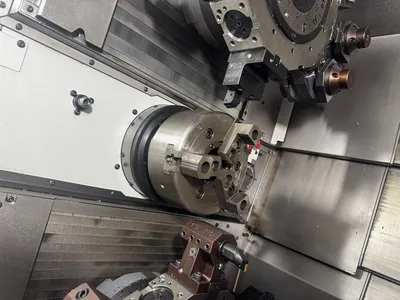

SMW-Autoblock BB-D 210 3-Jaw Chuck L/R Spindles
Removeable Tool Pre-Setter
Upper Turret HP Coolant Pump (6+15 bar, 55l/min)
Lower Turret HP Coolant Pump (6+15 bar, 55l/min)

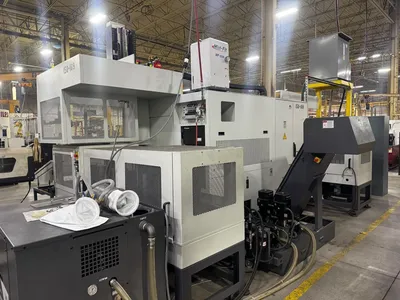

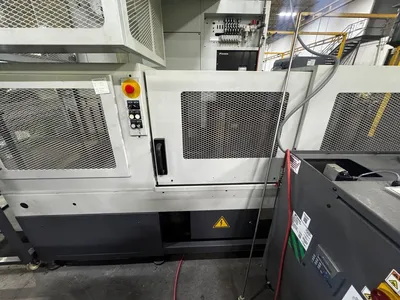

GL20-II 3-Axis CNC Gantry Loader Side Loading
Servo 2 x 180° Dual Gripper Gantry Swivel Head
Work Stocker WS-280 x 400 x 14 (R/L Side of Machine)
Pallet with auto-centering Rods
Test Piece Chute and Table

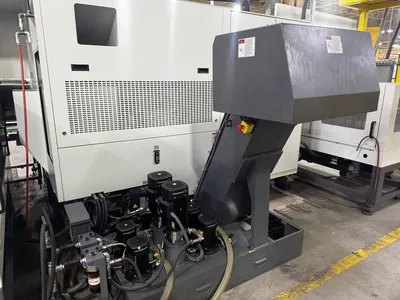

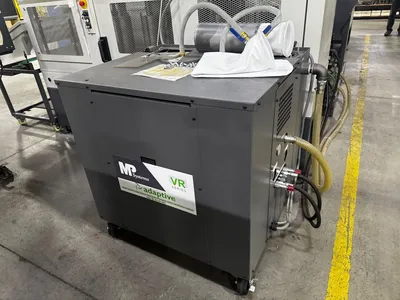

MP Systems Variable Rate HP Coolant System
Mist Collector
Transformer
Machine Status Light
Tool Life Management Function
Tool Load Monitoring Function
Barfeed Interface - Unimag
Interface for Mist Collector
Gantry Covers
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
