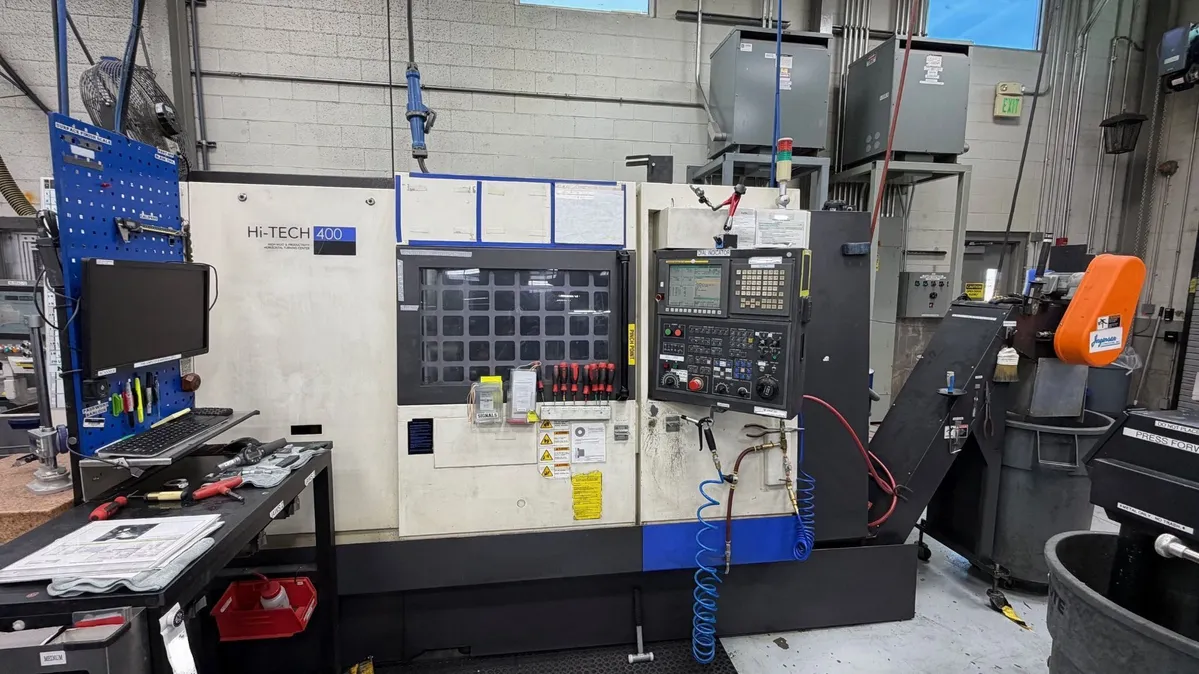

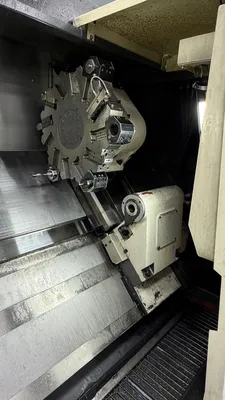

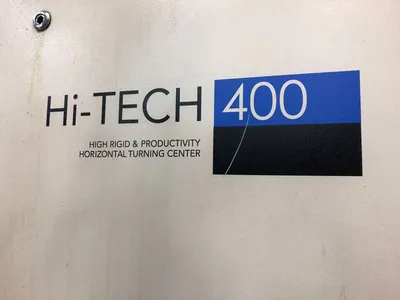

Hwacheon Hi-Tech 400 CNC Turning Center

Maximum Swing.........................23.62"
Maximum Turning Diameter..............14.96"
Maximum Turning Length................29.5"
X-Axis Travel.........................11.02"
Z-Axis Travel.........................32.28"
Main Motor............................30 HP
Spindle Nose..........................A2-8

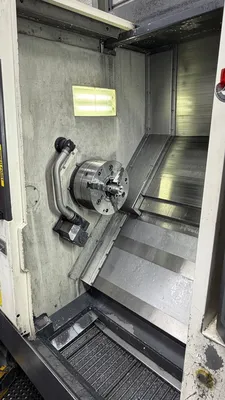

Chuck Size............................12"
Spindle Bearing ID....................6.3"
Through Spindle Hole Diameter.........4.13"
Bar Capacity..........................3.54"
Spindle Speed.........................2,500 RPM
Rapids Traverse Rates.................787 IPM

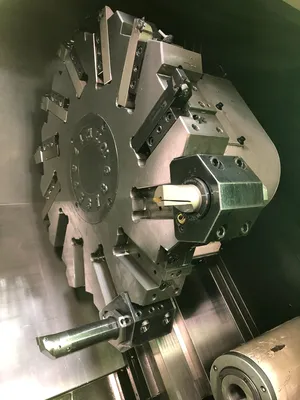

Number of Tools.......................12
Tailstock Quill Diameter..............3.94"
Tailstock Quill Stroke................4.72"
Tailstock Quill Taper.................#5
Machine Floor Space...................130" x 78" x 85"
Machine Weight........................18,850 LBS
