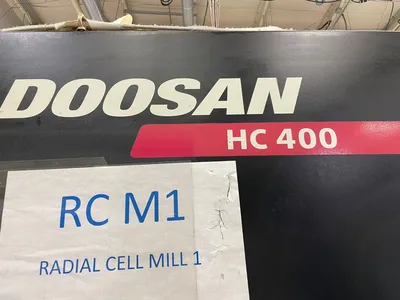

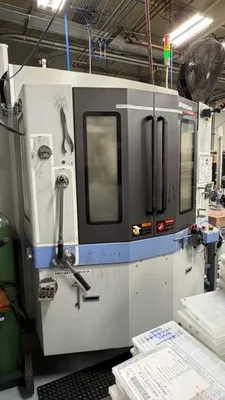

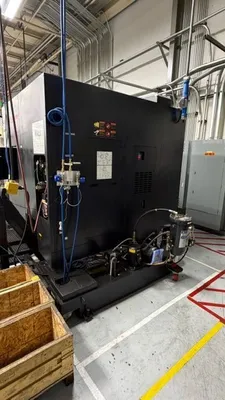

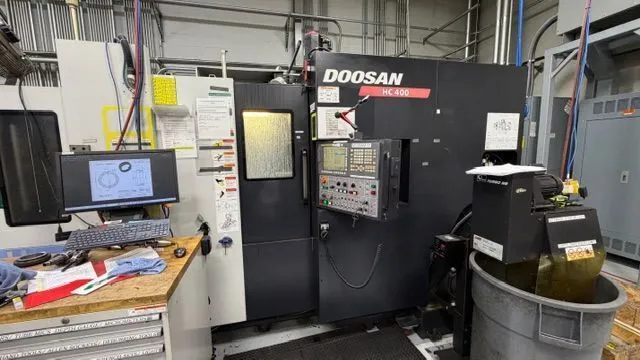

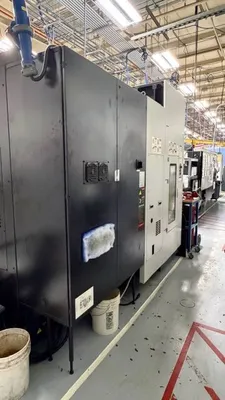

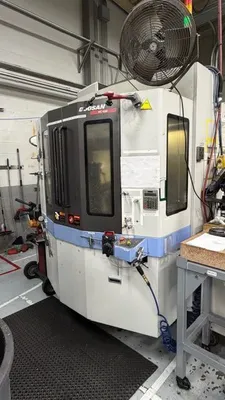

Doosan HC-400 Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
2011 Doosan HC-400 Horizontal Machining Center with Fanuc 32iA Control, Full 4th Axis, 60 ATC, Tsudakoma RB-250K Indexer with Bison 8" Chuck on each pallet with Tombstone
Pallet Size......................15.75" x 15.75"
Table Capacity...................880 lbs
Pallet Rotation..................0.001"
Pallet Change Time...............7.5 Seconds
X-Axis Travel....................22.6"
Y-Axis Travel....................22"
Z-Axis Travel....................22.2"
Main Motor.......................35 HP
Spindle Taper....................CAT-40
Spindle Speed....................10,000 RPM
Traverse.........................1575 IPM
ATC Capacity.....................60 Station
Chip to Chip Time................4 Seconds
Machine Weight...................24,250 lbs
Fanuc Series 32i-A CNC Control

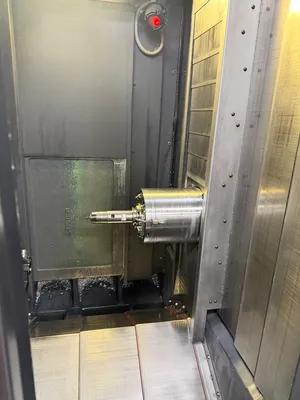

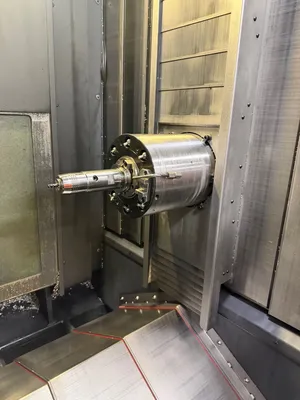

10,000 RPM, CAT-40 Spindle
Full 4th Axis

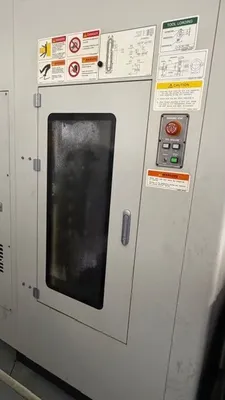

60 Station ATC
Through Spindle Coolant

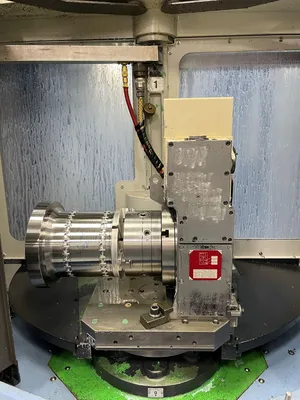

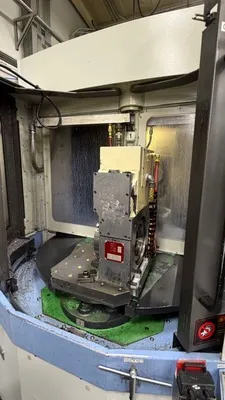

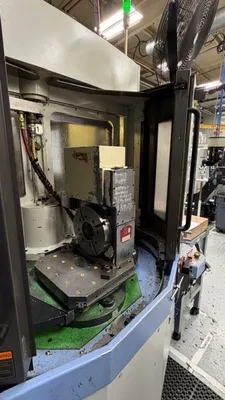

Tsudakoma RB-250K Indexer on Each Pallet
8" Bison Tru Set Chuck on Each Indexer
Tombstones on Both Pallets
Renishaw OMP40 Probe
Renishaw NC4 Laser Tool Setting Probe

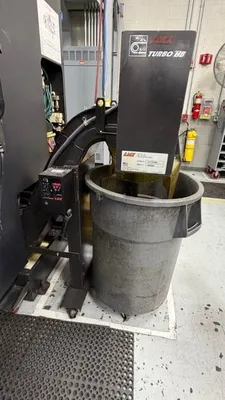

LNS Turbo HB Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
