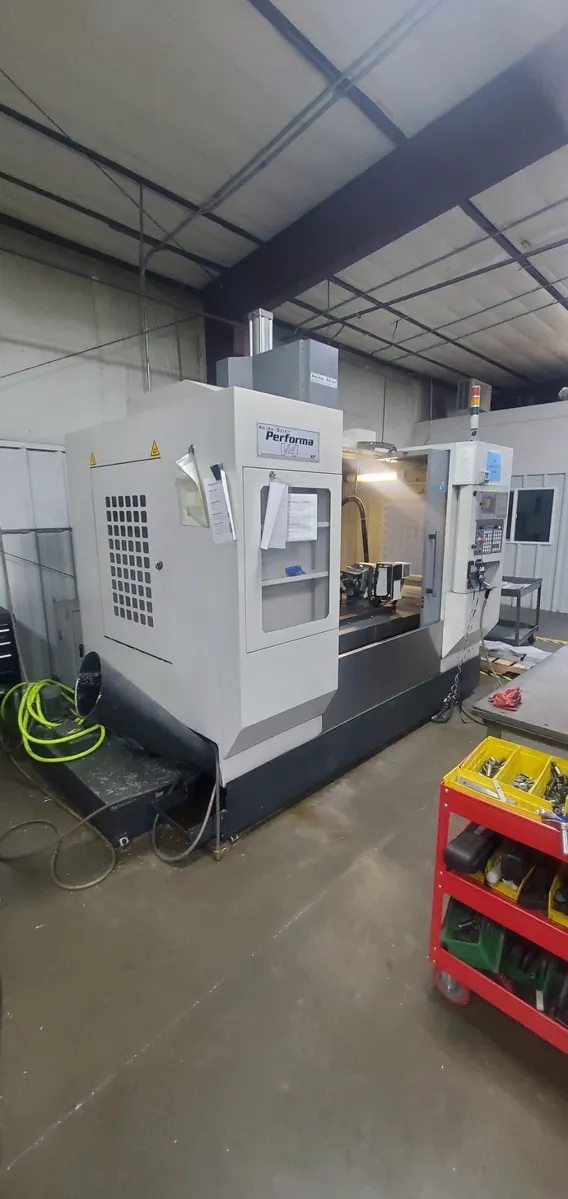

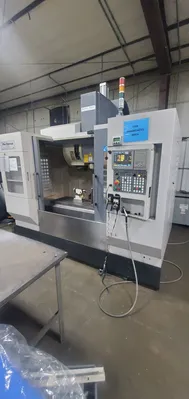

2012 Akira Seiki V4XP Vertical Machining Center

Table Size........................47.2" x 19"
Max. Table Load...................2592 LBS
T-Slots...........................0.7" x 3.15" x 5 Slots
Spindle Nose to Table.............3" - 25"
Spindle Center to Column Cover....21.7"
X-Axis Travel.....................41.3"
Y-Axis Travel.....................19.8"
Z-Axis Travel.....................22"
Spindle Motor.....................35 HP
Spindle Taper.....................BT-40
Spindle Speed.....................12,000 RPM
Rapid Traverse Rate...............1732/1732/984 IPM
Cutting Feed Rate.................472/472/394 IPM
Number of Tools...................28 ATC
Max. Tool Diameter................2.6"
Tool Diameter (w/o Next Tool).....5.1"
Max. Tool Length..................9.8"
Max. Tool Weight..................15 LBS
Tool Change Time..................2.2 Seconds
Machine Weight....................14,400 LBS
