DMC Matrix FM50V Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

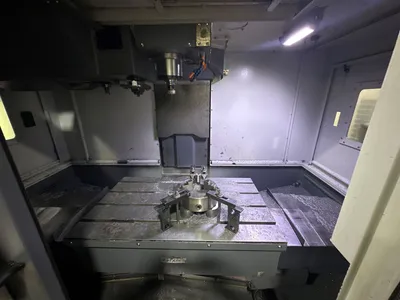

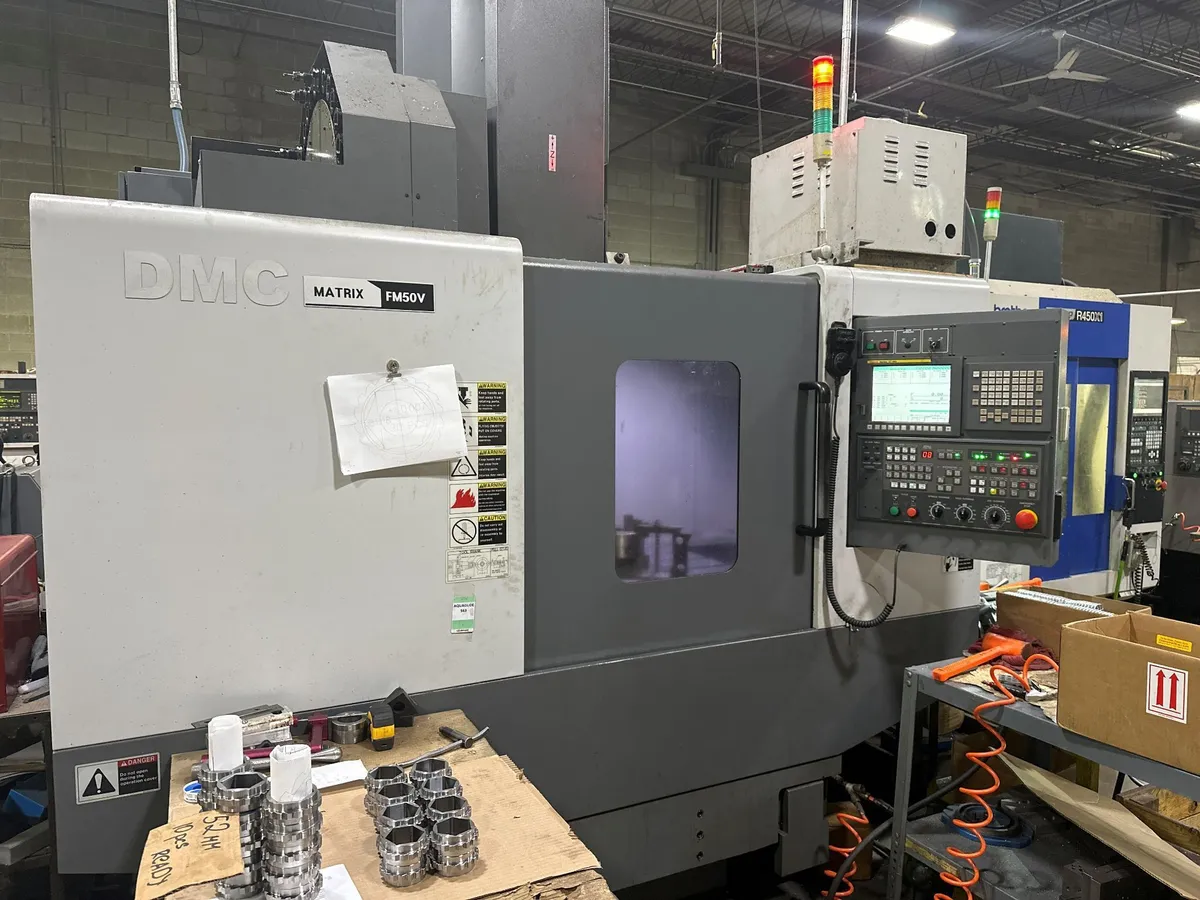

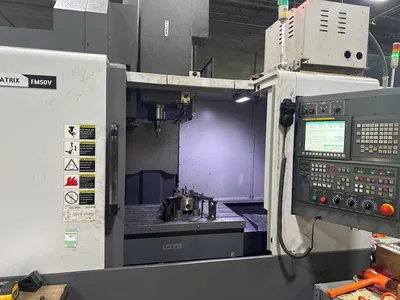

2012 DMC Matrix FM50V Vertical Machining Center with Fanuc Control, 15,000 RPM, CAT-40 Spindle, 30 ATC, Portable MPG, and Chip Conveyor.
Table Size.....................37.4" x 21.65"
Maximum Table Load.............1,323 LBS
X-Axis Travel..................31.49"
Y-Axis Travel..................20.47"
Z-Axis Travel..................20.08"
Spindle Motor..................30 HP
Spindle Taper..................CAT-40
Spindle Speed..................15,000 RPM
Rapid Traverse Rate X & Y......2362 IPM
Rapid Traverse Rate Z..........1417 IPM
Tool Positions.................30 ATC
Change Time Chip to Chip.......4.3 Sec
Change Time Tool to Tool.......1.8 Sec
Approximate Machine Weight.....14,500 LBS

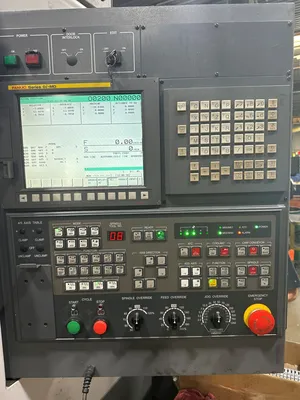

Fanuc Oi-MD CNC Control
15,000 RPM, CAT-40 Spindle
30 Station Side Mount ATC
Portable MPG

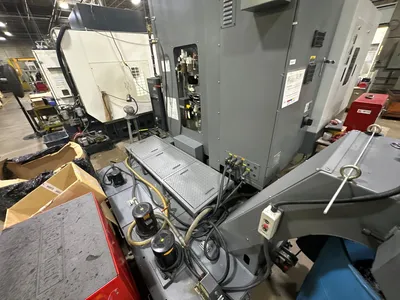

Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
