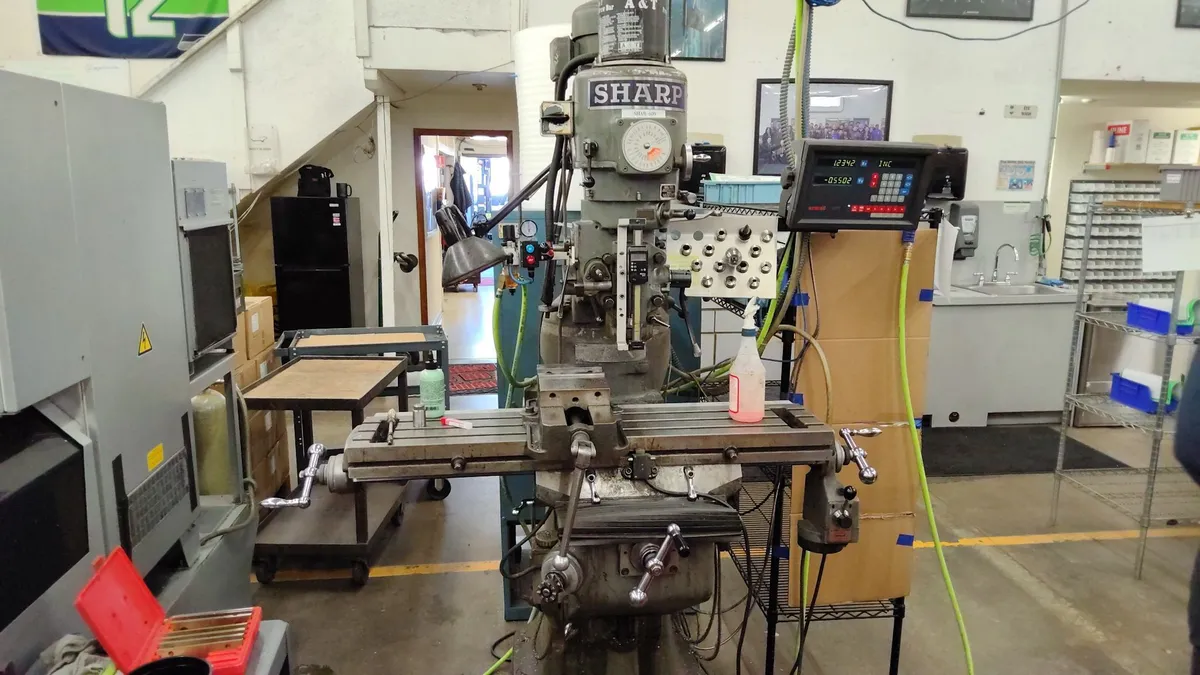

Sharp LMV-42 9" x 42" Vertical Knee Mill

Table...................................9" x 42"
T-slots (No., Size).....................3, 5/8"
Table Travel: X Longitudinal ...........30"
Table Travel: Y Cross...................12"
Quill Travel:; Z Vertical...............5"
Ram Travel..............................12"
Knee Travel – Vertical..................16"
Spindle Center to Column................6.75" – 18.5"
Spindle Nose to Table Top...............2.125" – 18"
Spindle Nose Taper......................R-8
Spindle Variable Speed Range............60 – 4500 RPM
Spindle Motor (220V/440V)...............3 HP
Quill Feed (inch/rev) (3 speeds)........0.0015", 0.003", 0.006"
Quill Diameter..........................3.375"
Head Swivel Angle.......................360°
Head Tilt Angle (L/R)...................45°
Head Tilt Angle (Up/Down)...............45°
Floor Area (W x D x H)..................7' x 6.5' x 6.75'
Approximate Weight......................2,400 LBS
