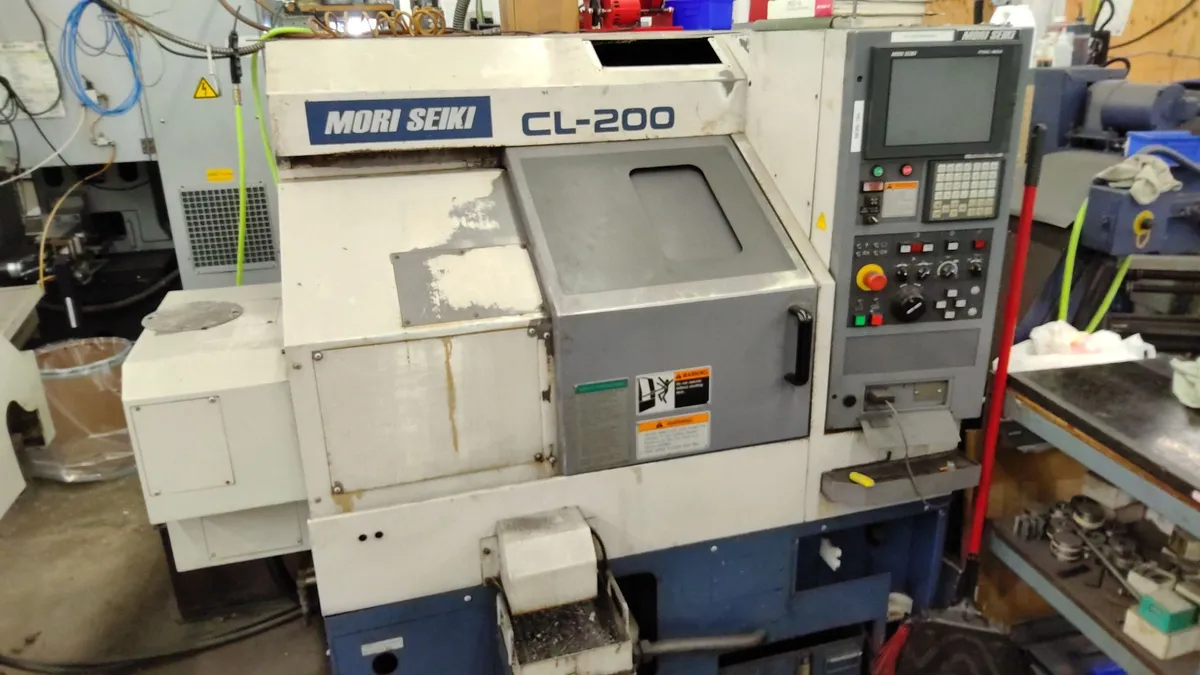

Mori Seiki CL-200B CNC Lathe

Swing Over Bed...............20.3"
Swing Over Slide.............17.9"
Max Turning Diameter.........16.14"
Max Turning Length...........20.9"
X-Axis Travel................9.25"
Z-Axis Travel................22.4"
Spindle Bore.................2.85"
Max Bar Capacity.............2.55"
Spindle Motor................20 HP
Spindle Nose.................A2-6
Spindle Speed................3500 RPM
Rapid Traverse Rates.........1181 IPM
Turret Capacity..............10 Stations
Turret Index Time............0.5 Second
Power Source.................AC 220 V, Three Phase, 60 Hz
Overall Dimensions...........90" x 70" x 80" High
Weight.......................6500 lbs Approx
