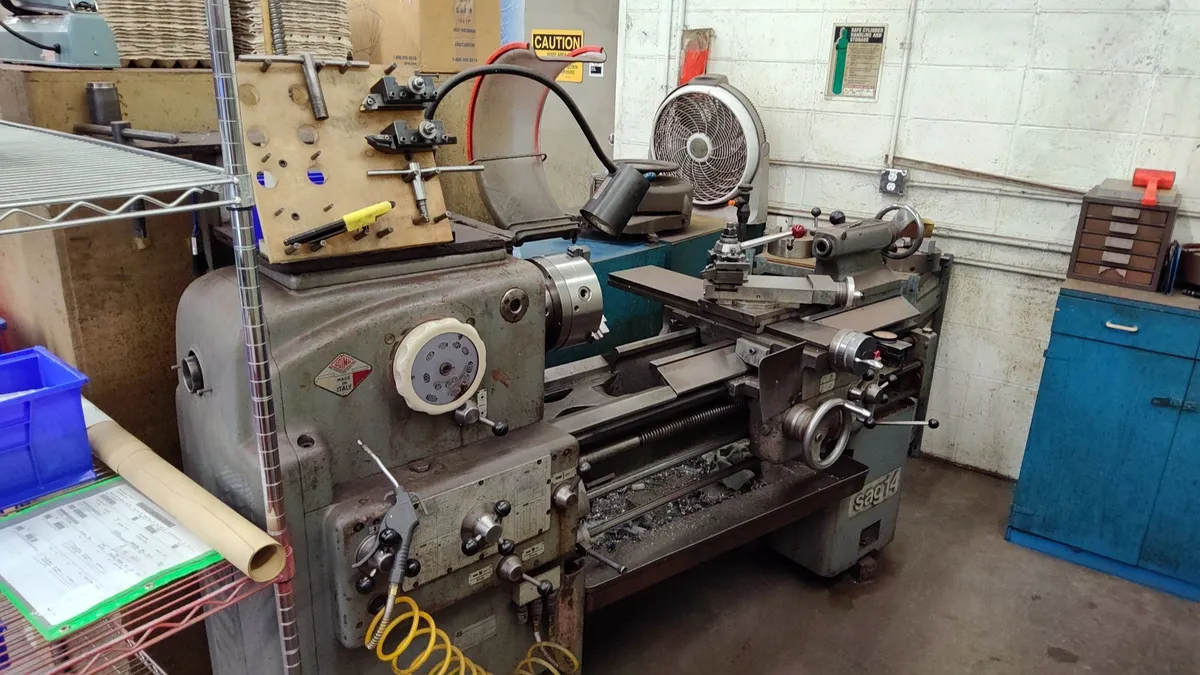

Graziano SAG-14 14" x 40" Engine Lathe
Swing Over Bed.......................14.5"
Swing In Gap.........................20"
Swing Over Cross Slide...............9"
Distance Between Centers.............40"
Spindle Speeds (12)..................40 - 1,500 RPM
Spindle Nose.........................D1-6
Hole Through Spindle.................2"
Cross Slide Travel...................8"
Feeds................................0.0011 - 0.0176 IPR
Inch Threads.........................3 - 46 TPI
Metric Threads.......................0.375 - 5.75 MM
Tailstock Quill Taper................MT-4
Tailstock Quill Travel...............6"
Motor................................5.5 HP
Overall Equipment Dimensions.........108" x 36" x 57"
Overall Equipment Weight.............3,200 LBS
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
