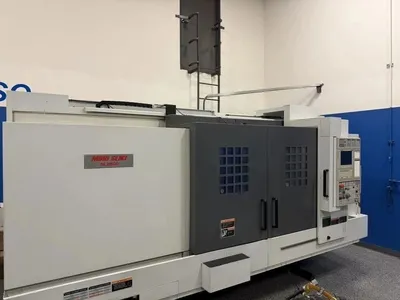

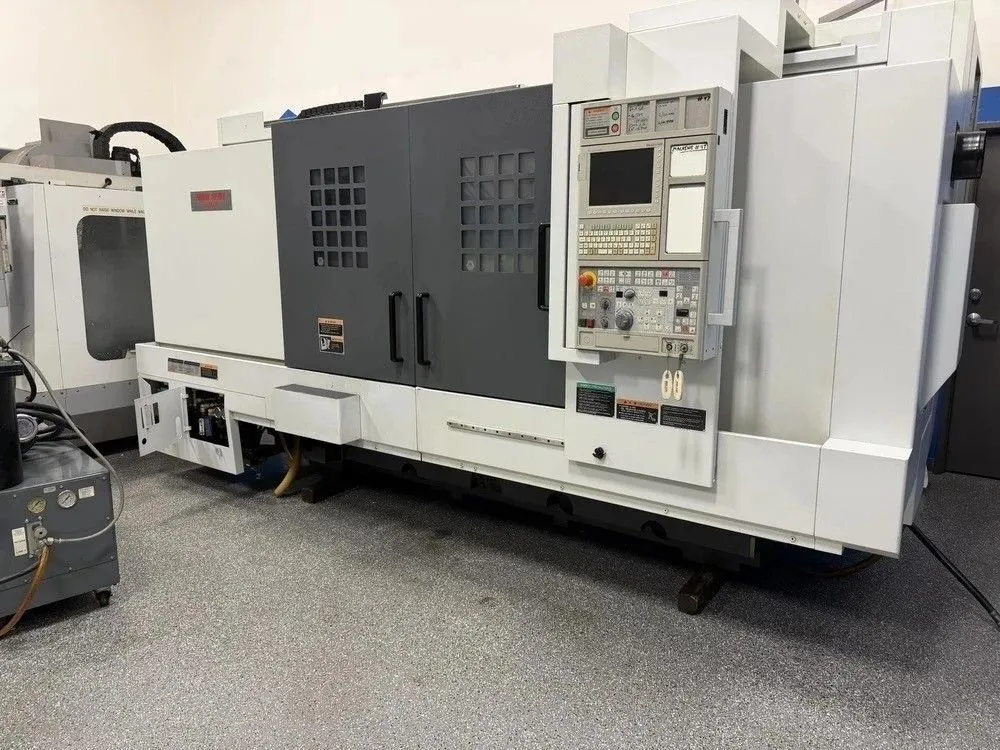

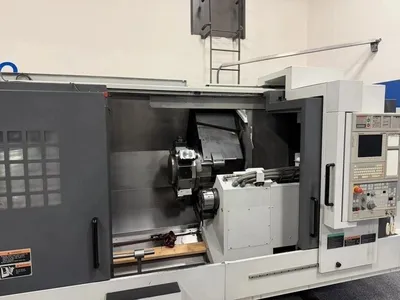

2012 Mori Seiki NL-2500SY/1250
Swing Over Bed.....................29.21"
Turning Diameter...................14"
Turning Length.....................51.1"
Distance Between Spindles..........53"
Chuck Size 1.......................10"
Spindle Nose 1.....................A2-8
Bar Capacity 1.....................3.1"
Spindle Speeds 1...................4,000 RPM
Spindle Horsepower 1...............25 hp
Chuck Size 2.......................6"
Spindle Speeds 2...................6,000 RPM
Spindle Horsepower 2...............15 hp
X1 - Axis Travel...................10.24"
Z1 - Axis Travel...................53"
Y1 - Axis Travel...................4"
Turret Tool Positions..............12 station
Turret Rotary Tool Speeds..........10,000 RPM
Turret Rotary Tool Horse Power.....7.5 HP
Machine Weight.....................16,800 LBS

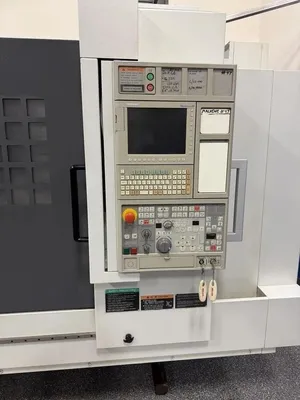

MSX850IV CNC Control
MAPPS Programming
Sub-Spindle

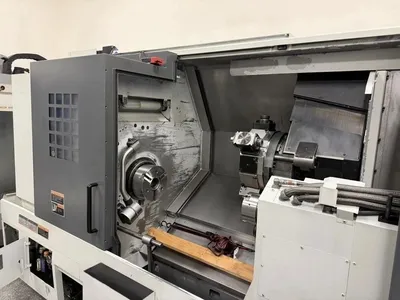

Live Tooling
Y-Axis
10" & 6" 3-Jaw Chucks
Tool Presetter
1250mm Bed Length
Parts Catcher
(2) Live Holders
Static Holders
All Available Manuals
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
