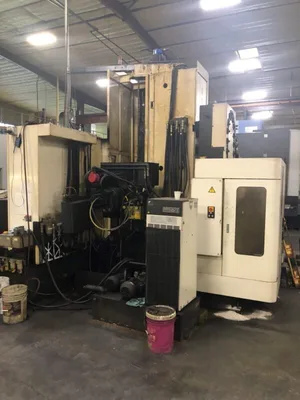

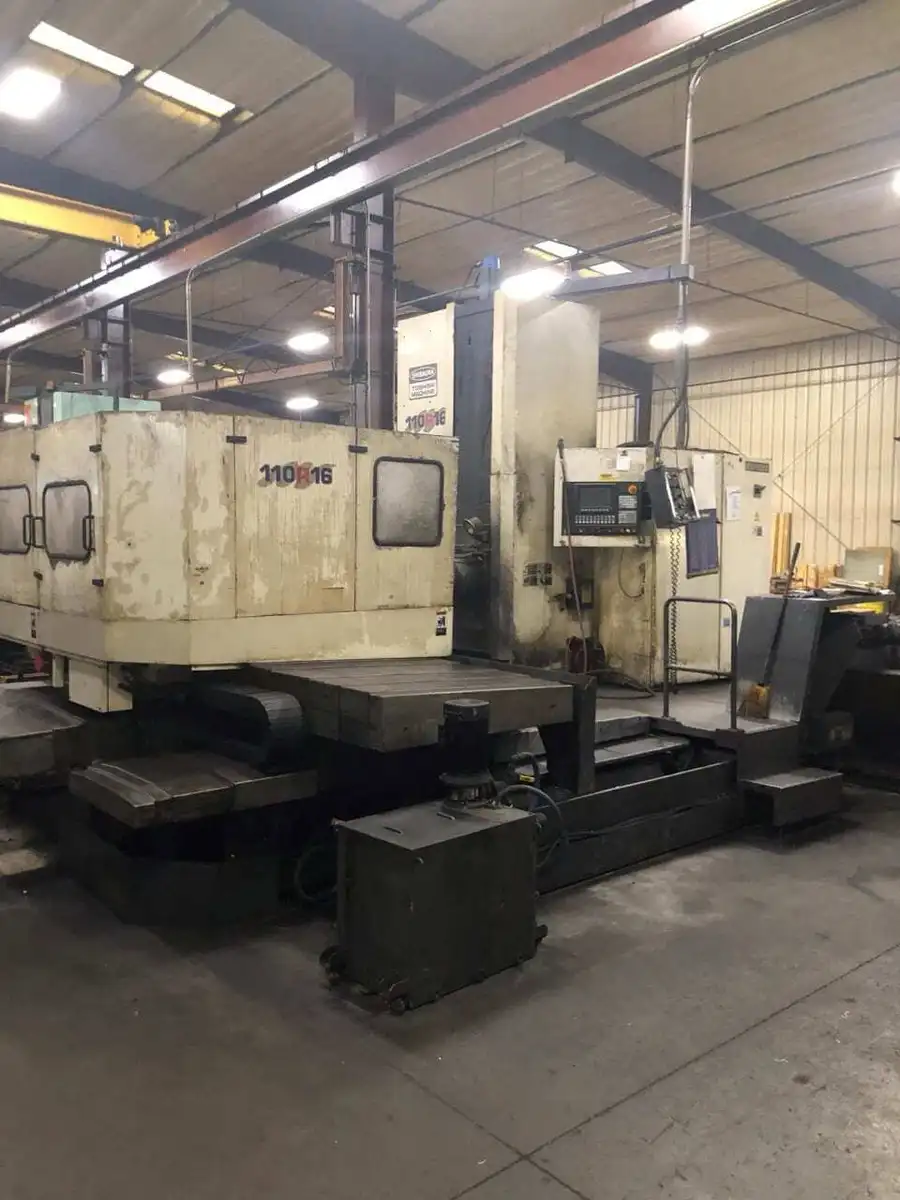

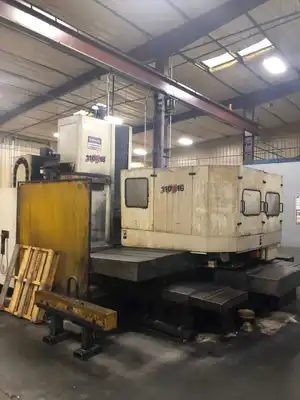

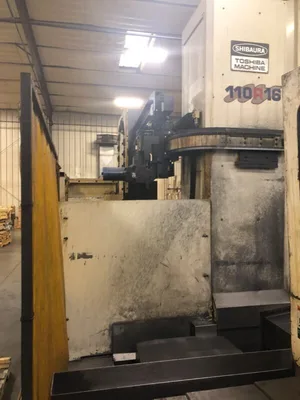

Toshiba BTD-110R16 Horizontal Boring Mill
Have one to sell?
ConditionUsed
1 available
1996 Toshiba BTD-110R16 Horizontal Boring Mill with Tosnuc 888 CNC Control, Full B-Axis Rotary Table, 38 ATC, Marposs Probe, and Chip Conveyor.
Spindle Diameter.....................4.3"
Spindle Motor........................30 HP
Spindle Speeds.......................2500 RPM
Spindle Taper........................50
X-Axis (Cross) Travel................78.74"
Y-Axis (Vertical) Travel.............59"
Z-Axis (Spindle) Travel..............19.71"
W-Axis (Saddle) Travel...............57.08"
Table Size...........................55" x 63"
Table Indexing.......................0.0001 Degree
Table Load Capacity..................13,860 LBS
Number Tools.........................38 Positions
Floor Space..........................202" x 242"
Machine Height.......................157"
Machine Weight.......................61,600 LBS

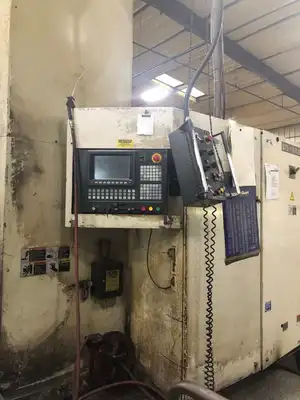

Tosnuc 888 CNC Control
Full B-Axis Rotary Table
38 Position ATC
Marposs Probing System
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
1996 Toshiba BTD-110R16 Horizontal Boring Mill with Tosnuc 888 CNC Control, Full B-Axis Rotary Table, 38 ATC, Marposs Probe, and Chip Conveyor.
Imperial
| Spindle Size | 4.3" |
| X-Horiz Tvl of Table | 78.7" |
| Y-Vert Tvl of Head | 59" |
| Power | 30 hp |
| RPM | 2,500 RPM |
| Table-W | 63" |
| Table-L | 55" |
| Spindle Tvl. | 19.7" |
| Control | CNC (Tosnuc 888) |
| Dimensions | 202" x 242" x 157" |
| Weight | 61,600 LBS |
Spindle Diameter.....................4.3"
Spindle Motor........................30 HP
Spindle Speeds.......................2500 RPM
Spindle Taper........................50
X-Axis (Cross) Travel................78.74"
Y-Axis (Vertical) Travel.............59"
Z-Axis (Spindle) Travel..............19.71"
W-Axis (Saddle) Travel...............57.08"
Table Size...........................55" x 63"
Table Indexing.......................0.0001 Degree
Table Load Capacity..................13,860 LBS
Number Tools.........................38 Positions
Floor Space..........................202" x 242"
Machine Height.......................157"
Machine Weight.......................61,600 LBS
Tosnuc 888 CNC Control
Full B-Axis Rotary Table
38 Position ATC
Marposs Probing System
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
