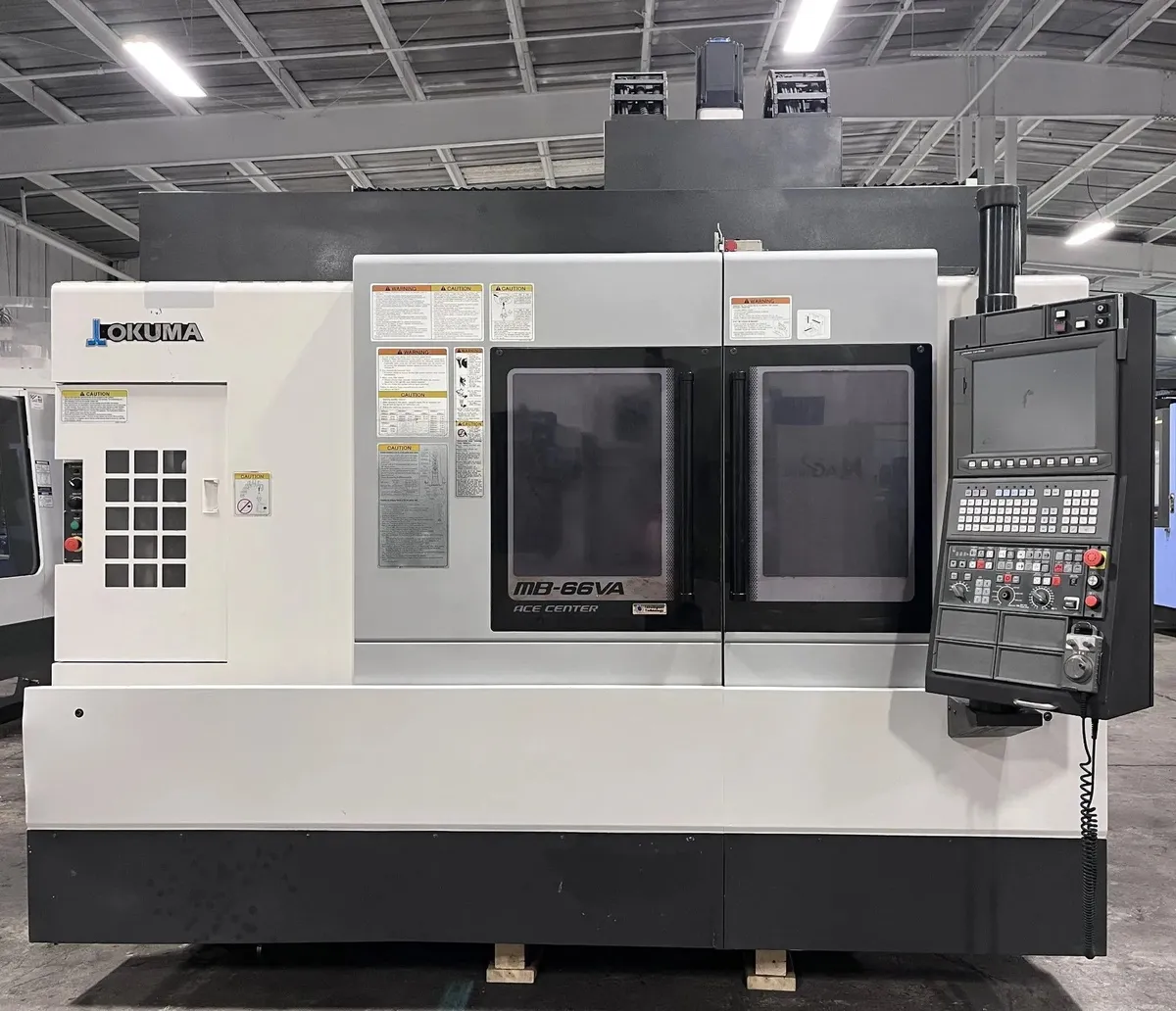

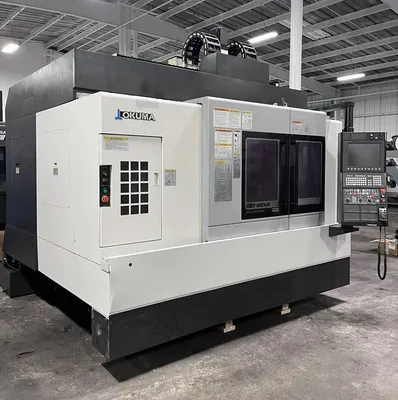

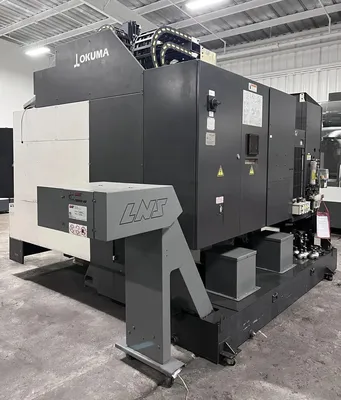

Okuma MB-66VA Vertical Machining Center

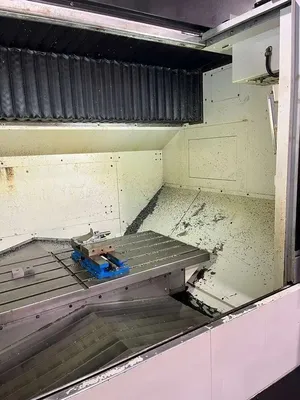

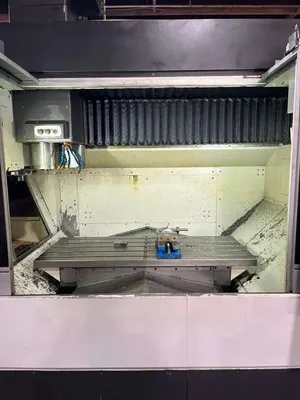

Table Size...........................60.24" x 25.98"
T-Slot no. & Width...................5 x 0.7"
Max Weight on Table..................3300 lbs
Spindle Nose to Table (Min.- Max.)...5.91" – 31.89"
X-Axis...............................59.06"
Y-Axis...............................25.98"
Z-Axis...............................25.98"

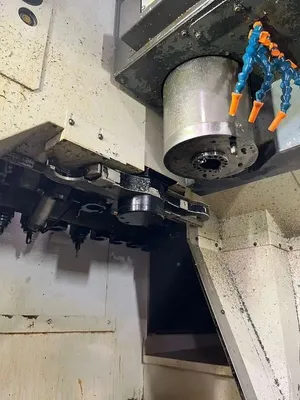

Spindle Power........................30 HP
Taper Size...........................CAT-40 Big Plus
Speed Range..........................15,000 RPM
X, Y Axis Rapid Traverse rates.......1575 IPM
Z Axis Rapid Traverse rates..........1260 IPM
Cutting Feedrate.....................1260 IPM

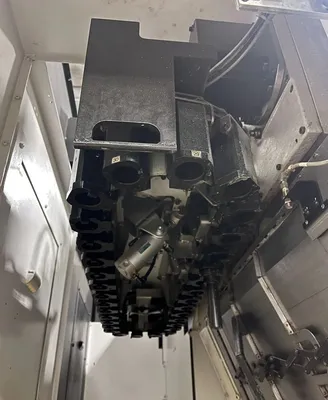

Capacity.............................30 Tools
Max Tool Weight......................33 lbs
Max Tool Length......................11.81"
Max Tool Diameter....................4.92"
Air Required.........................90 psi, 4 scfm

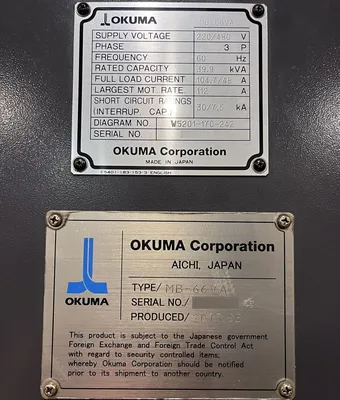

Power................................280-480v / 39.9 kva / 3-Phase
Overall Dimensions...................119" x 131" x 130" High
Weight...............................24,640 lbs. Approx.
