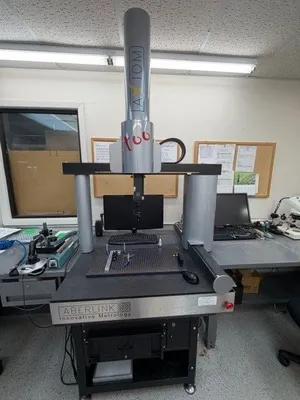

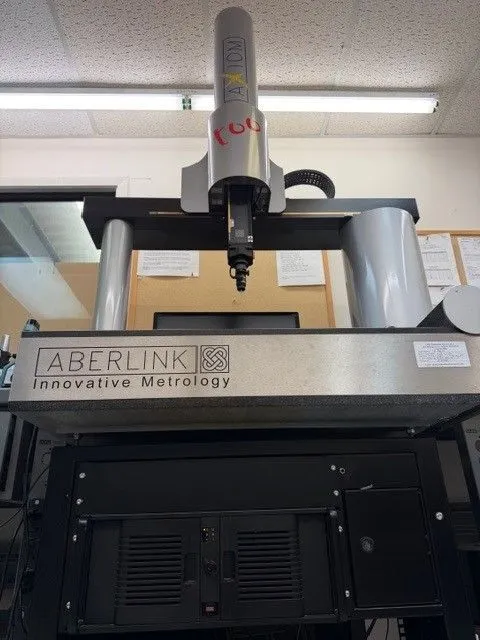

Aberlink Axiom Too

X-Axis Travel................640mm
Y-Axis Travel................600mm
Z-Axis Travel................500mm
Max Measuring Range X........1040mm
Max Measuring Range Y........900mm
Max Measuring Range Z........2320mm
Motion.......................CNC
Structure....................Bridge
Suitable for.................Inspection Room / Production Environment
Drive Type...................Belt
Volumetric Accuracy TP20.....2.4µm + L/250mm
Volumetric Accuracy TP200....2.3µm + L/250mm
Volumetric Accuracy SP25M....2.1µm + L/250mm
Scale Resolution.............0.5µm
Optimum Temp Range...........18 - 22°C**
Operational Temp Range.......5 - 45°C
Table Construction...........Honeycomb aluminium & granite or solid granite
Table Load Capacity..........300kg (Honeycomb) or 500kg (Solid)
Max. Velocity Vector.........600mm/sec
Max. Acceleration Vector.....600mm/sec²
Air Required.................Yes
Air Consumption..............100 l/min (3.53 cfm)
Required Air Pressure........7 bar (100 psi)

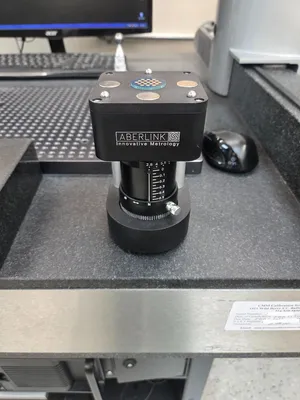

Aberlink Camera Support......Yes

***Maximum Permissible Error MPEE within the thermal limits defined for optimum temperature range.
**Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m
