MAKINO EDNC-43S
Have one to sell?
ConditionUsed
1 available

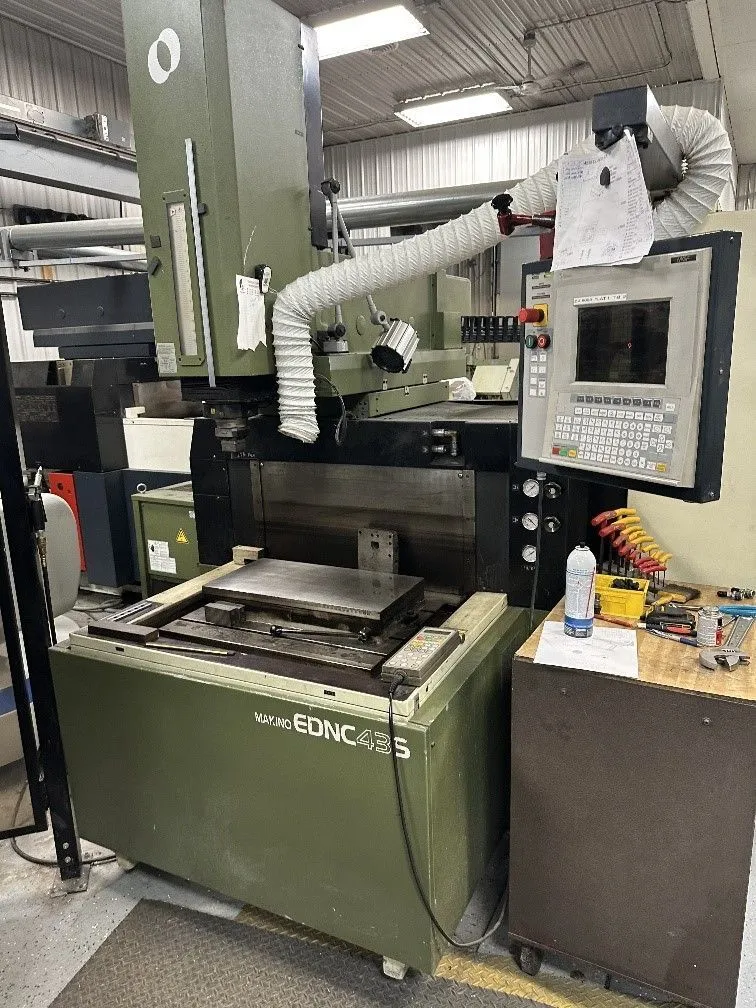

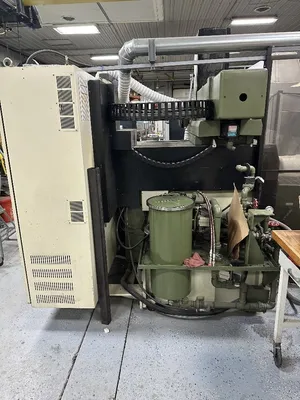

Makino EDNC-43S Sinker EDM with Makino MGF Control
TRAVELS - X AXIS: 17.7" - Y AXIS: 13.8" - Z AXIS: 13.8" - C AXIS: 360.000 DEG
TABLE SIZE: 27.6"X19.7" MAX PART SIZE: 25"L X 17"D X 11"H DIST. WORKTABLE TO PLATEN: 24.4"
MAX. WORKPIECE WEIGHT: 2204 LBS
POWER SUPPLY: 60 AMP, CONTINUOUS MACHINE WEIGHT: 8630 LBS
MAKINO MGF
COLOR CNC CONTROL
5 TOOL ATC LINEAR RACK
CHILLER AUTO FIRE SUSPENSION SYSTEM
EROWA C AXIS
MR TYPE HEAD
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Makino EDNC-43S Sinker EDM with Makino MGF Control
Imperial
| Table Size-W | 27.5" |
| Table Size-L | 19.7" |
| X | 17.7" |
| Y | 13.8" |
| Z | 13.8" |
| Weight | 8630 LBS |
TRAVELS - X AXIS: 17.7" - Y AXIS: 13.8" - Z AXIS: 13.8" - C AXIS: 360.000 DEG
TABLE SIZE: 27.6"X19.7" MAX PART SIZE: 25"L X 17"D X 11"H DIST. WORKTABLE TO PLATEN: 24.4"
MAX. WORKPIECE WEIGHT: 2204 LBS
POWER SUPPLY: 60 AMP, CONTINUOUS MACHINE WEIGHT: 8630 LBS
MAKINO MGF
COLOR CNC CONTROL
5 TOOL ATC LINEAR RACK
CHILLER AUTO FIRE SUSPENSION SYSTEM
EROWA C AXIS
MR TYPE HEAD
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
