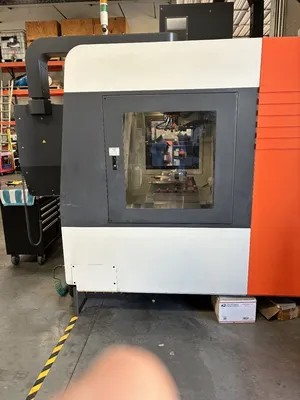

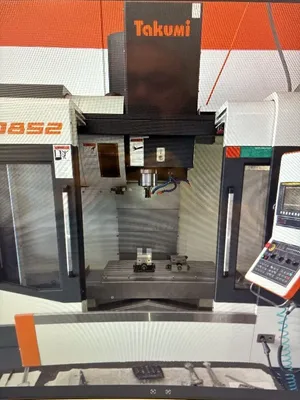

Takumi VC-0852 Vertical Machining Center

Table Dimensions..................39.37" x 20.47"
Max Load..........................1,102 LBS
T-slot............................18 x 100 x 5 mm
Spindle Nose to Table.............4.53" – 28.54"
X-Axis Travel.....................33.86"
Y-Axis Travel.....................20.47"
Z-Axis travel.....................24.02"
Spindle Motor: (cont./30 min).....10.1/20.1 HP
Spindle Taper.....................CAT-40
Spindle Speed.....................12,000 RPM
Spindle Torque....................70.8 ft./lbs
Spindle Type......................Belt
Rapid Traverse: (X/Y/Z)...........1,417/1,417/944 IPM
Cutting Feed Rate.................0.04 – 472.44 IPM
Capacity..........................24 Tools
Max. Tool Diameter................3.15"
Max. Tool Length..................11.81"
Max. Tool Weight..................15.43 LBS
Air Pressure......................5 CFM @ 85-115 PSI
Power Consumption.................30 KVA
Operating Dimensions..............195.15" x 147.36" x 122.01"
Machine Net Weight................12,566 LBS
