Roku-Roku GR-658N CNC High Speed Graphite Machining Center
Have one to sell?
ConditionUsed
1 available

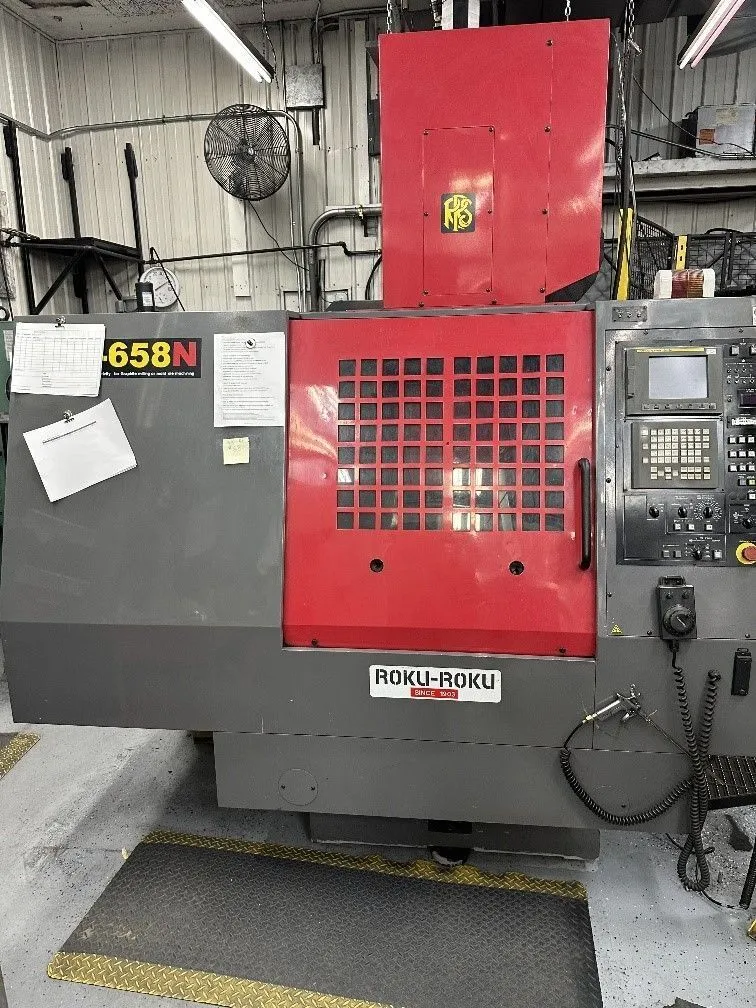

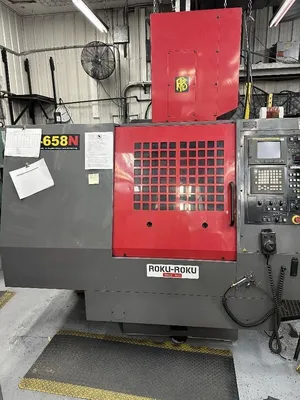

2001 Roku-Roku GR-658N CNC High Speed Graphite Machining Center with Fanuc 16i-M Control, 32,000 RPM Spindle, 12 Station ATC, Dust Collection, and Spindle Chiller.
Table Size..............................29" x 27"
Max. Workpiece Weight...................440 LBS
Table to Spindle Nose Distance..........7.8" - 23.6"
Table Height from Floor.................31.5"
X-Axis Travel...........................23.6"
Y-Axis Travel...........................19.6"
Z-Axis Travel...........................15.7"
Main Motor..............................8.4 HP
Spindle Taper...........................HSK
Spindle Speeds..........................32,000 RPM
Rapid Traverse Speed....................787 IPM
Cutting Speed (Normal Mode).............0.01 – 315 IPM
Cutting Speed (GR Super PC Mode)........787 IPM
Tool Changer Style......................Carousel
Tool Changer Capacity...................12 Tools
Main Unit Dimensions....................90" x 93" x 115"

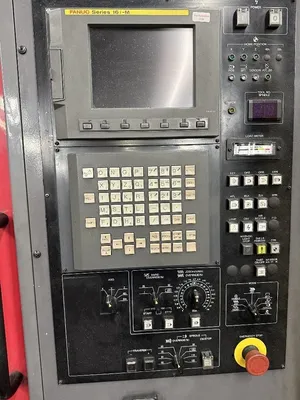

Fanuc 16i-M CNC Control

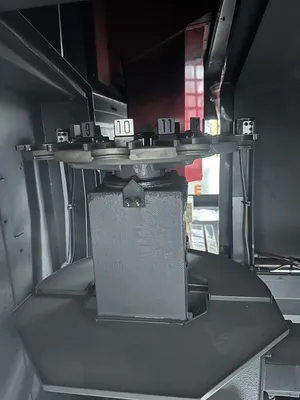

12-Station Automatic Tool Changer
Table Mounted Tool Setter
32,000 RPM Maximum Spindle Speed
Amano PiA Dust Collector
Spindle Chiller
Assorted HSK Tool Holders and Collets
Assorted Manuals and Documentation
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
