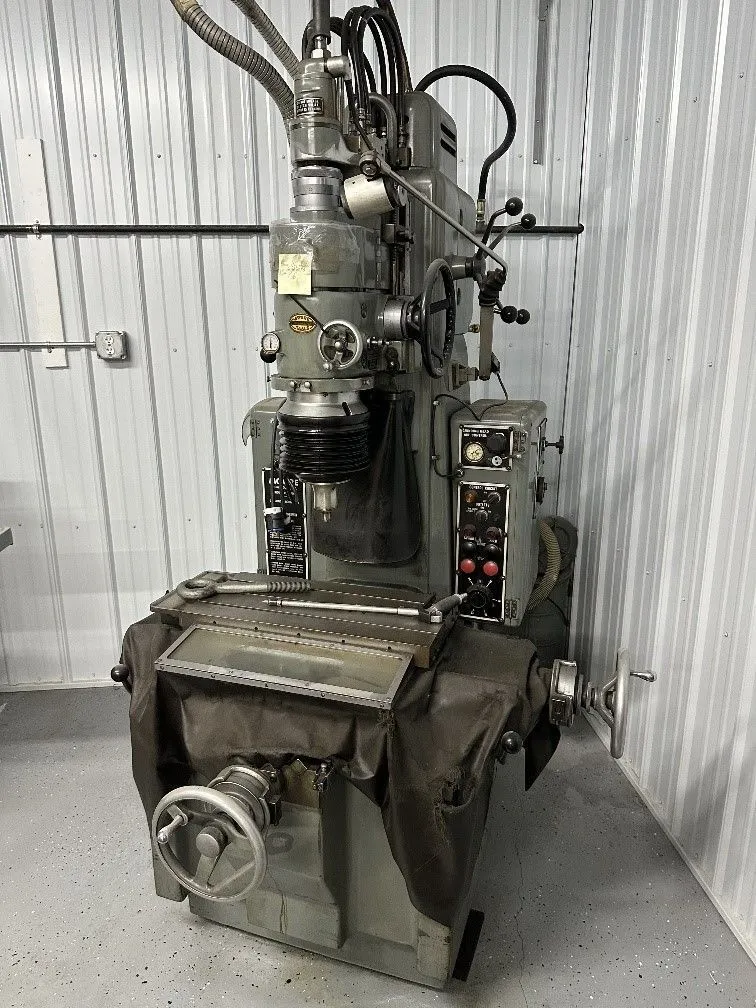

Moore #3 Model G-1830 Jig Grinder
Working Surface of Table.................11" x 24"
Table Travel, Cross & Longitudinal.......11" x 18"
Main Spindle Travel......................3-5/8"
Distance Table Top to Wheel Collet.......2" – 18"
Spindle Housing Vertical Travel..........12-5/8"
Distance Spindle to Column Ways..........10"
Distance Spindle to Column Below Ways....13.5"
Spindle Speeds (Infinite)................40-250 RPM
Spindle Feeds, Air Hydraulic (Infinite)..2-120 Cycles PM
Grinding Wheel Speed Range...............9,000-40,000 RPM
Grinding Capacity with Wheels............1/64" – 5"
Overall Height...........................102"
Approximate Weight.......................4,000 lbs
Moore Dust Collector
Work Light
30,000 RPM Spindle
40,000 RPM Spindle
60,000 RPM Spindle
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
