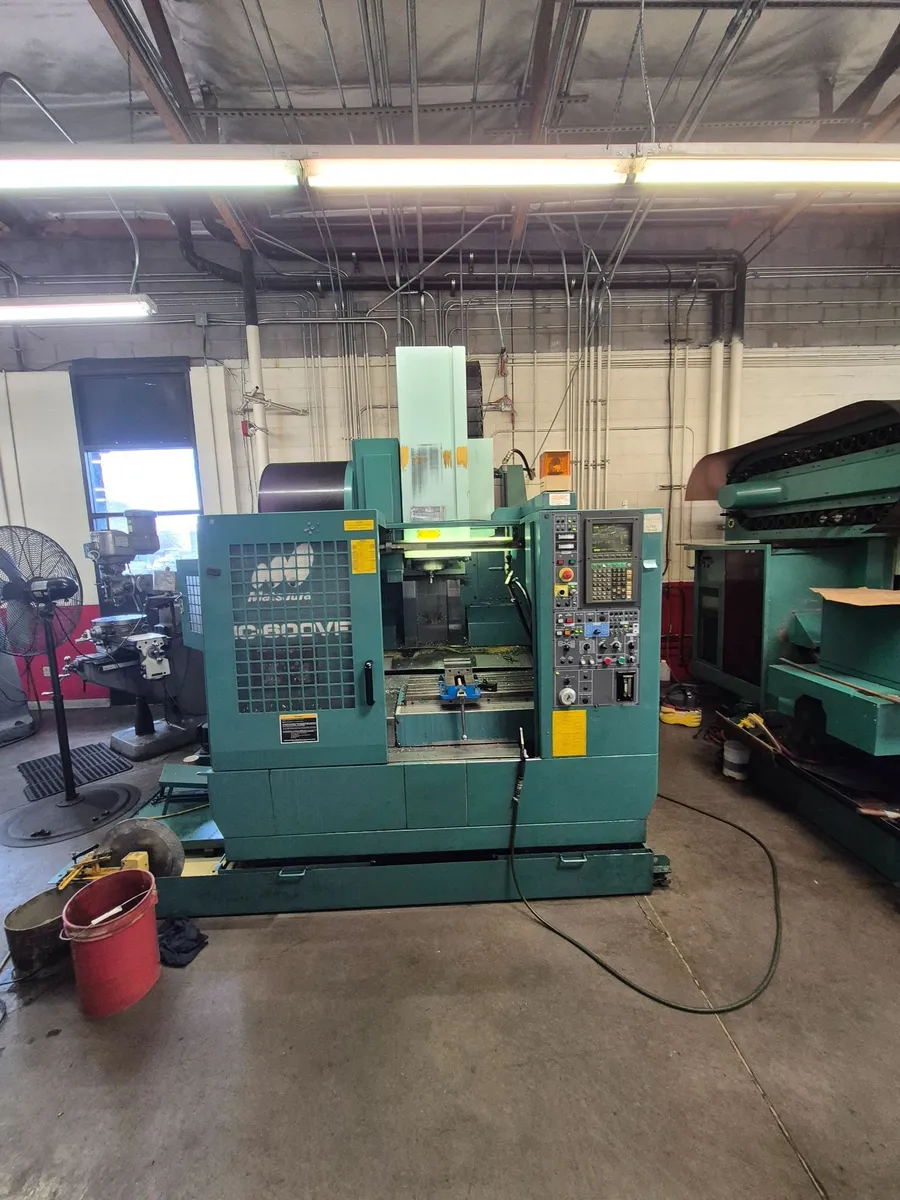

1996 Matsuura MC-600VF with Yasnac I-80 Control, 8,000 RPM, CAT-40 Spindle, and 20 ATC
Table Size...........................15.74" x 34.64"
Table Capacity.......................880 Lbs
Spindle to Table Distance............5.90" - 24.4"
Spindle Center to Column Distance....17.32"
Machine Travels (XYZ)................23.62" x 16.14" x 18.50"
Spindle Drive........................7.5/10 HP
Spindle Taper........................CAT-40
Spindle Speeds.......................8,000 RPM
Rapid Traverse Rate (XYZ)............944.8, 944.8, 708.6 IPM
Maximum Cutting Feed Rate............0 - 157.5 IPM
Number of Tools......................20 ATC
Tool Changer Style...................Twin Arm, Side-Mount
Tool Change Time.....................2 Seconds Tool to Tool
Max Tool Length......................11.81"
Max Tool weight......................22 lbs
Maximum Tool Diameter................3.15"/5.9" (When Empty)
Electrics............................220V/3PH/60HZ
Machine Size.........................98" X 98" X 105"
Machine Weight ......................9,680 Lbs

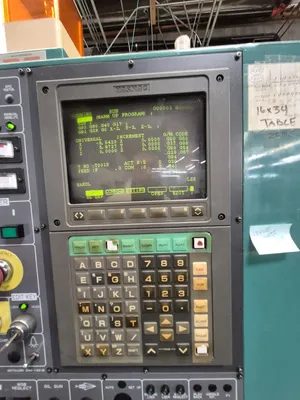

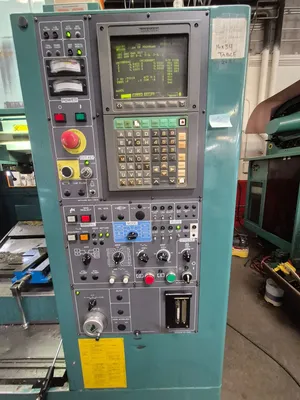

Yasnac I-80 Control

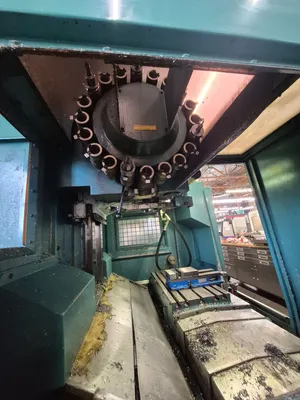

20 ATC
8,000 RPM, CAT-40 Spindle
Coolant System
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
