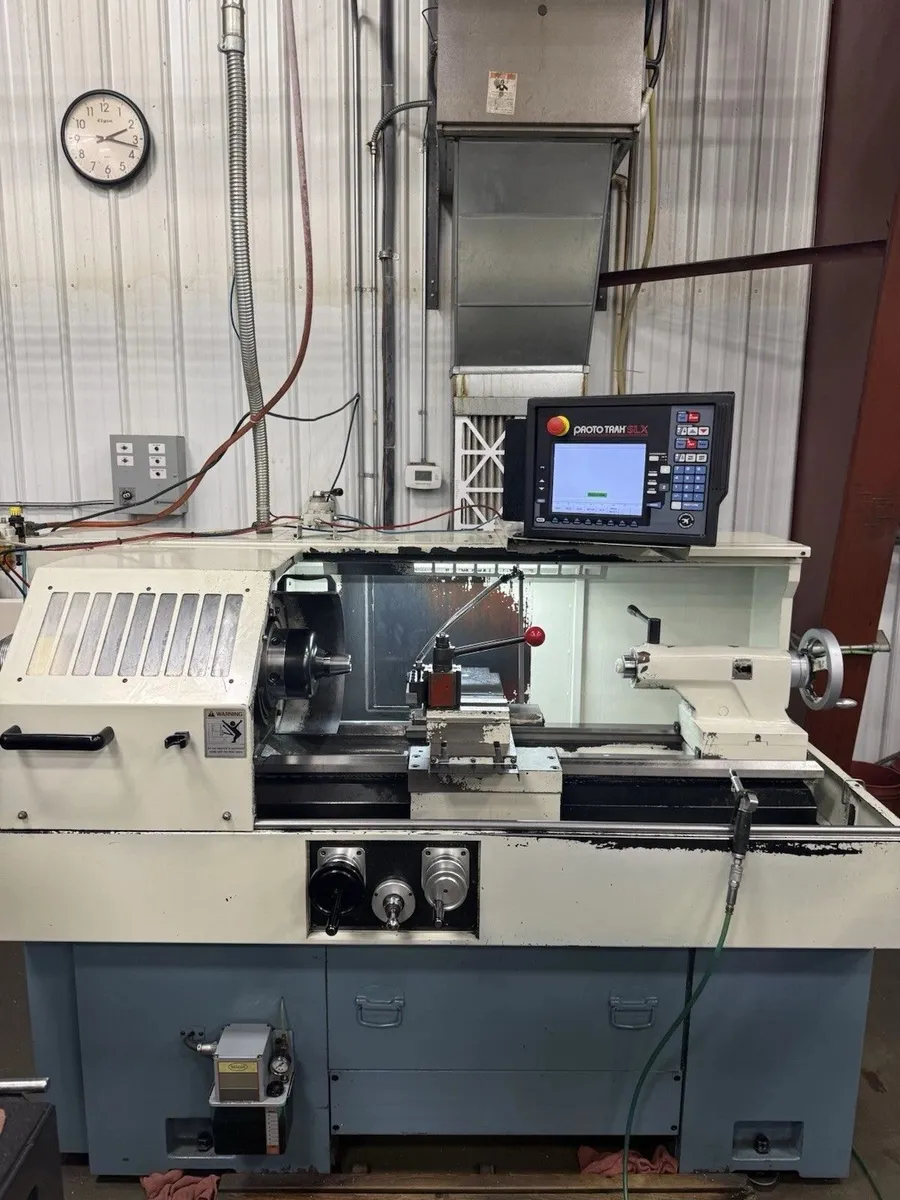

SWI Prototrak 1630SX CNC Lathe

Swing Over Bed.................16"
Swing Over Saddle Wings........16"
Swing Over Cross Alide.........8.6"
Distance Between Centers.......30"
Cross Slide Travel.............8.5"
Height of Centers..............8"
Width Of Bed...................12.6"
Height of Bed..................12.6"
Spindle Motor..................7.5 HP
Spindle Nose (Camlock).........D1-6
Spindle Through Hole...........2.12"
Spindle Taper..................MT-6
Spindle Dia At Front Bearing...3.15"
Spindle Speed..................150-2500 RPM

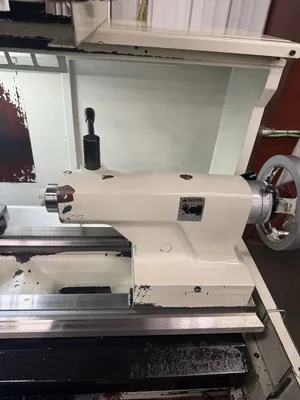

Tailstock Quill Travel.........6.3"
Quill Diameter.................2.36"
Quill Taper Hole...............MT-4
Tool Section Max...............3/4"
Coolant Tank Capacity..........9.3 gal.
Power Requirements, Control....110V; 1P; 8 A
Power Requirements, Machine....220V/3P/60Hz
Amps Full Load Current.........25
Dimensions Shipping............87 x 45 x 67"
Weight Approx..................3,420 lbs.
