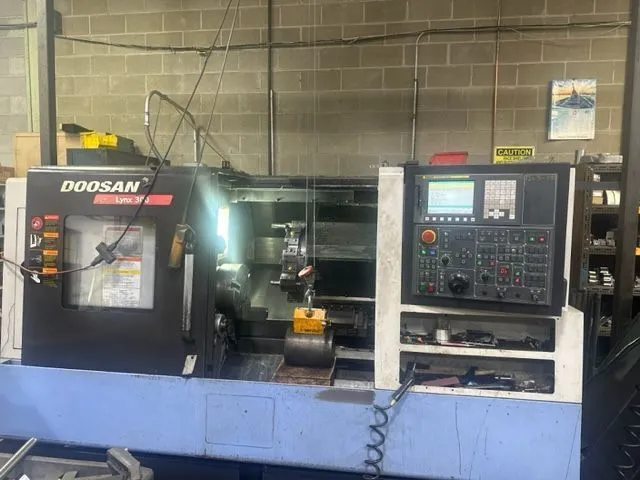

Doosan Lynx 300 CNC Lathe

Max Swing....................25.6"
Max Swing Over Saddle........18.1"
Max Turning Dia..............17.7"
Max Turning Length...........30.1"
X-Axis Travel................10.39"
Z-Axis Travel................31"
Spindle Motor................20 HP
Spindle Nose.................A2-8
Spindle Bore.................3.4"
Bar Capacity.................3"
Spindle Speed................3,500 RPM
Turret Tools.................12
Turret Index Time............0.15 Second
OD Tool Size.................1.0"
Boring Bar Size..............1.6"
Rapid Traverse X Axis........944 IPM
Rapid Traverse Z Axis........1181 IPM
Tailstock Body Travel........30.5"
Tailstock Taper..............MT-4
Tailstock Quill Dia..........3.1"
Tailstock Quill Travel.......4.7"
Dimensions...................154" x 71"
Weight.......................9,000 LBS
