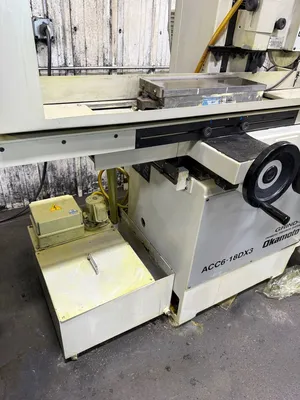

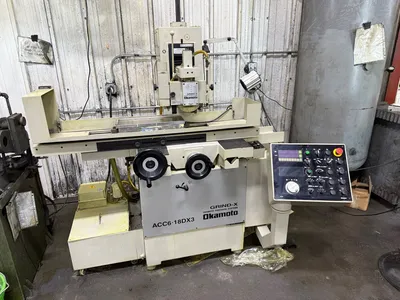

Okamoto ACC-6.18DX3 Fully Automatic Surface Grinder

Maximum Longitudinal Travel..............................20.8"
Maximum Cross Travel.....................................6.9"
Maximum Distance under Wheel (8.0″ to Table Surface).....11.7"
Magnetic Chuck Size (WxL)................................6" x 18"
Table Load Capacity (Includes Chuck Weight)..............264 LBS
Table:
T-Slots (No. x Width)....................................1 x 0.67"
Hydraulic Feed Rate......................................0.33 – 66 ft/min.
Hand Feed per Revolution.................................4.0"
Crossfeed:
Hydraulic Intermittent Crossfeed.........................0.004" – 0.2"
Hydraulic Continuous Crossfeed Rate......................0.5 – 13 .1 ftlmin .
Crossfeed Per Revolution.................................0.100"
Handfeed Dial Graduation.................................0.0004"
Wheelhead:
Automatic Vertical Feed per Table Stroke.................0.00005" – 0.0015"
Rapid Feed Rate..........................................15 .7 IPM
Downfeed Per Revolution..................................0.001", 0.0" / 0", 0.05"
Downfeed Per Graduation..................................0.00001" , 0.0001" , 0.0005"
Grinding Wheel Size (DxWxB)..............................8.0" x 1.0" x 1.25"
Speed....................................................3,420 RPM
Motors:
Grinding Wheel Spindle...................................2 HP
Hydraulic Pump...........................................1 HP
Crossfeed................................................1 HP
Vertical Rapid Feed & Downfeed...........................0.5 HP AC Servo
Floor space required – catalog...........................77" x 51" x 79"
Net weight – catalog.....................................2,420 LBS
