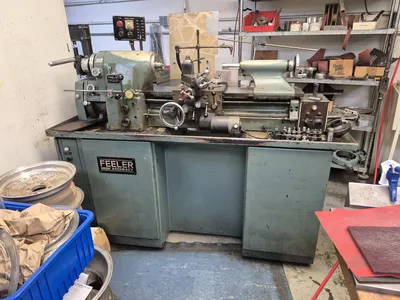

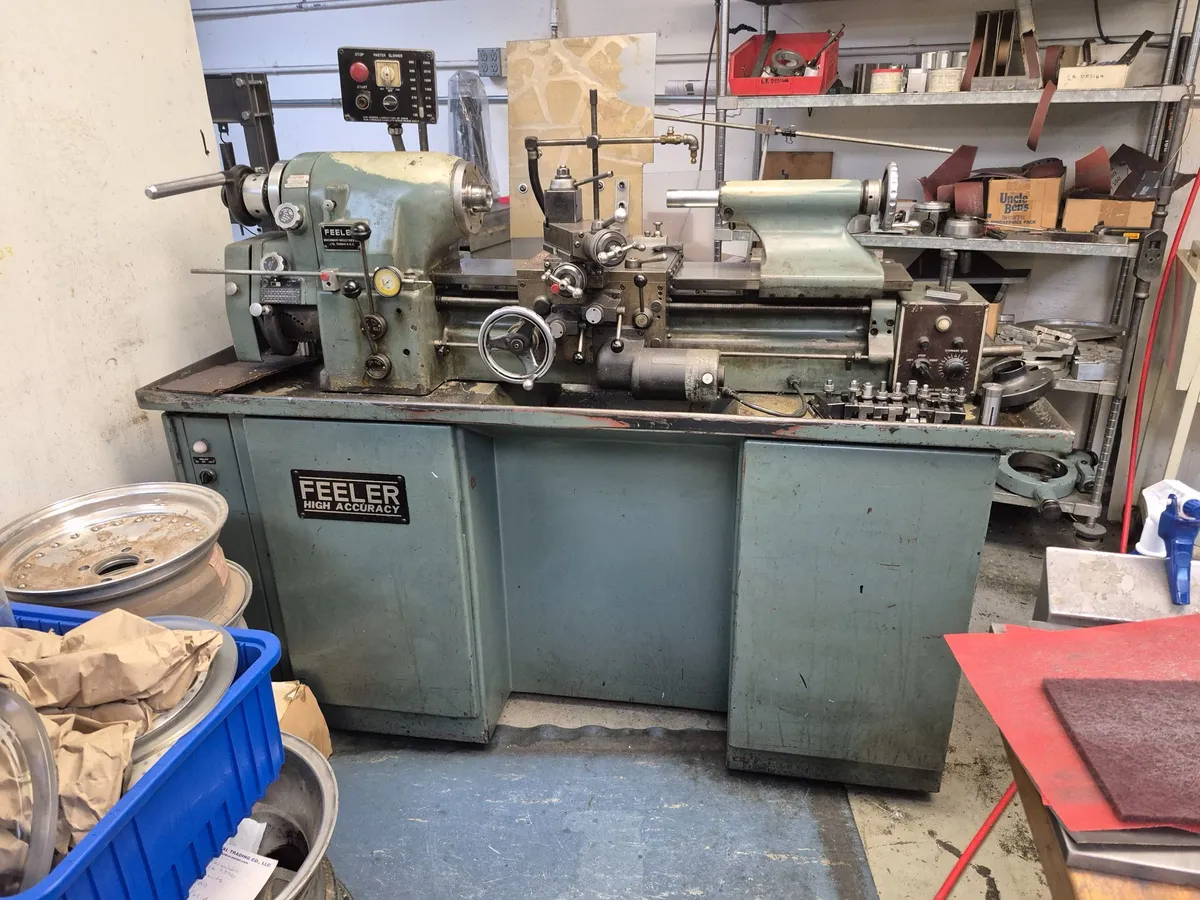

Feeler FTL-618E Manual Precision Lathe

Swing Over Bed...............................11"
Swing Over Cross Slide.......................6-1/2"
Swing Over Carriage..........................9"
Distance Between Centers.....................18"
Hole Thru Spindle............................1-1/4"
Compound Slide Travel........................3"
Carriage Power Feed Range – Variable.........5/16" – 7 IPM
Cross Slide Power Feed Range – Variable......3/16" – 4 IPM
Spindle Speed – Variable.....................135 – 2,955 RPM
Tailstock Spindle Travel.....................3-3/4"
Tailstock Spindle Taper......................No. 2 MT
Lead Screw Diameter..........................1" – 8" Thread
Range of Threads (27 English)................11 – 108 TPI
Electrics....................................240 Volt, 3 Phase, 60 Hz
Dimensions – Approximate.....................70"L-R x 29"F-B x 60"H
Weight- Approximate..........................1,700 Lbs
