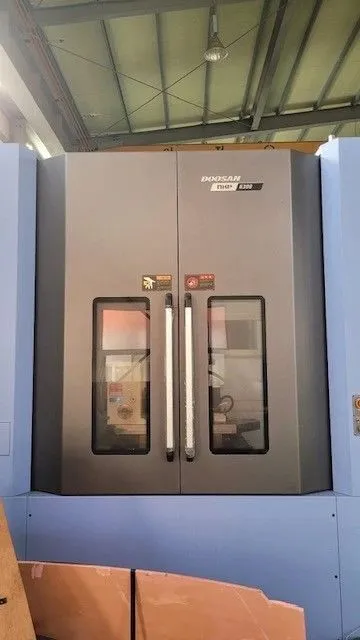

Doosan NHP-6300 4-Axis HMC with 5th Axis Rotary Table
Have one to sell?
ConditionUsed
1 available
2018 Doosan NHP-6300 4-Axis HMC with 5th Axis Rotary Table with Fanuc 31i-B Control, Full 4th Axis, 60 Station ATC, 15,000 ROM, CAT-50 Spindle, and Only 169 Cutting Hours.
Pallet Size.............................24.8" x 24.8"
Number of Pallets.......................2
Pallet Weight Capacity..................3,307 LBS
Pallet Surface to Spindle Center........3.0" ~ 38.4"
Pallet Center To Spindle Gage Line......3.9" ~ 37.4"
Workpiece Dimensions....................43.1 x 53.2 " Ht.
X-Axis Travel...........................41.3"
Y-Axis Travel...........................35.4"
Z-Axis Travel...........................39.4"
B-Axis Travel...........................0.001"
Rapid Traverse Rates....................2,364 IPM
Cutting Feed Rate.......................1,181 IPM
Spindle Speed...........................15,000 RPM
Spindle Taper...........................CAT-50
Number of Ranges........................2
Main Motor..............................45 HP
Automatic Tool Changer..................60
Tool Diameter...........................4.9", 12.6"
Tool Length.............................24.8"
Tool Weight.............................66 LBS
Tool Change Time........................2 SEC
Machine Weight..........................39,700 LBS

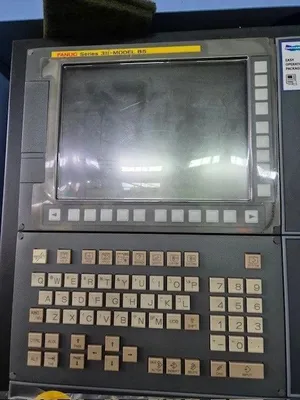

FANUC 31IB MODEL B5 CNC CONTROL
THRU SPINDLE COOLANT

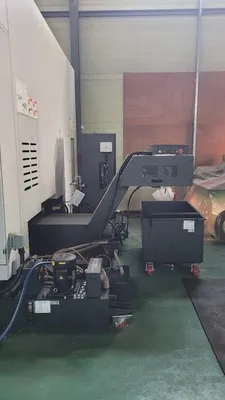

CHIP CONVEYOR
SCALES X, Y, & Z
FLOOD AND FLUSHING COOLANT
PCMCI CARD SLOT
USB PORT

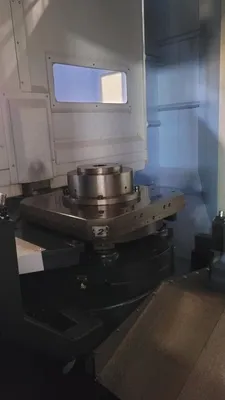

320MM NC ROTARY TABLE
RENISHAW PART PROBE
TOOL LENGTH MEASUREMENT TOUCH PROBE
RIGID TAPPING
CUSTOM MACRO B
EMBEDDED ETHERNET FUNCTION
HOURS:
POWER ON TIME......936
CUTTING TIME.......169
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
