Romi M17 Flat Bed CNC Teach Lathe
Have one to sell?
ConditionUsed
1 available

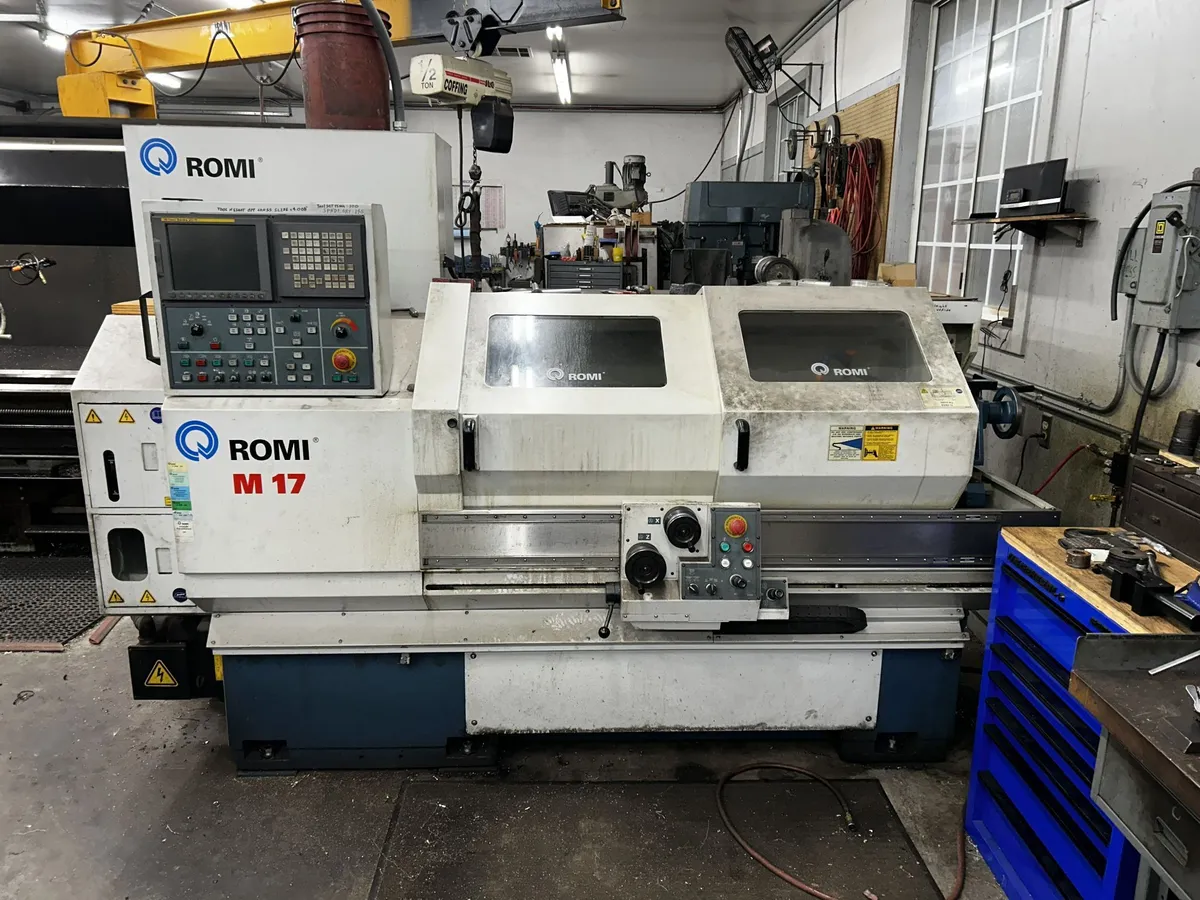

2007 Romi M17 Flat Bed CNC Teach Lathe with Fanuc 21i-T Control, 8" 3-Jaw Chuck, Tailstock, Quick Change Tool Post. Machine only has 410 Cutting Hours.
Swing Over Bed.................16.93"
Swing Over Cross Slide.........8.03"
Maximum Turning Diameter.......16"
Maximum Turning Length.........43"
Distance Between Centers.......43.46"
Spindle Drive Motor............10 HP
Spindle Nose...................A2-5
Spindle Bore...................2.09"
Spindle Speeds.................3,000 RPM
Rapid Traverse X-Axis..........394 IPM
Rapid Traverse Z-Axis..........295 IPM
Tailstock Quill Diameter.......2.36"
Tailstock Quill Travel.........4.7"
Electrics......................480V/3PH/60HZ
Approx. Dimensions.............108" x 50" x 77"
Machine Weight.................5,700 LBS

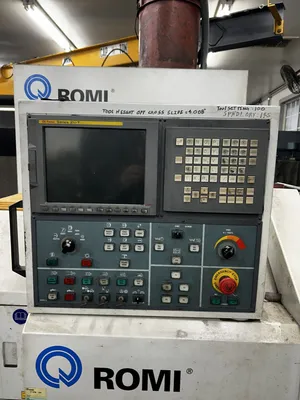

Fanuc 21i-T CNC Control

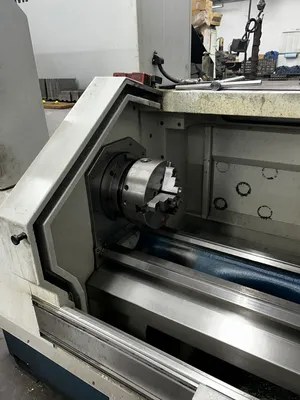

8" 3-Jaw Chuck
Tailstock

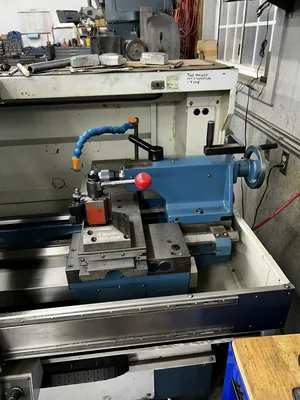

Quick Change Tool Post

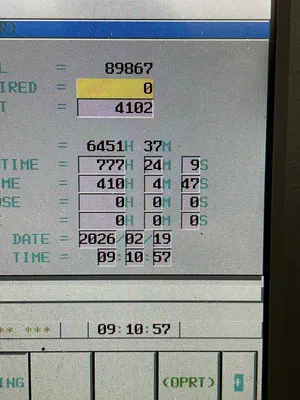

HOURS:
Power on Time.......6,451
Run Time............777
Cutting Time........410
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
