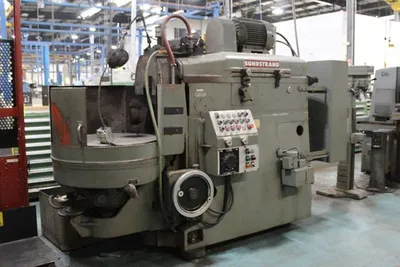

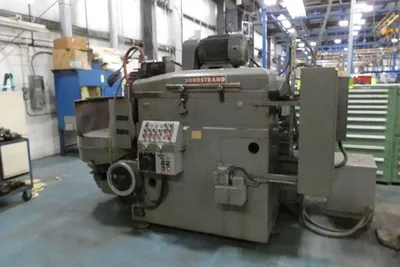

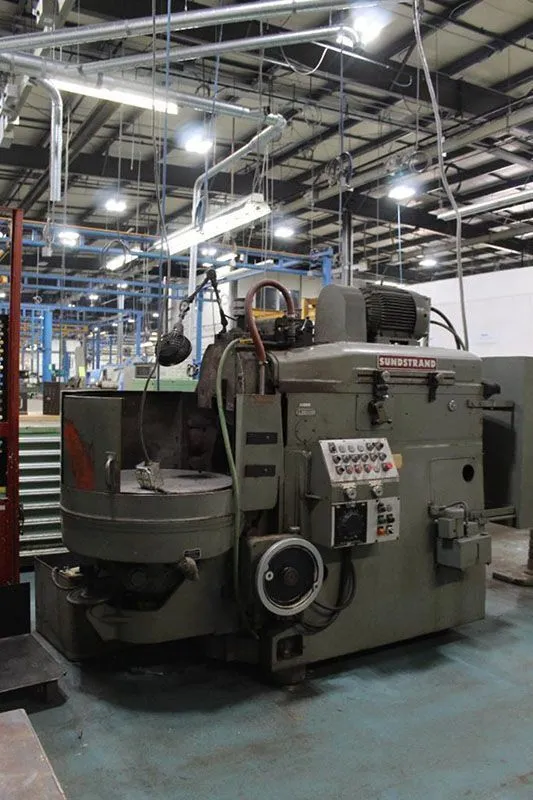

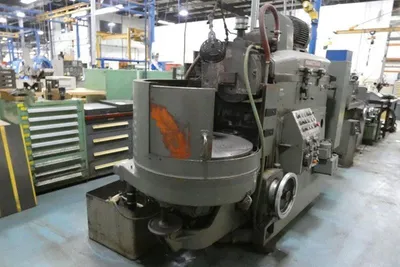

Arter H-30 Horizontal Spindle Rotary Surface Grinder
Have one to sell?
ConditionUsed
1 available
Arter H-30 Horizontal Spindle Rotary Surface Grinder with 30" Chuck, Variable Hold Neutrifier, Hydraulic over the Wheel Dresser, Power Table Elevation, and More
Magnetic Chuck Diameter ........... 30"
Swing Inside Guards - Maximum ..... 33"
Work Height - Maximum ............. 10"
Standard Wheel Size ............... 16" x 2" x 8"
Wheel Head Stroke - Maximum ....... 17"
Main Spindle Motor ................ 10 HP
Vertical Travel of Knee ........... 25"
Angular Tilt of Table ............. +/- 10°
Wheelhead Traverse - Variable ..... 0 - 10 FPM
Table Speed Variable .............. 30 - 125 RPM
Power Feed Adjustable ............. 0.0001" - .0015"
Table Slide Positioning ........... 61 PM

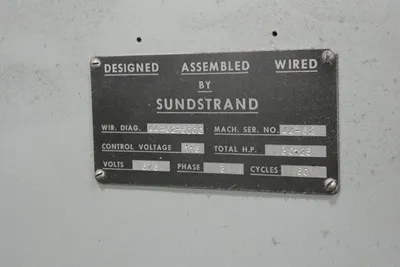

Electrics ......................... 575V/3PH/60HZ
Approx. Floor Space ............... 114"F-B x 68"W x 80"H
Approximate Weight ................ 13,000 Lbs.

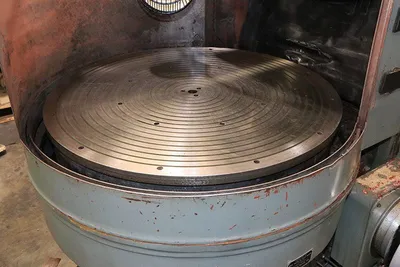

30" Electro-Magnetic Chuck, Concentric Pole Pattern, with Excellent 5/8" Chuck Life

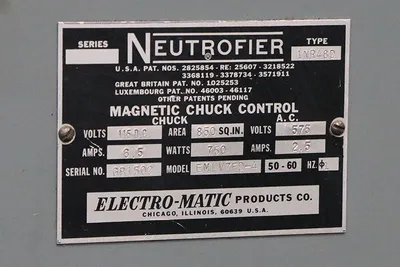

Variable Hold Neutrifier

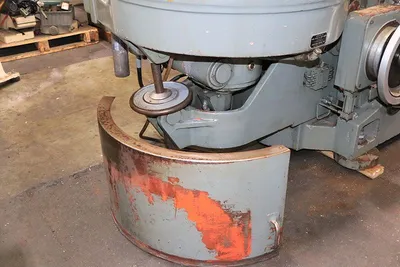

Hydraulic Over the Wheel Dresser, with Micrometer Adjustment
Power Table Elevation Auto Incremental "Upfeed"
Auto Incremental Up-Feed
Angular Table Adjustment

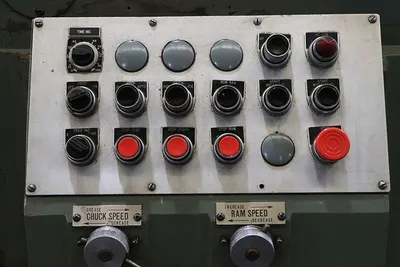

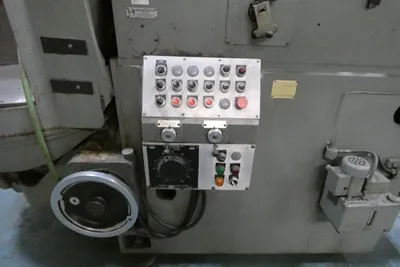

Automatic Cycling, with Indicator Lights

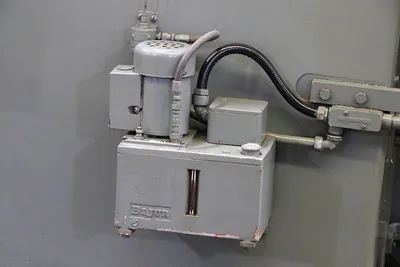

BiJur Trabon Automatic Lubrication System

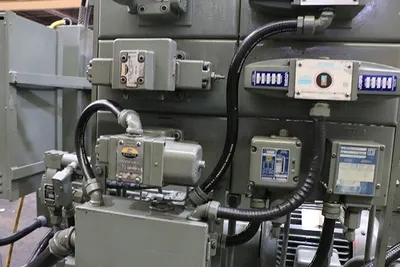

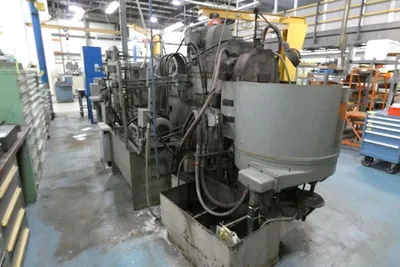

External Hydraulic System

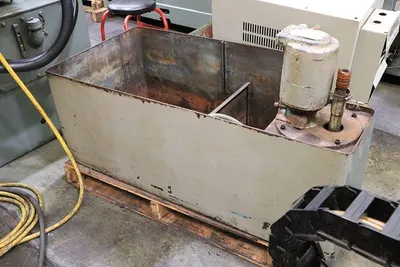

External Coolant Tank, with Pump
**WIRED FOR 575/3/60**
**50 AMP SERVICE REQUIRED**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
