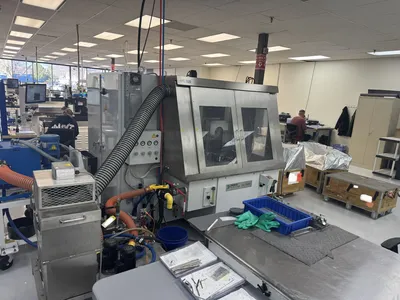

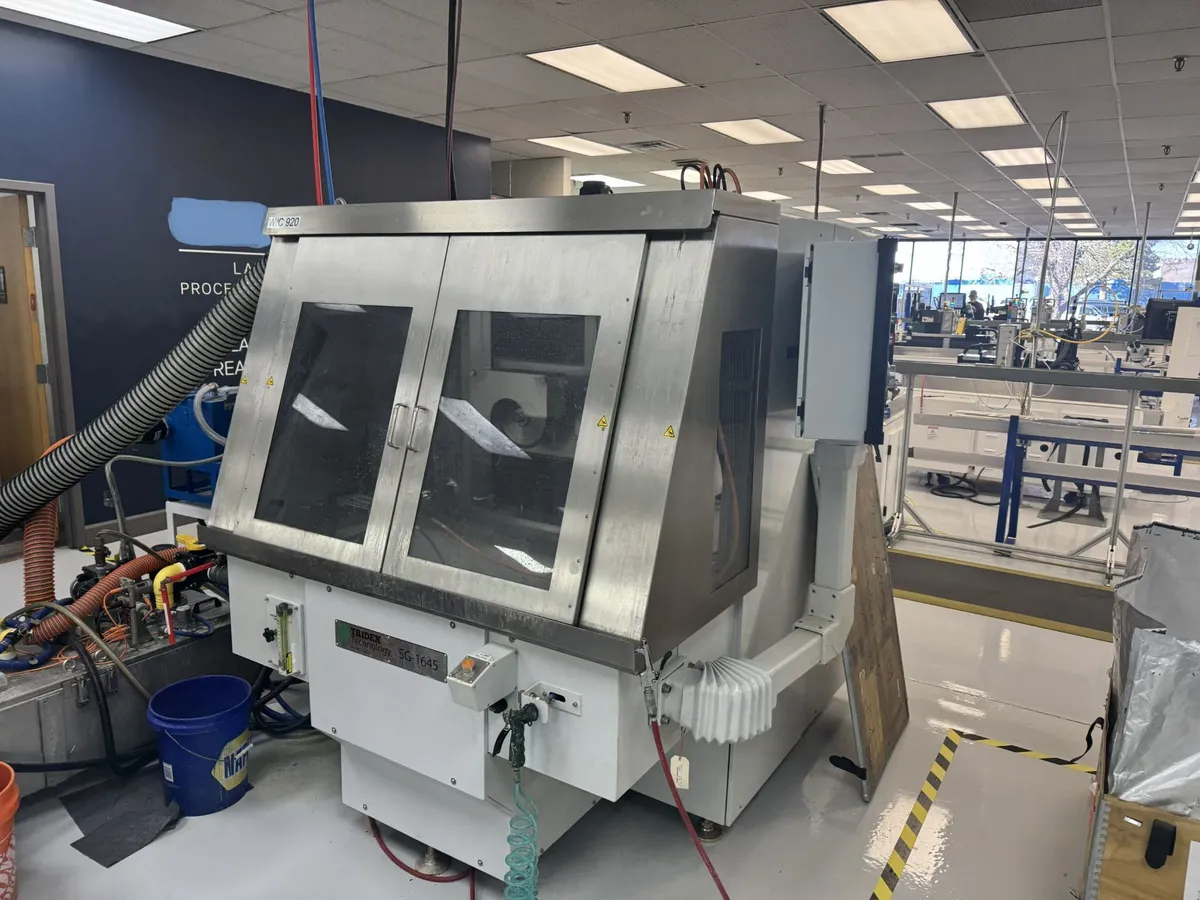

Tridex SG1645 NC/CNC Electrochemical Grinder
Have one to sell?
ConditionUsed
1 available
2023 Tridex SG1645 NC/CNC Electrochemical Grinder with Mitsubishi M70-V Control, 600 AMP Power Upgrade, Precision Spindle Load Meter, Rotary Wheel Dresser, Diamond Dressing Roll, 4th Axis Control, Fixture Plate, & More.
Table Size.............................22.8" x 8.6"
X-Axis Travel..........................18.1"
Y-Axis Travel..........................15"
Z-Axis Travel..........................6.3"
Spindle Motor..........................7.5HP direct drive AC motor
Traverse Speeds........................600 in/min
Positioning Accuracy...................0.0001 / 4"
Repeatability..........................0.00004"
Safety Standards.......................CE & ISO 13849 Safety Standards
Electrolyte Supply Tank................200 liter, 50 gallon stainless
Electrics..............................460/480V/3PH/60HZ
Machine Weight.........................7,900 LBS
Mitsubishi M70-V High Speed CNC Control
Color Screen display
ISO standard G code format
Linear and circular interpolation
Cutter Compensation G41/G42
Workpiece Offsets G54-G59
MPG Handwheel
Standard editing capabilities and data
transfer in text format
OPT-600 AMP DC Power
Precision Spindle Load Meter
Rotary Wheel Dresser
Diamond Dressing Roll
Remote Service Access System
OPT-4th Axis Control
Precision Electrolyte Flow
200mm x 450mm Fixture Plate
Stainless Centrifuge Assy Kit
Electrolyte Management System
CE & ISO 13849 Safety Standards
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
