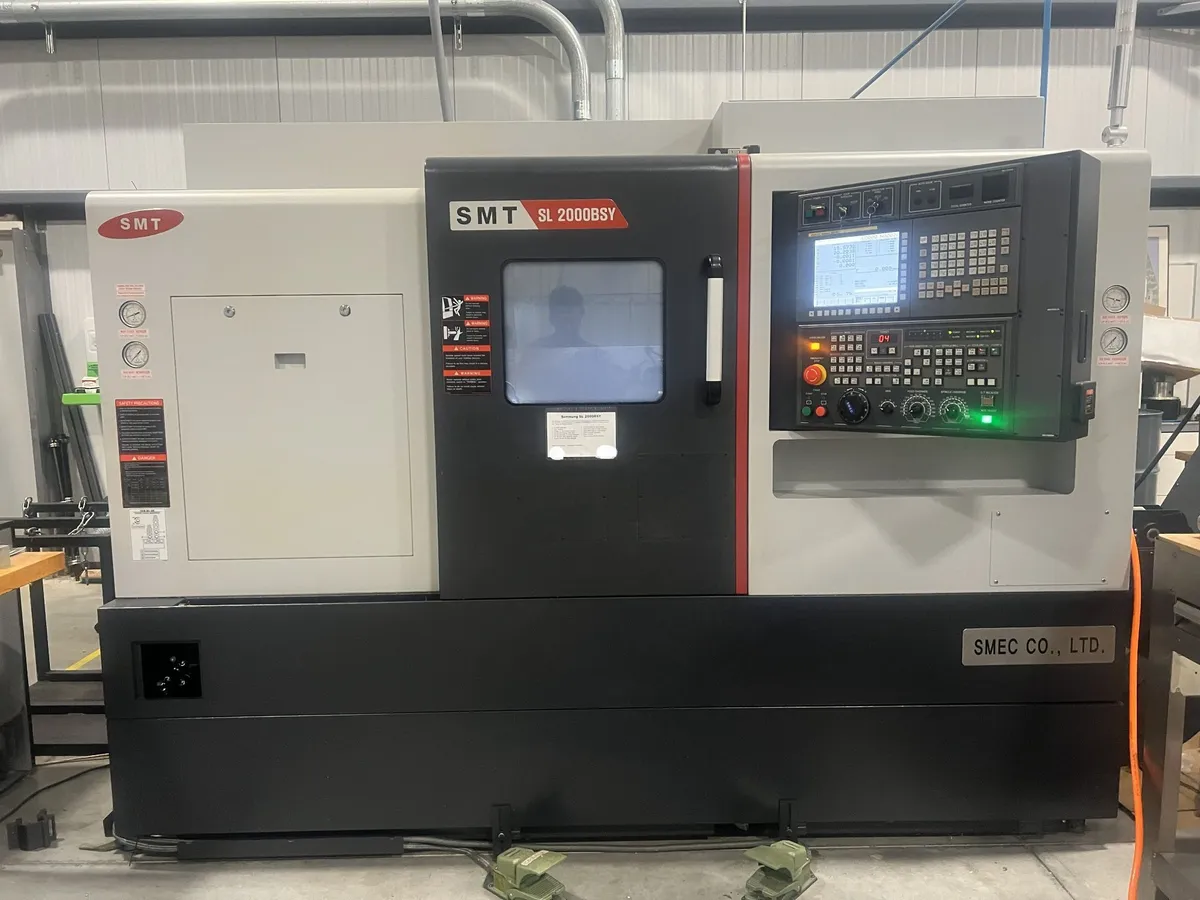

Samsung SL2000BSY

SWING OVER BED.................25.6"
SWING OVER CROSS SLIDE.........21.3"
MAX CUTTING DIAMETER...........15.55"
MAX CUTTING LENGTH.............17.72"
X-AXIS TRAVEL..................9.25"
Y-AXIS.........................+/-2.5"
Y-AXIS TRAVEL..................4.13"
Z-AXIS TRAVEL..................22.83"
C-AXIS INDEXING................0.001 DEGREES
CHUCK SIZE.....................8"
BAR CAPACITY...................2.67"
SPINDLE BORE...................2.99"
SPINDLE NOSE...................A2-6
SPINDLE MOTOR..................25 HP
SPINDLE SPEED..................4,500 RPM
RAPID TRAVERSE RATE-X-AXIS.....945 in/min.
RAPID TRAVERSE RATE-Y-AXIS.....394 in/min.
RAPID TRAVERSE RATE-Z-AXIS.....1,181 in/min.
SUB SPINDLE-CHUCK SIZE.........6"
SUB SPINDLE-SPINDLE MOTOR......12 HP
SUB SPINDLE-SPINDLE SPEED......6,000 RPM
TURRET CAPACITY................12
