Mazak Vortex e1060-V/8 5-Axis Machining Center
Have one to sell?
ConditionUsed
1 available
2014 Mazak Vortex e1060-V/8 5-Axis Machining Center with Matric 2 Control, 2-pallets, 120 ATC, 1000 PSI TSC, Renishaw NC4 ATLM and OMP60 Probe.
X-AXIS TRAVEL......................73.82"
Y-AXIS TRAVEL......................41.73"
Z-AXIS TRAVEL......................52.95"
B-AXIS, 150 DEGREE (CONTOURING)....-30 DEG. TO 120 DEG.
C–AXIS INDEXING....................0.001 DEG.
PALLETS (2)........................39.4" X 39.4"
WORK PIECE DIMENSIONS..............49.21" X 49.21"
WEIGHT CAPACITY....................4784 POUNDS
MILLING SPINDLE SPEED..............10,000 RPM / 2 WINDINGS
SPINDLE TAPER......................CAT-50
HORSEPOWER.........................50 INT. / 40 CONT.
TOOL CHANGER CAPACITY..............120 ATC
TOOL DIAMETER......................5.31" / 10.24"
TOOL LENGTH........................19.69"
TOOL WEIGHT........................66 POUNDS
RAPID TRAVERSE X, Y, Z AXIS........1653 IPM
B-AXIS RAPIDS......................30 RPM
C-AXIS RAPIDS......................25 RPM
MACHINE WEIGHT.....................85,800 POUNDS

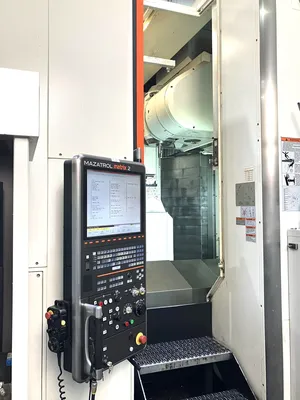

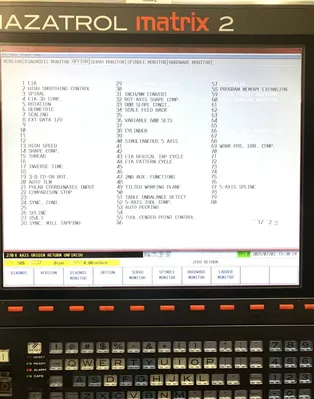

MAZATROL MATRIX 2 CNC CONVERSATIONAL CONTROL W / 15" DISPLAY
120-STATION AUTOMATIC TOOL CHANGER
2-STATION AUTOMATIC PALLET CHANGER

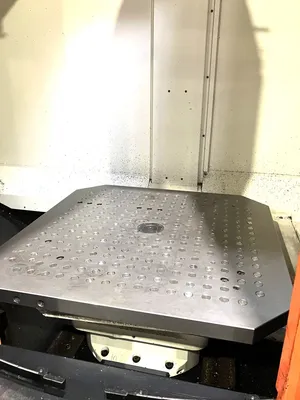

(2) 39" SQUARE PALLETS
1000 PSI HIGH PRESSURE COOLANT THROUGH SPINDLE W / MAZAK SUPERFLOW V8M PUMP
MANUAL PULSE GENERATOR
AUTOMATIC TOOL EYE
HEIDENHEIN LINEAR SCALES X, Y, Z
RENISHAW NC4 LASER TOOL MEASUREMENT
RENISHAW H/V OMP60 PROBE
CONSEP CHIP CONVEYOR SYSTEM
COOLANT WASHDOWN AT OPERATOR AND PALLET LOAD STATIONS
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
