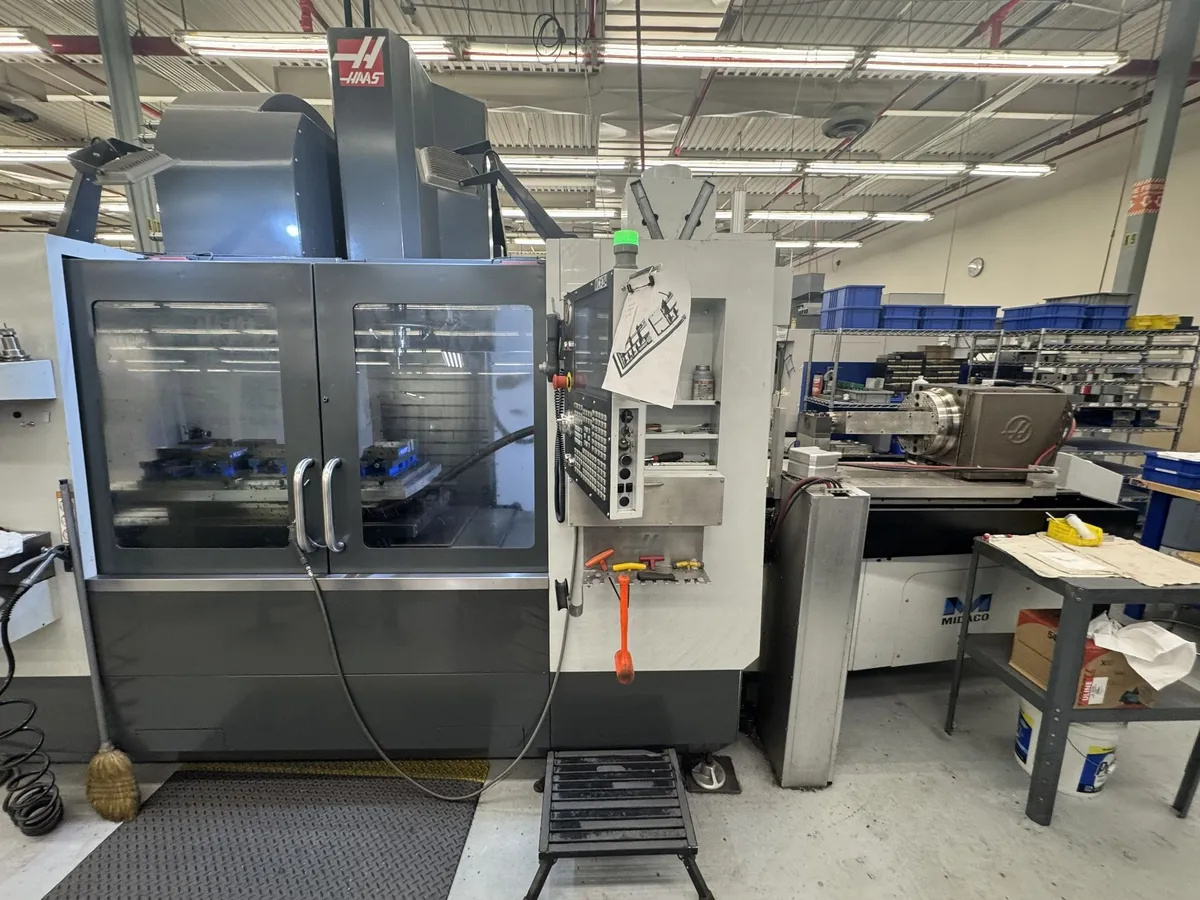

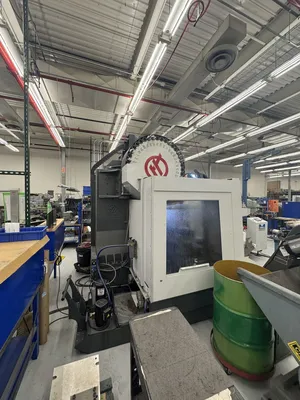

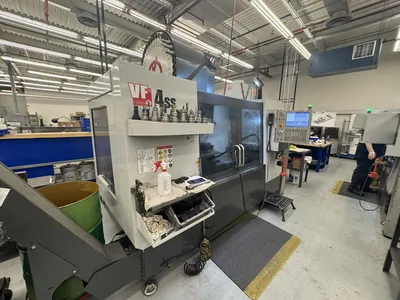

Haas VF-4SS with Midaco Pallet Changer and 4th Axis Rotary Table
Have one to sell?
ConditionUsed
1 available
2017 Haas VF-4SS with Midaco Pallet Changer and 4th Axis Rotary Table with 15,000 RPM Spindle, 40 ATC, 1,000 PSI TSC, Renishaw Probe, High Speed Machining, High Intensity Lighting, and Multi Auger Chip Removal with Hennig Conveyor
Table Size.........................52" X 18"
Max Table Load.....................1,750 LBS
Spindle Nose to Table..............4.2" - 29.2”
X-Axis Travel......................50"
Y-Axis Travel......................20"
Z-Axis Travel......................25"
Spindle Motor......................30 HP
Spindle Speed......................15,000 RPM
Number of Tools....................40 ATC
Approx. Shipping Dimensions........152" x 102" (Without Midaco)
Approx. Shipping Weight............14,000 LBS
Haas CNC Control with Remote Jog Handle
1GB Memory, Haas Connect,
15,000 RPM, CAT-40 Spindle
40 Station Side Mount ATC
Midaco Pallet Changer
1,000 PSI Through Spindle Coolant
Programmable Coolant
Renishaw Probing
High Speed Machining
4th Axis Drive & Wiring
4th Axis Rotary Table
High Intensity Lighting
Window Blast Feature
55 Gallon Coolant Tank
Rigid Tapping
Haas Multi-Auger Chip Removal System
Hennig Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
