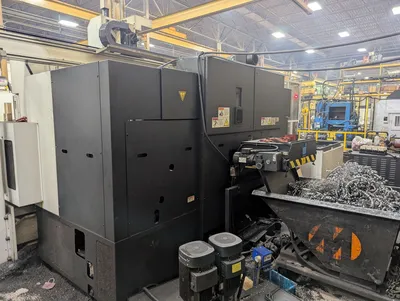

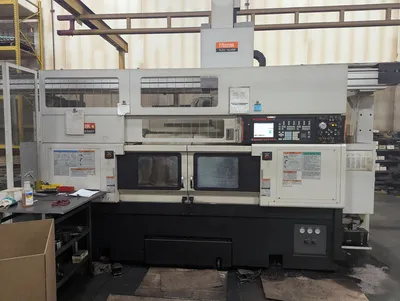

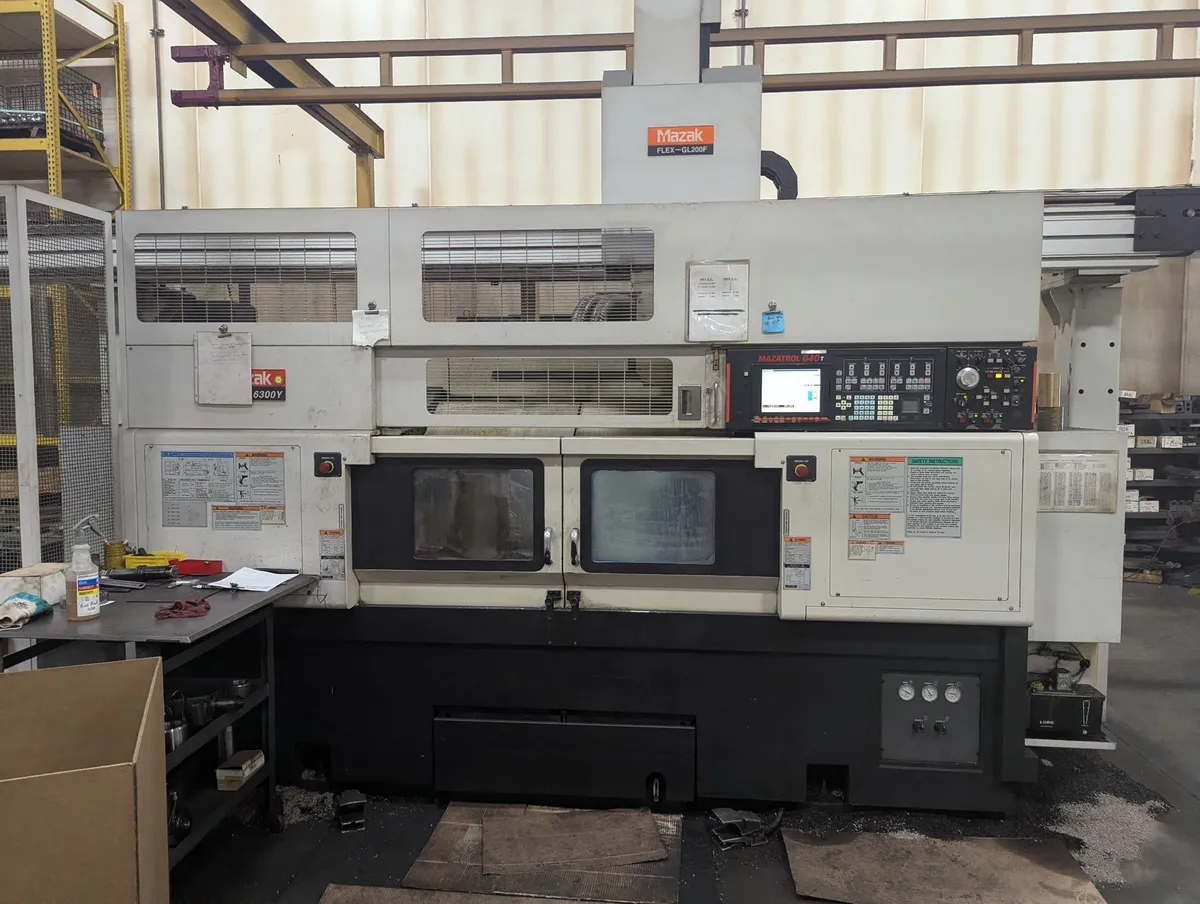

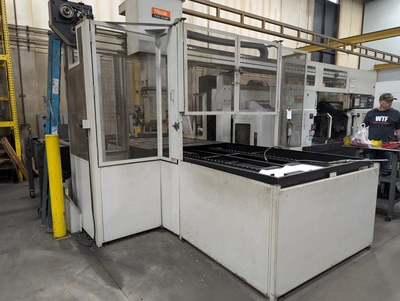

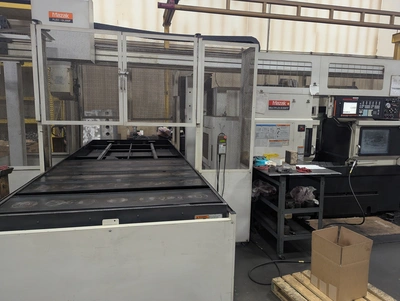

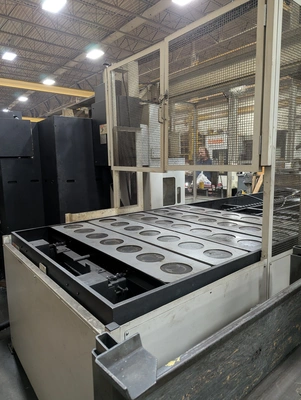

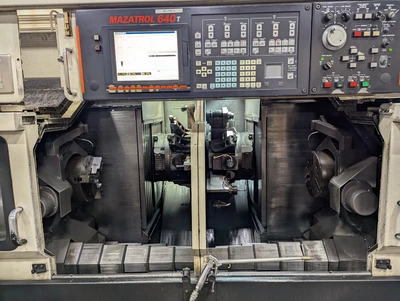

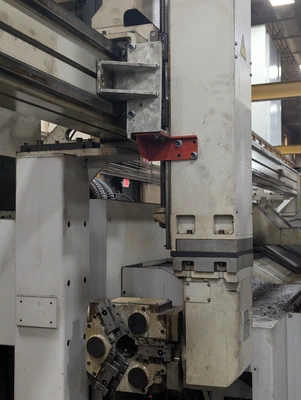

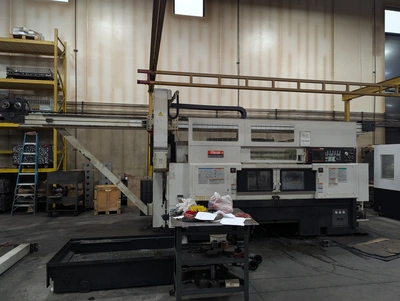

Mazak Multiplex 6300Y with GL200F Gantry Loader

Maximum Swing..............................16.93"
Standard Cutting Diameter..................13.0"
Maximum Cutting Diameter...................16.93"
Maximum Cutting Length Chuckwork...........8.86"
Maximum Cutting Length Shaftwork...........25.59"
Distance Between Spindle Faces.............9.82" - 57.09"
Spindle Nose...............................A2-8
Spindle Bore...............................3.46"
Maximum Bar Diameter.......................3.0"
Spindle Speed..............................4,000 RPM
Spindle Indexing (C-Axis)..................0.001 deg./360,000 Positions
Spindle Horsepower (30 min.)...............30 HP (AC)
Spindle Torque.............................441.34 ft.-lbs.
Turret Index Time (1 Step).................0.3 Seconds
Total Number of Tools......................24
Max. Turning & Facing......................1" x 1"
Max. Boring Bar Maximum Diameter...........2"
Milling Spindle Speed......................4,000 RPM
Milling Spindle Horsepower (10 Min)........10 HP (A.C.)
Milling Spindle Torque (4000 RPM)..........57.88 ft.-lbs.
Milling Spindle Torque (2000 RPM Option)...72.34 ft.-lbs.
Maximum Drill..............................7/8"
Maximum End Mill...........................13/16"
Maximum Tap................................8-5/8 UNC
Y-Axis Travel..............................+/- 3.0"
X-Axis Travel..............................12.2"
Z-Axis Travel..............................23.82"
Y-Axis Rapids..............................393 IPM
X & Z-Axis Rapids..........................945 IPM
C-Axis Rapids..............................400 RPM
Machine Floor Space (W x L)................95.3" x 167.7"
Machine Height.............................85.44"
Total Power Required (Machine Only)........76 KVA
Air Requirements...........................71 PSI
Total Weight (For Machine Only)............26,840 LBS
