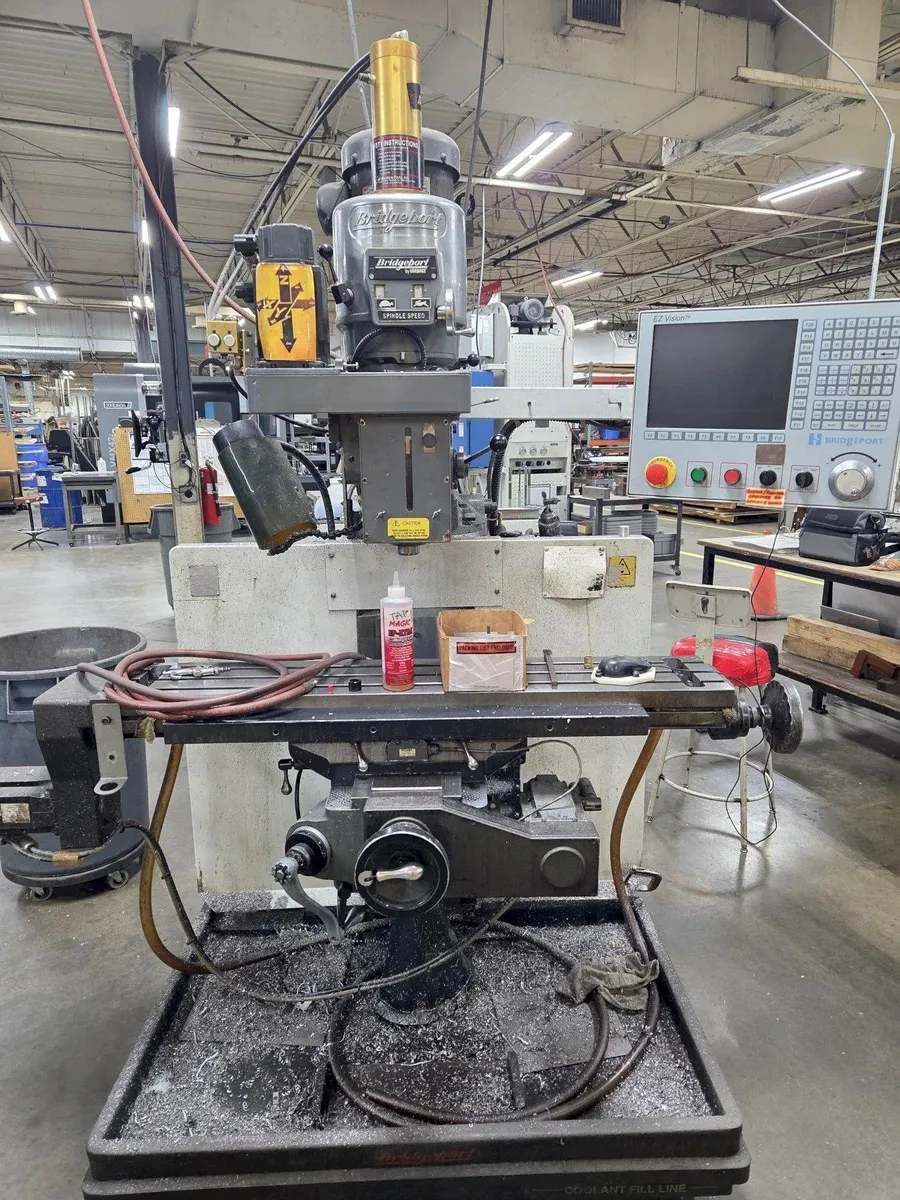

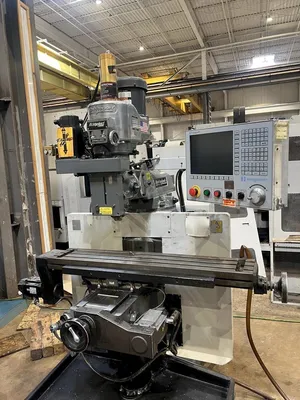

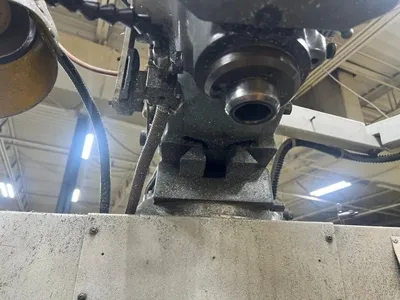

BRIDGEPORT HARDINGE EZ VISION 3-AXIS CNC KNEE MILL

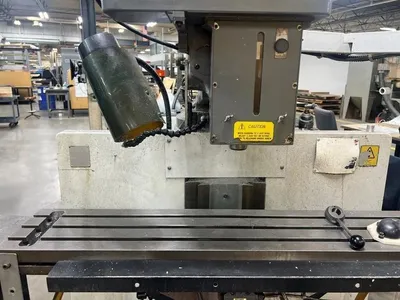

Table size.......................9" x 48"
Longitudinal travel..............30"
Cross travel.....................12"
Vertical travel of knee..........14"
Quill travel.....................5"
Spindle speeds...................60 to 4200 RPM (infinitely variable)
Spindle quill feeds..............0.0015" – 0.003" – 0.006"
Ram travel.......................12"
Positioning speed (X-Y axis).....100 inch / minute
Feed rate range (X-Y axis).......0.1 to 100 inch / minute
Throat...........................6-3/4" to 18-3/4"
Distance table to spindle nose...2-1/2" to 18-1/4"

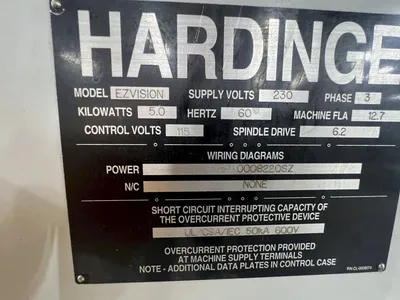

Motor............................2 HP / 1735 RPM
Volts............................230 / 460
Phase............................3
Cycles...........................60
Full load amps...................6.2 / 3.1
Approximate dimensions...........70" x 77" x 87" high
Approximate weight...............3,500 lbs.
