Haas ST-15Y with Barfeed
Have one to sell?
ConditionUsed
1 available

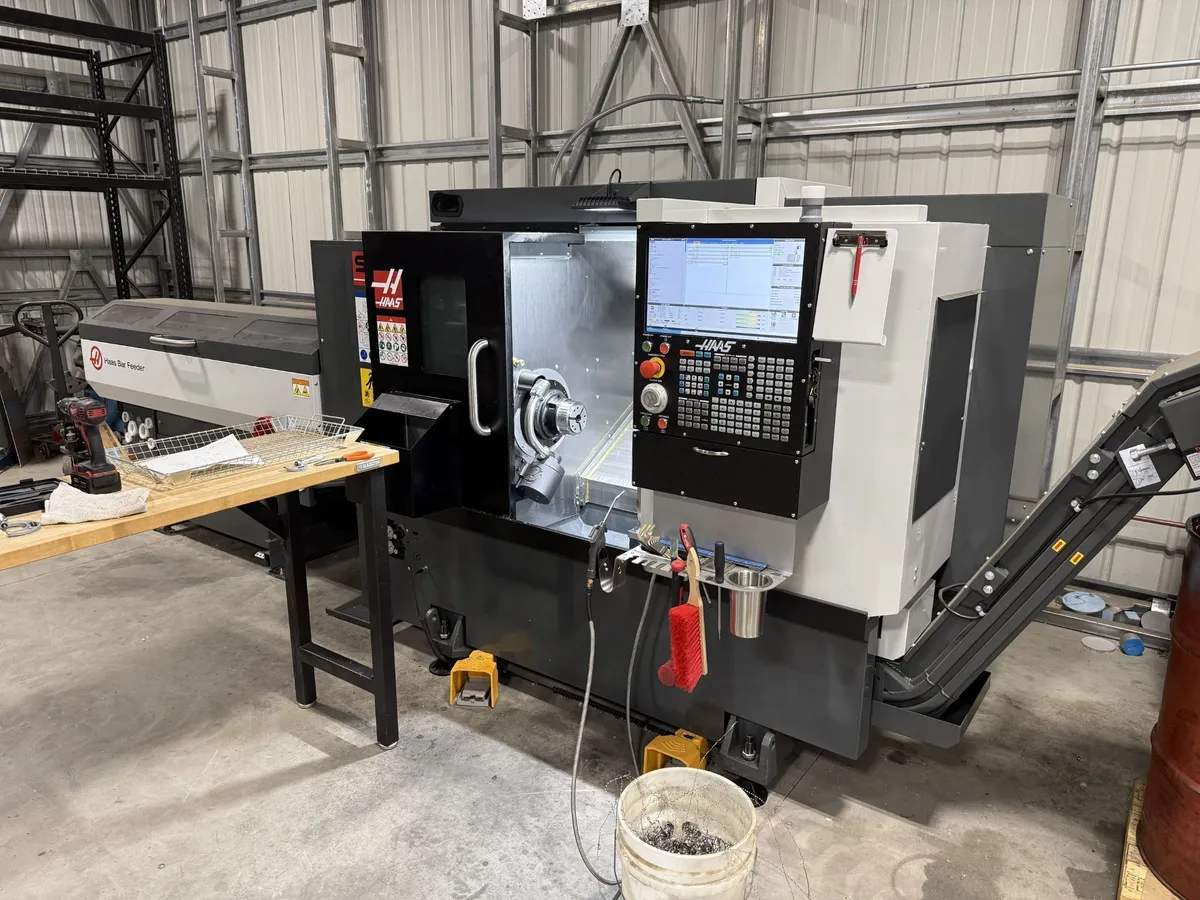

2025 Haas ST-15Y with Barfeed with Auto Tool Setter, 6,000 RPM Milling Upgrade, Cabinet Cooler, Tailstock, Parts Catcher, Auto Jet Blast, and Chip Conveyor. Machine Only has 63 Cutting Hours.
Max Swing...............16.5"
Max Turning Length......16.0"
Max Turning Dia.........11"
X Axis Travel...........7.88"
Z Axis Travel...........16"
Y-Axis Travel...........+/-2.00"
Spindle Motor...........20 HP
Spindle Nose............A2-6
Chuck Size..............8.3"
Spindle Bore............3.50"
Bar Capacity............2.5"
Spindle Speed...........4,000 RPM
Rapids (X,Y,Z)..........472,472,1200 IPM

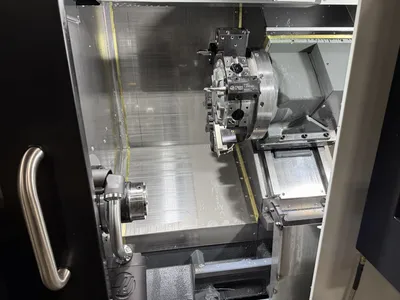

Number of Tools.........12 Station Turret
Milling Motor...........12 HP
Milling Speed...........6,000 RPM
Tailstock Quill.........MT-3
Haas CNC Control with 1GB, USB, WIFI, Ethernet, and 19" Monitor
Automatic Tool Presetter
6,000 RPM Live Tooling Upgrade
CNC Control Cabinet Cooler
Tailstock
Parts Catcher
Auto Jet Blast
Haas Barfeed
Chip Conveyor

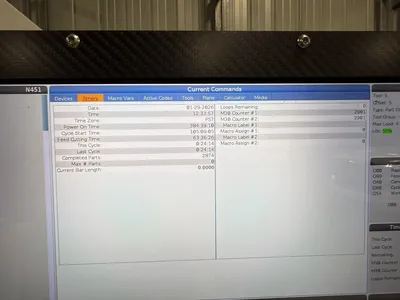

HOURS:
Power On...........384
Cycle Start........105
Feed Cutting.......63
Completed Parts....2874
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
