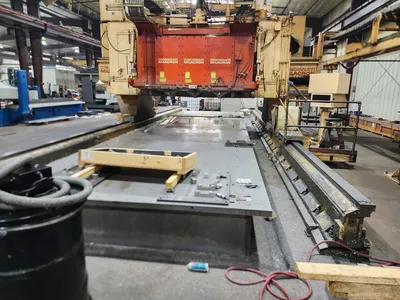

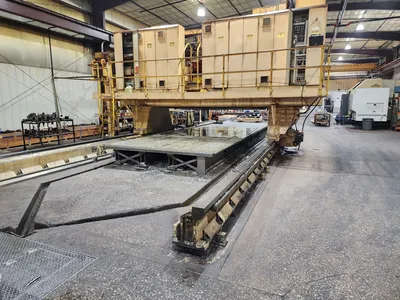

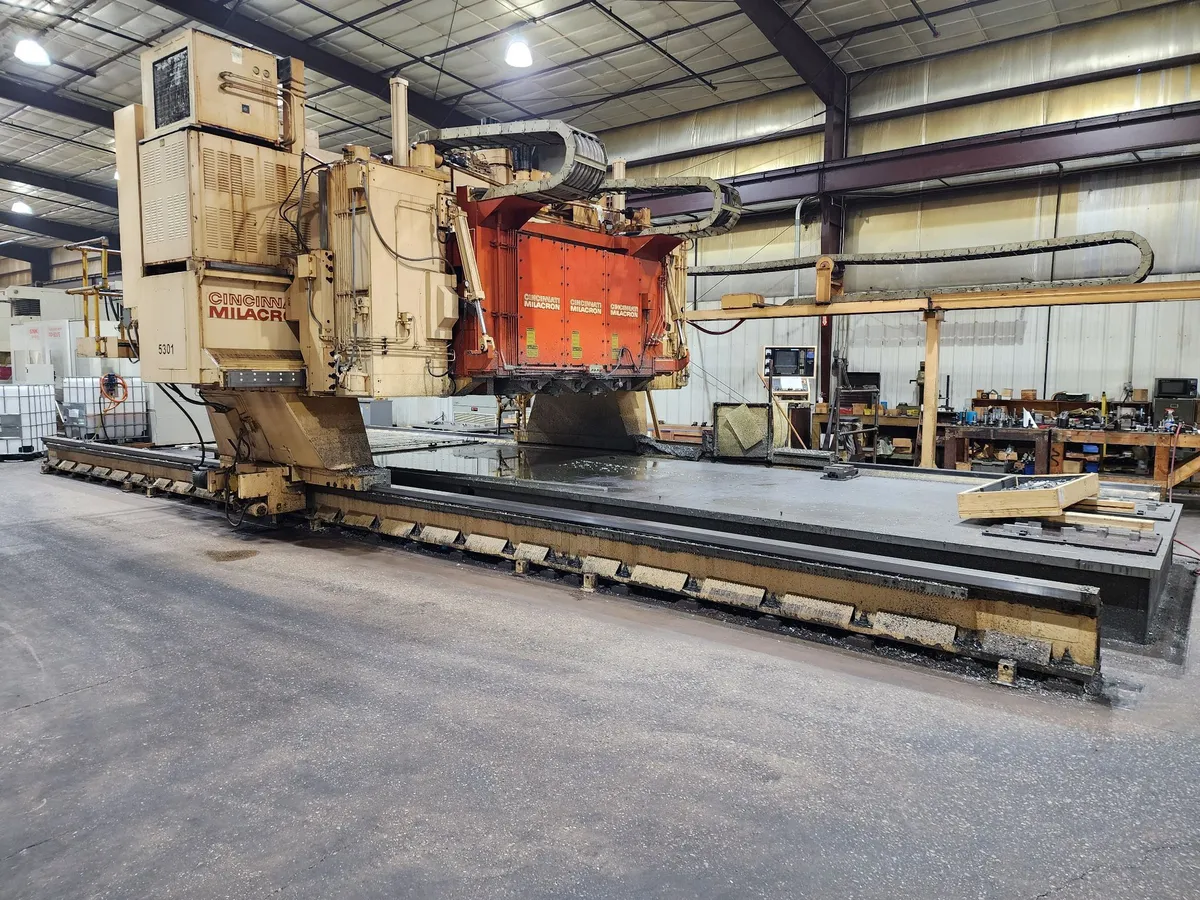

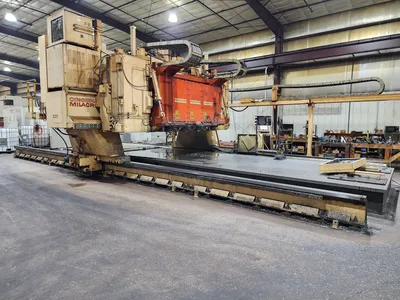

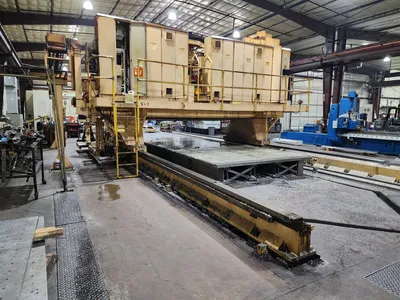

Cincinnati 3-Spindle, 5-Axis Gantry Machine

Table Size........................38' x 10'
Number of Spindles................3
Spindle Quill Diameter............8"
Spindle Speed.....................3,600 RPM
Spindle Taper.....................No. 50 N.S.
Spindle Torque Rating.............0.25 HP/RPM
Spindle Horsepower................30 HP
Spindle Nose to Table Top.........5" - 33"
Z-Axis Travel.....................28"
A & B-Axis Tilt Movement..........+/-25 Degree
Feedrates (X,Y,Z,A,B Axes)........200,200,60,240,240 IPM
Machine Height....................15'

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
