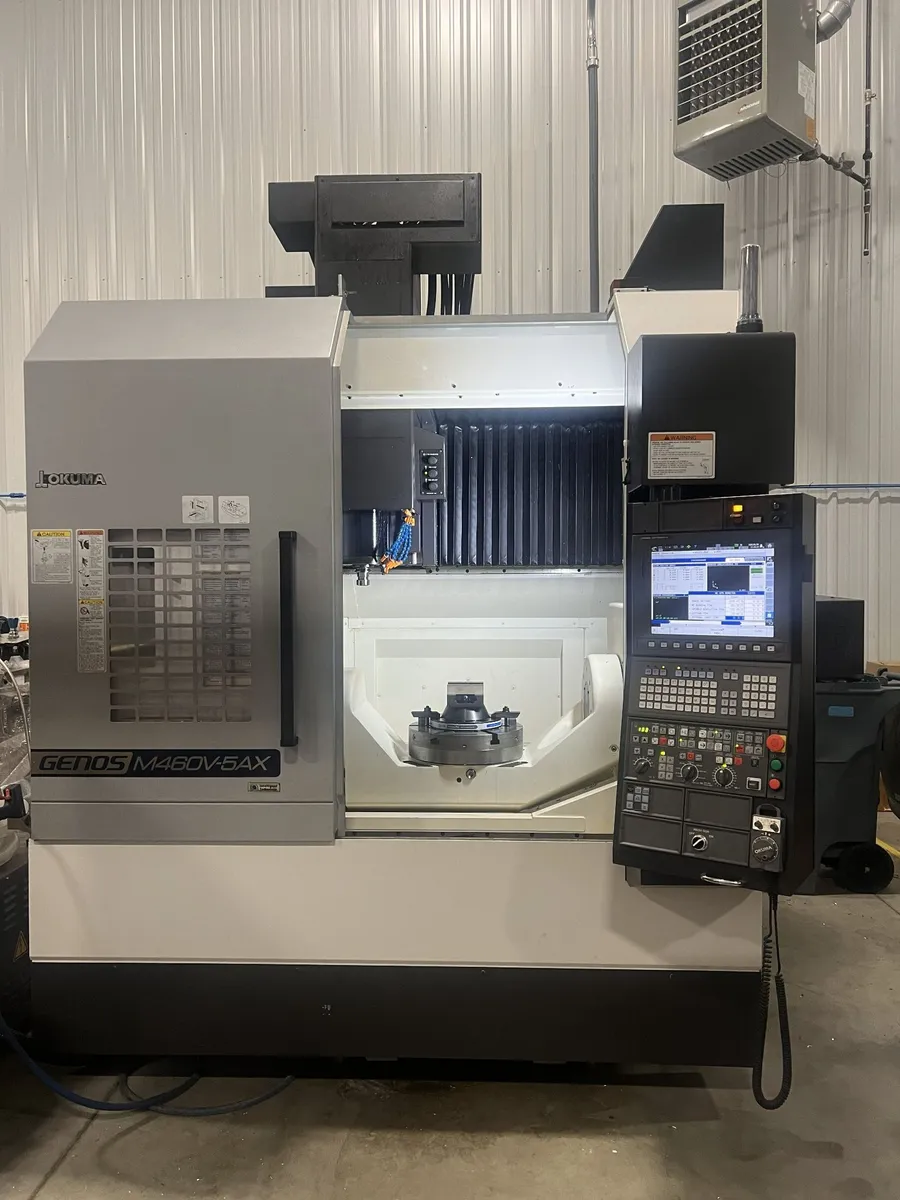

Okuma Genos M460V-5AX
Have one to sell?
ConditionUsed
1 available
2018 Okuma Genos M460V-5AX with OSP300 Control, 15,000 RPM, CAT-40 Spindle, Through Spindle Coolant, and only 239 Cutting Hours
Table Diameter...........15.75"
Max Work Size............ø23.62" x 15.75" H
Max Table Load...........660 LBS
Spindle Nose to Table....3.94" – 22.05"
X-Axis Travel............30"
Y-Axis Travel............18.11"
Z-Axis Travel............18.11"
A-Axis Travel............+20° to -110°
C-Axis Travel............360°
Motor....................30 HP
Taper....................CAT 40, BIG PLUS
Spindle Speed............15,000 RPM
Tool Capacity............32 ATC
Dimensions...............85.5" x 111" x 116" H
Weight...................18,200 LBS

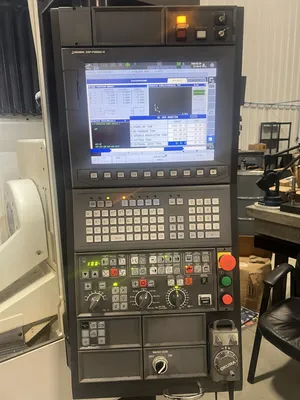

Okuma OSP-P300MA-H Control
3D Tool Offset
Through Spindle Coolant
Renishaw RMI-Q and RMP60
Optional: 5-Axis Riser and Centering Vise
Optional: Renishaw RTS and mount

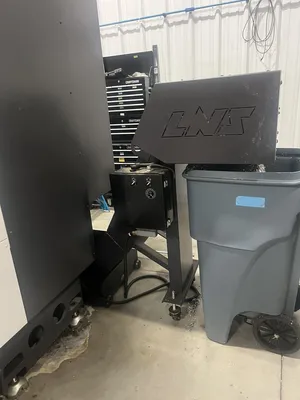

LNS Chip Conveyor
All Available Manuals

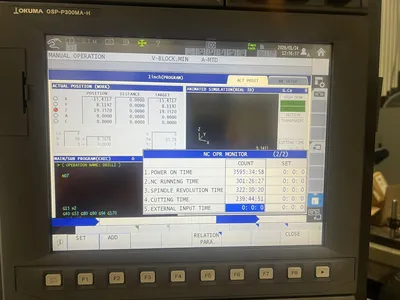

HOURS:
Power on Time..............3595
NC Running Time............301
Spindle Revolution Time....322
Cutting Time...............239
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
