Akira Seiki HV5.5A
Have one to sell?
ConditionUsed
1 available

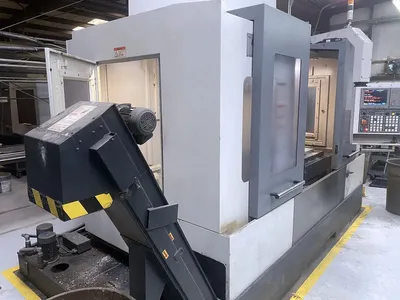

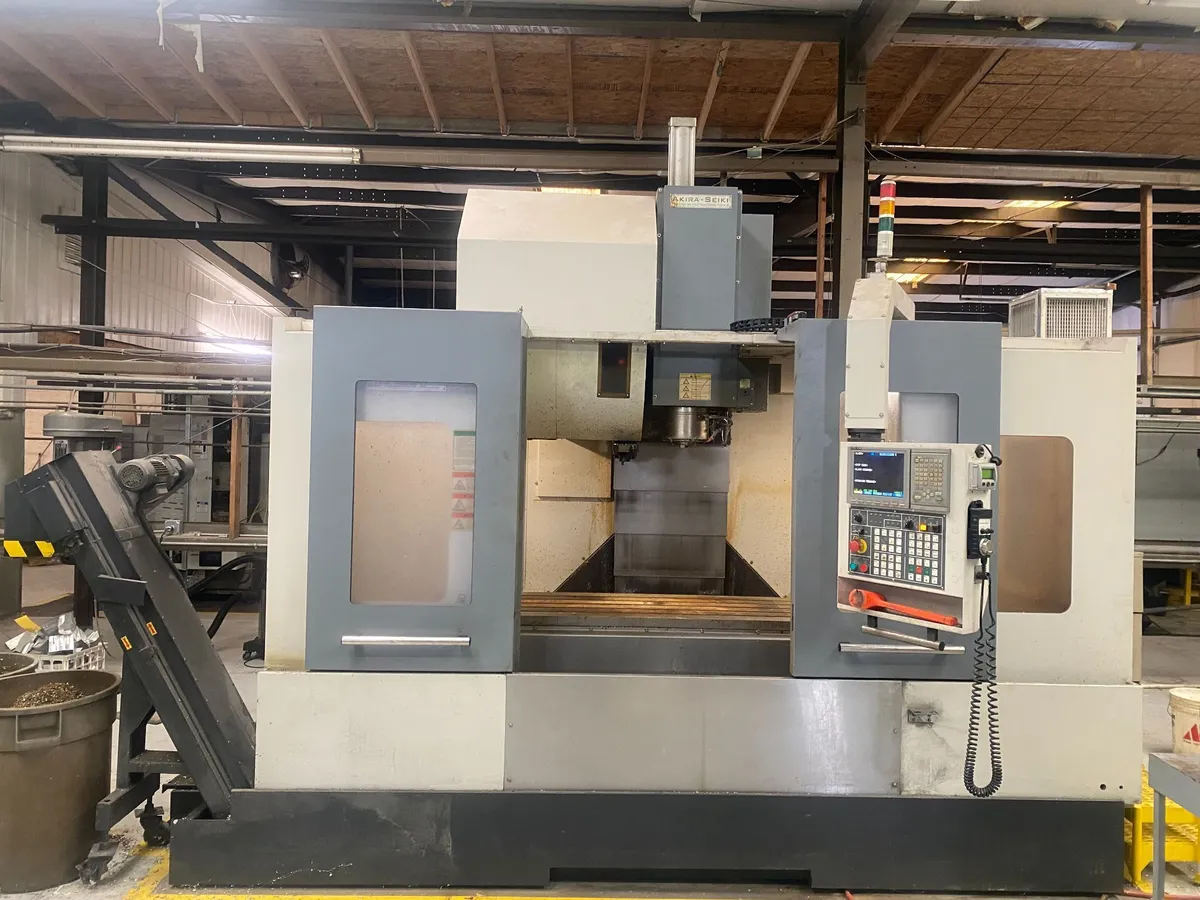

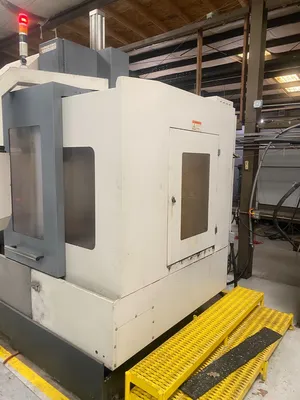

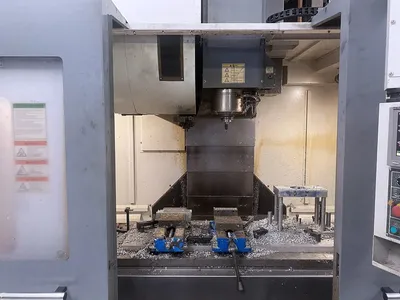

2015 Akira Seiki HV5.5A with Fanuc Control, 8,000 RPM, CAT-50 Spindle, 24 ATC, and Chip Conveyor.

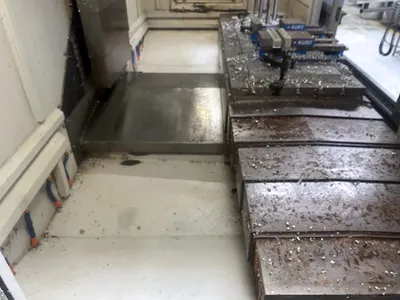

Table Size.......................59" × 23.6"
Spindle Nose to Table Height.....4" - 30"
Spindle Center to Column.........25"
X-Axis Travel....................53.1"
Y-Axis Travel....................25"
Z-Axis Travel....................26"
Spindle Taper....................CAT-50
Spindle Speed....................8,000 RPM
Rapid Traverse...................1,417 IPM (X/Y), 1,181 IPM (Z)
Tool stations....................24
Electrics........................220V/3PH/60HZ
Approx. Dimensions...............150" × 98" × 124"
Approx. Weight...................17,500 LBS
Akira Mi‑845 Control (Fanuc)
8,000 RPM, CAT-50 Spindle

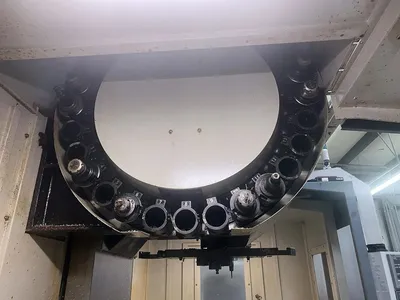

24 Tool ATC
Chip Conveyor
Coolant Tank
Full Enclosure
Side Access Windows
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2015 Akira Seiki HV5.5A with Fanuc Control, 8,000 RPM, CAT-50 Spindle, 24 ATC, and Chip Conveyor.
Imperial
| X | 53.1" |
| Y | 25" |
| Z | 26" |
| Power | 35 hp |
| RPM | 8,000 RPM |
| # ATC | 24 |
| Taper | CAT-50 |
| Table-W | 23.6" |
| Table-L | 59" |
| # Axis | 3 |
| Control | CNC (Akira Mi-845 (Fanuc)) |
| Dimensions | 150" × 98" × 124" |
| Weight | 17,500 LBS |
Table Size.......................59" × 23.6"
Spindle Nose to Table Height.....4" - 30"
Spindle Center to Column.........25"
X-Axis Travel....................53.1"
Y-Axis Travel....................25"
Z-Axis Travel....................26"
Spindle Taper....................CAT-50
Spindle Speed....................8,000 RPM
Rapid Traverse...................1,417 IPM (X/Y), 1,181 IPM (Z)
Tool stations....................24
Electrics........................220V/3PH/60HZ
Approx. Dimensions...............150" × 98" × 124"
Approx. Weight...................17,500 LBS
Akira Mi‑845 Control (Fanuc)
8,000 RPM, CAT-50 Spindle
24 Tool ATC
Chip Conveyor
Coolant Tank
Full Enclosure
Side Access Windows
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
