Takisawa EX-110 CNC Lathe
Have one to sell?
ConditionUsed
1 available

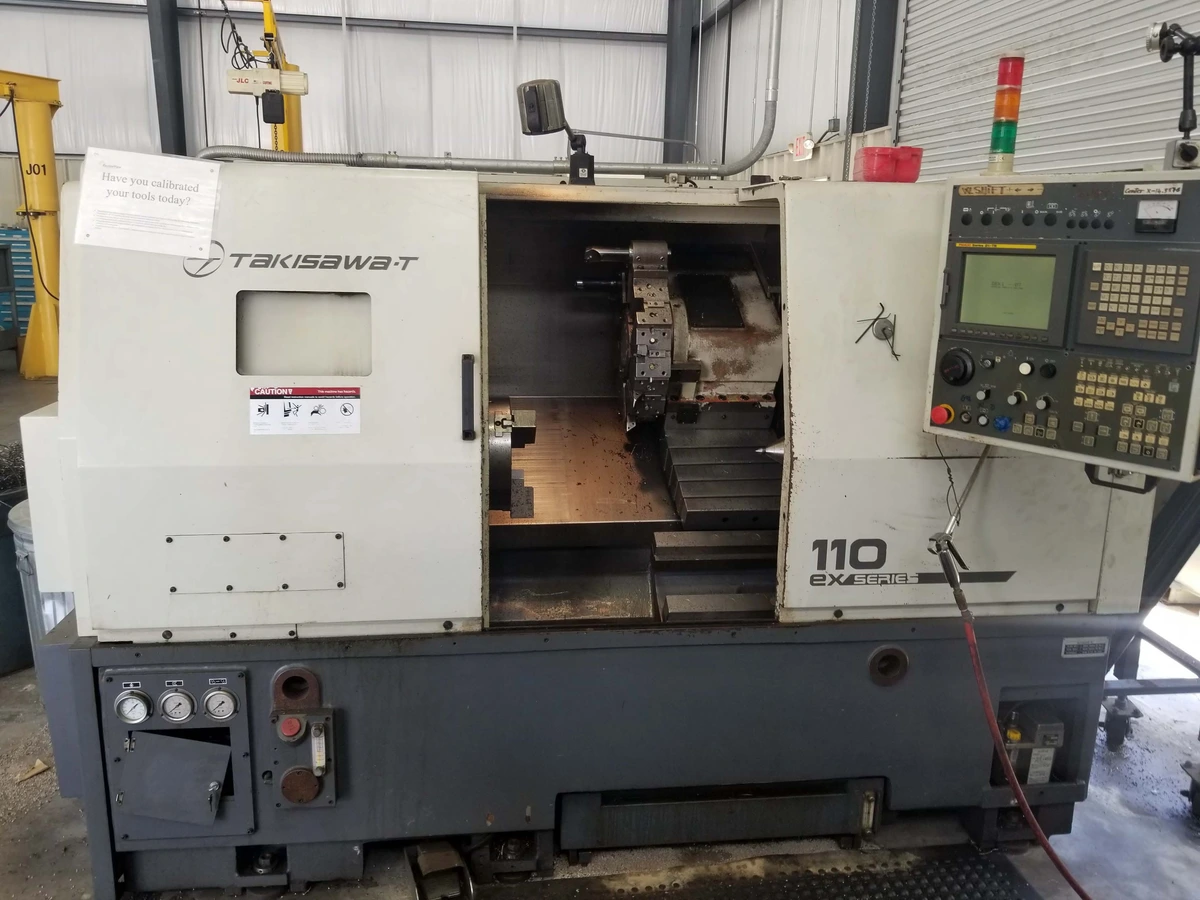

2007 Takisawa EX-110 CNC Lathe with Fanuc 21i-TB Control, 12" Chuck, Tailstock, 10 Station Turret, and Chip Conveyor
Maximum Swing.......................19.5"
Maximum Turning Diameter............15.75"
Maximum Turning Length..............28"
X-Axis Travel.......................8-1/2"
Z-Axis Travel.......................28"
Spinde Power........................25 HP
Spindle Bore........................3.38"
Bar Capacity........................3"
Spindle Nose........................A2-8
Spindle Speed Variable..............50 - 3500 RPM

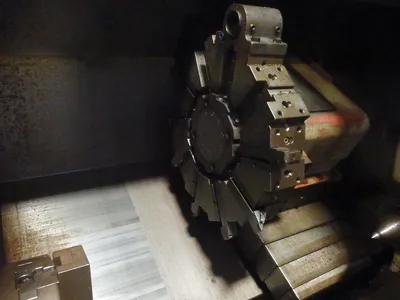

Turret..............................10 Position
Tool Shank Size - Square............1"
Tool Shank Size - Round.............2"
Tailstock Quill Diameter............4 1/4"
Tailstock Stroke....................5.880"
Tailstock Quill Center..............MT#5
Tailstock Body Travel...............22.880"
Approximate Dimensions..............110"L x 67"W x 71"H
Approximate Weight..................11,000 LBS

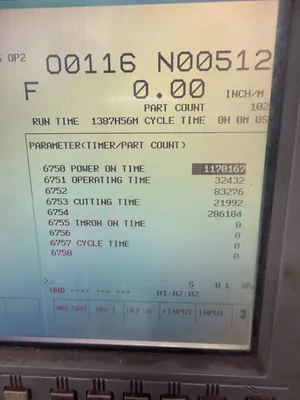

Fanuc 21i-TB CNC Control

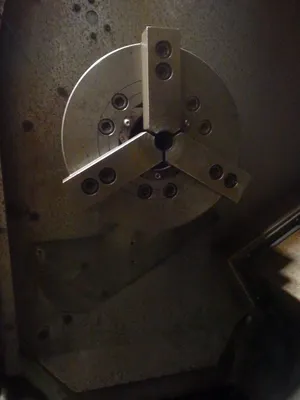

12” Kitagawa Chuck

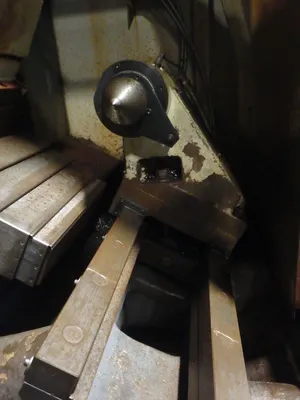

Tailstock
3-Color Alert Light
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2007 Takisawa EX-110 CNC Lathe with Fanuc 21i-TB Control, 12" Chuck, Tailstock, 10 Station Turret, and Chip Conveyor
Imperial
| Swing | 19.5" |
| Machining Length | 28" |
| # Axis | 2 |
| Chuck Size | 12" |
| Bar Capacity | 3" |
| Power | 25 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 15.75" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (FANUC 21i-TB) |
| Dimensions | 110"L x 67"W x 71"H |
| Weight | 11,000 LBS |
Maximum Swing.......................19.5"
Maximum Turning Diameter............15.75"
Maximum Turning Length..............28"
X-Axis Travel.......................8-1/2"
Z-Axis Travel.......................28"
Spinde Power........................25 HP
Spindle Bore........................3.38"
Bar Capacity........................3"
Spindle Nose........................A2-8
Spindle Speed Variable..............50 - 3500 RPM
Turret..............................10 Position
Tool Shank Size - Square............1"
Tool Shank Size - Round.............2"
Tailstock Quill Diameter............4 1/4"
Tailstock Stroke....................5.880"
Tailstock Quill Center..............MT#5
Tailstock Body Travel...............22.880"
Approximate Dimensions..............110"L x 67"W x 71"H
Approximate Weight..................11,000 LBS
Fanuc 21i-TB CNC Control
12” Kitagawa Chuck
Tailstock
3-Color Alert Light
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
