Doosan DNM 4500 Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

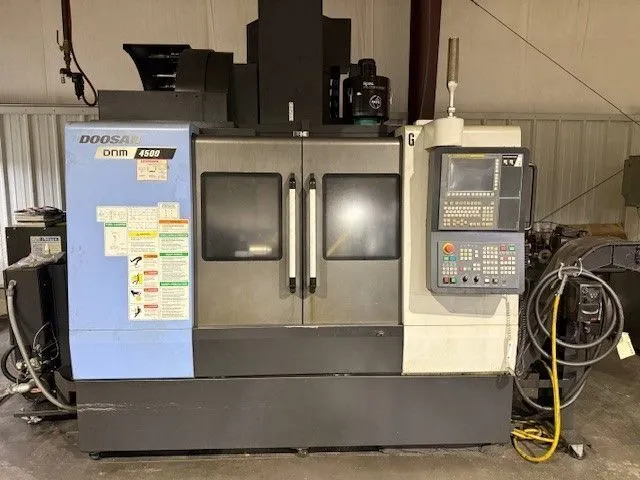

2017 Doosan DNM 4500 Vertical Machining Center with Fanuc I Plus Control, Chip Blaster, Chip Conveyor, Filtermist, and More.
Table Size....................39.37" x 17.72"
Max. Table Load...............1,320 LBS
Spindle to Table Distance.....5.9" - 26"
X-Axis Travel.................31.5"
Y-Axis Travel.................17.7"
Z-Axis Travel.................20.1"
Spindle Motor.................25 HP
Spindle Taper.................CAT-40
Spindle Speed.................12,000 RPM
Number of Tools...............30 ATC
Rapid Traverse (X,Y,Z)........1,417, 1,417, 1,181 IPM
Machine Dimensions............103" x 117.5" x 84.9"
Machine Weight................11,025 LBS
Fanuc i-Plus CNC Control
12,000 RPM, CAT-40 Spindle

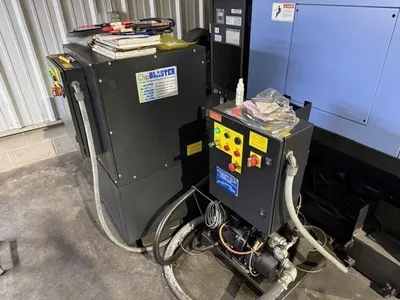

Chip Blaster High Pressure Through Spindle Coolant
30 Station Side Mount ATC
Filtermist Mist Collection

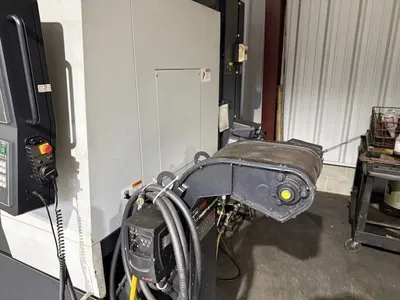

Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
