Samsung SL35/1500 CNC Lathe
Have one to sell?
ConditionUsed
1 available

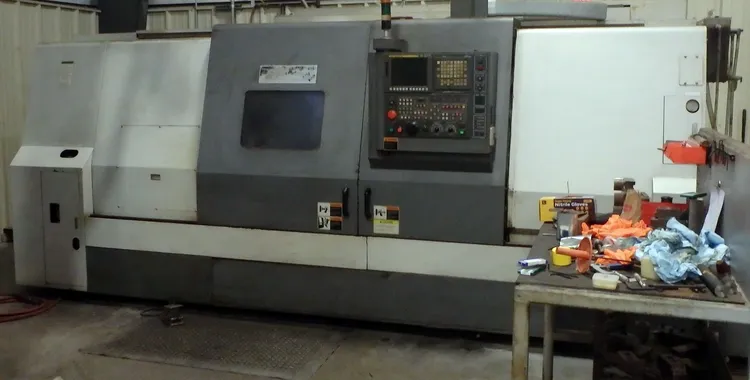

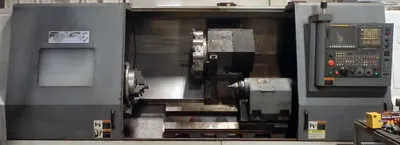

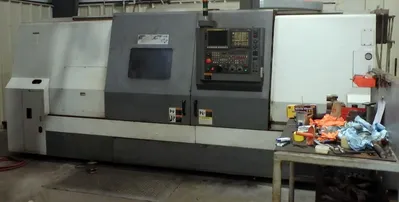

2012 Samsung SL35/1500 CNC Lathe with Fanuc Oi-TD Control, 23.6" Swing, 60" Centers, 15" Chuck, 4.6" Bar Capacity, Tailstock, and Chip Conveyor.
Swing Over Bed Maximum........23.62"
Swing Over Carraige Maximum...16.73"
Turning Diameter Maximum......16.50"
Turning Length Maximum........60.24"
X-Axis Travel/Cross...........9.45"
Z-Axis Travel/Longitudinal....63.19"
Spindle Motor.................25/30 HP
Spindle Nose..................A2-11 (ASA)
Spindle Bore Diameter.........5.20"
Bar Capacity Maximum..........4.63"
Spindle Speeds................2000 RPM
Turret Tooling Stations.......10
X-Axis Rapid Traverse Rate....472 IPM
Z-Axis Rapid Traverse Rate....590 IPM
Floor Space Required..........232"L x 73"W
Approximate Weight............19,800 LBS
Fanuc Oi-TD CNC Control
Tool Setter

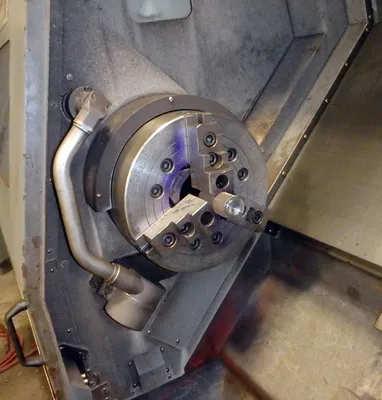

15" 3-Jaw Chuck

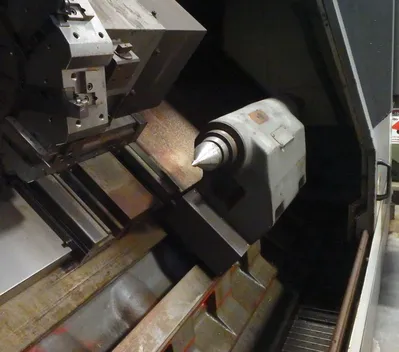

Tailstock

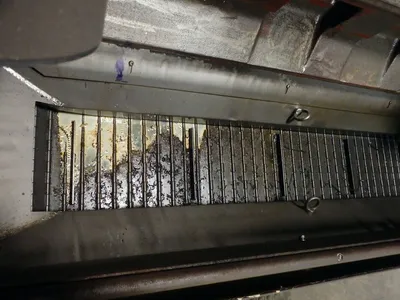

Chip Conveyor
Advanced spindle technology

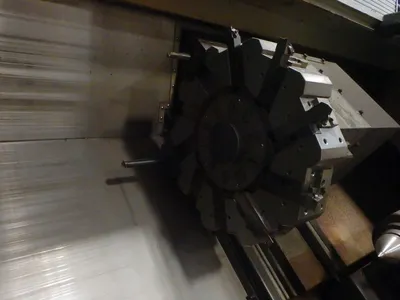

High-performance turret
Intuitive control panel
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
