Haas ST-15 CNC Lathe with Barfeeder
Have one to sell?
ConditionUsed
1 available

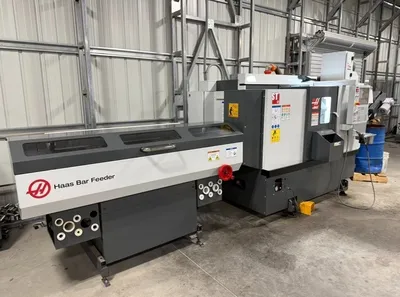

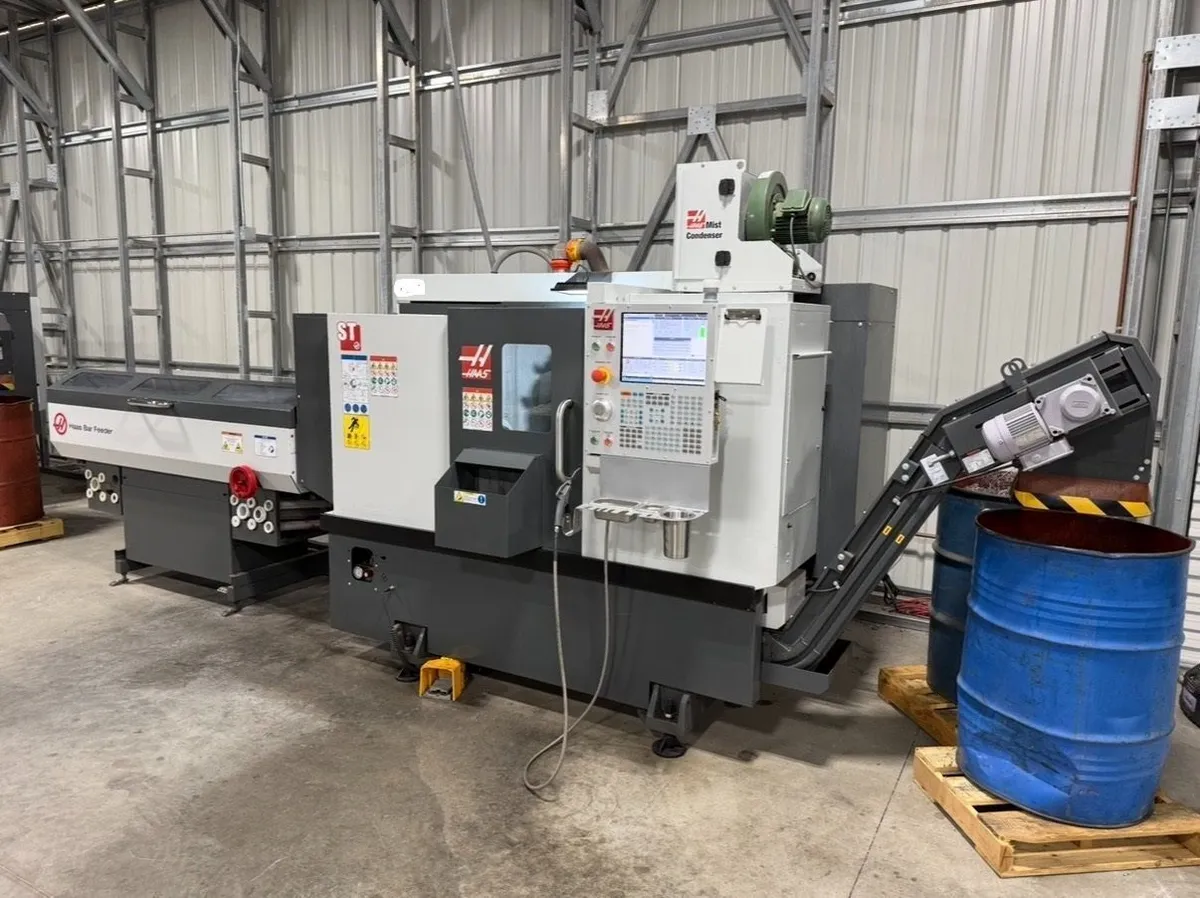

2023 Haas ST-15 CNC Chucking Lathe with Barfeeder, 8" 3-Jaw Chuck, Automatic Tool Presetter, Parts Catcher, Coolant Mist Condenser, Chip Conveyor, Low Hours.
Max Swing Over Bed..................16.5"
Max Turning Diameter................12.0"
Max Turning Length..................16.0"
X-Axis Travel.......................7.88"
Z-Axis Travel.......................16.00"
Spindle Motor.......................20 HP
Spindle Nose........................A2-6
Spindle Bore........................3.5"
Max Bar Capacity....................2.5"
Spindle Speed.......................4000 RPM
Rapid Traverse Rate.................1200 IPM
Turret Capacity.....................12 Stations
Tailstock Taper.....................MT-3
Hydraulic Quill Travel..............3.8"
Machine Dimensions..................126" x 70.0" x 81.0" High
Machine Weight......................7,900 lbs Approx.
Haas CNC Control
Automatic Tool Presetter System
Parts Catcher System
Coolant Mist Condenser
Chip Conveyor
Haas Barfeed

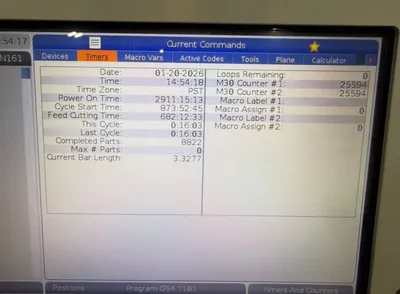

HOURS:
Power On Time..........2,911
Cycle Start Time.......873
Feed Cutting Time......682
**NO TAILSTOCK**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
