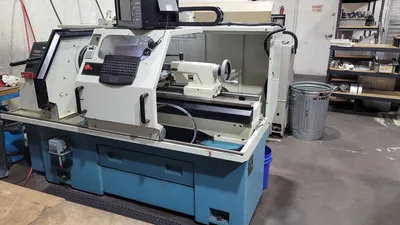

SWI Trak Model TRL 1540V CNC Flat Bed Lathe
Have one to sell?
ConditionUsed
1 available

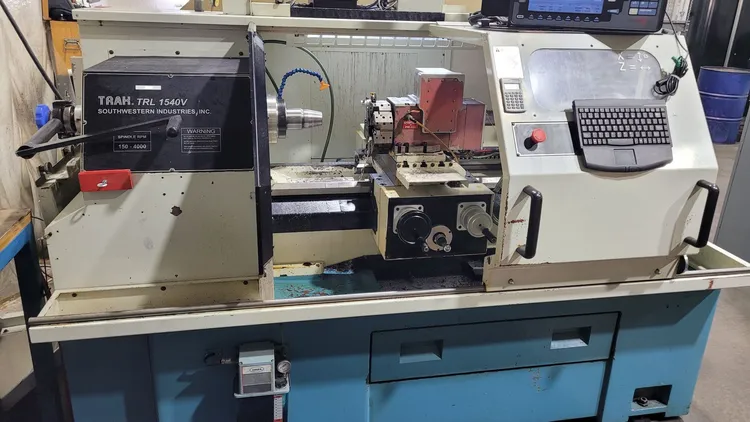

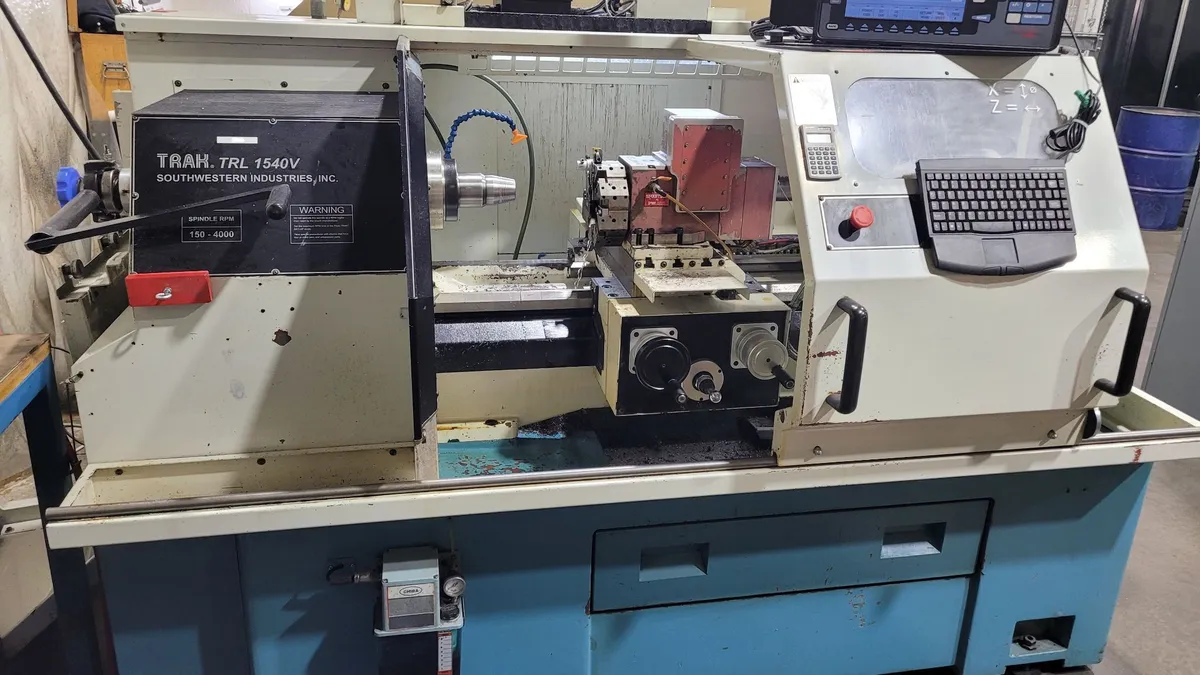

2002 SWI Trak Model TRL 1540V CNC Flat Bed Lathe with ProtoTrak VL CNC Control (2019), Dual Electronic Handwheel, Collet Chuck, 8-Station Turret, and Tailstock. Machine is Under Power for Inspection.
Swing over Bed..................15"
Swing over Cross Slide..........6-5/8"
Cross Slide Travel..............11-1/2"
Height of Centers...............8"
Distance Between Centers........40"
Spindle Motor...................10 HP
Spindle Nose....................A2-5
Spindle Through Hole............2-1/8"
Spindle Speed Range.............150 – 4000 RPM
Number of Tools.................8 Station Turret
Electrical......................220V/3PH
Machine Dimensions..............89" x 53" x 70"
Machine Weight..................4,100 LBS
ProtoTrak VL CNC Controller (2019)
Dual Electronic Handwheel Controls w/ Jog Stick
Coolant System
Central Automatic Lube System
Collet Closer
8 Station Turret
Tailstock
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2002 SWI Trak Model TRL 1540V CNC Flat Bed Lathe with ProtoTrak VL CNC Control (2019), Dual Electronic Handwheel, Collet Chuck, 8-Station Turret, and Tailstock. Machine is Under Power for Inspection.
Imperial
| Swing | 15" |
| Machining Length | 40" |
| # Axis | 2 |
| Power | 10 hp |
| Max RPM | 4,000 RPM |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (ProtoTrak VL CNC Control) |
| Dimensions | 89" x 53" x 70" |
| Weight | 4100 LBS |
Swing over Bed..................15"
Swing over Cross Slide..........6-5/8"
Cross Slide Travel..............11-1/2"
Height of Centers...............8"
Distance Between Centers........40"
Spindle Motor...................10 HP
Spindle Nose....................A2-5
Spindle Through Hole............2-1/8"
Spindle Speed Range.............150 – 4000 RPM
Number of Tools.................8 Station Turret
Electrical......................220V/3PH
Machine Dimensions..............89" x 53" x 70"
Machine Weight..................4,100 LBS
ProtoTrak VL CNC Controller (2019)
Dual Electronic Handwheel Controls w/ Jog Stick
Coolant System
Central Automatic Lube System
Collet Closer
8 Station Turret
Tailstock
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
