Used 1997 TAKISAWA TC-20 | CNC Lathes

Description

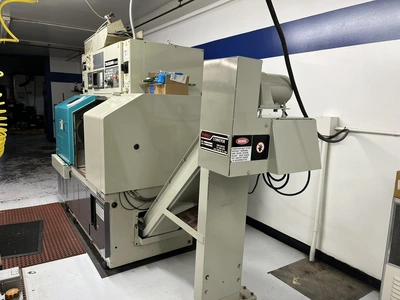

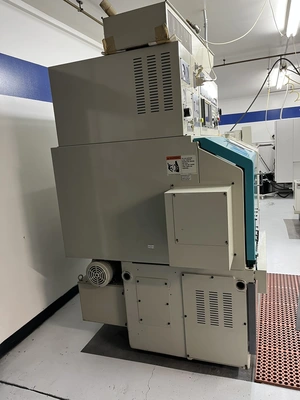

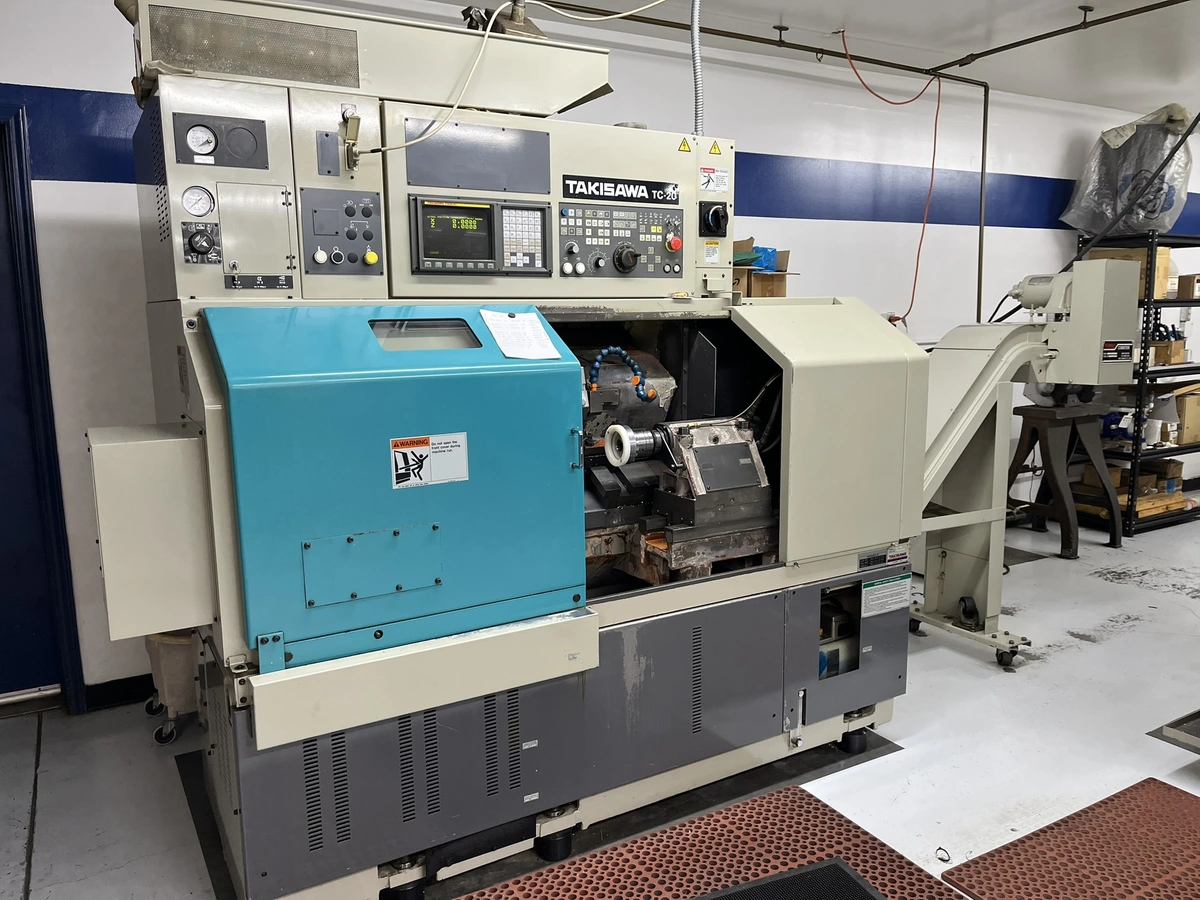

akisawa TC-20 L6 CNC Lathe purchased new in 1997. Only used for aluminum piston production. In excellent working condition. Has hydraulic tail stock. Comes with brand new Autoblok 8" 3 jaw chuck, chip conveyor, chip pan (unused). Max RPM is 4000. Travels are X Axis 5.5" (140mm) and Z Axis 25.2" (640mm). Has 8 position turret and 10 hp spindle motor, 41 gallon coolant tank. Weight is 6600 lbs. Floor space is 50" x 142" (including chip conveyor, 82" without) x 75" height. Swing over bed = 16.5", Swing over carriage = 9", Max turning dia = 9.5", Max turning length = 23.9". Sold as is. Buyer is responsible for rigging.
