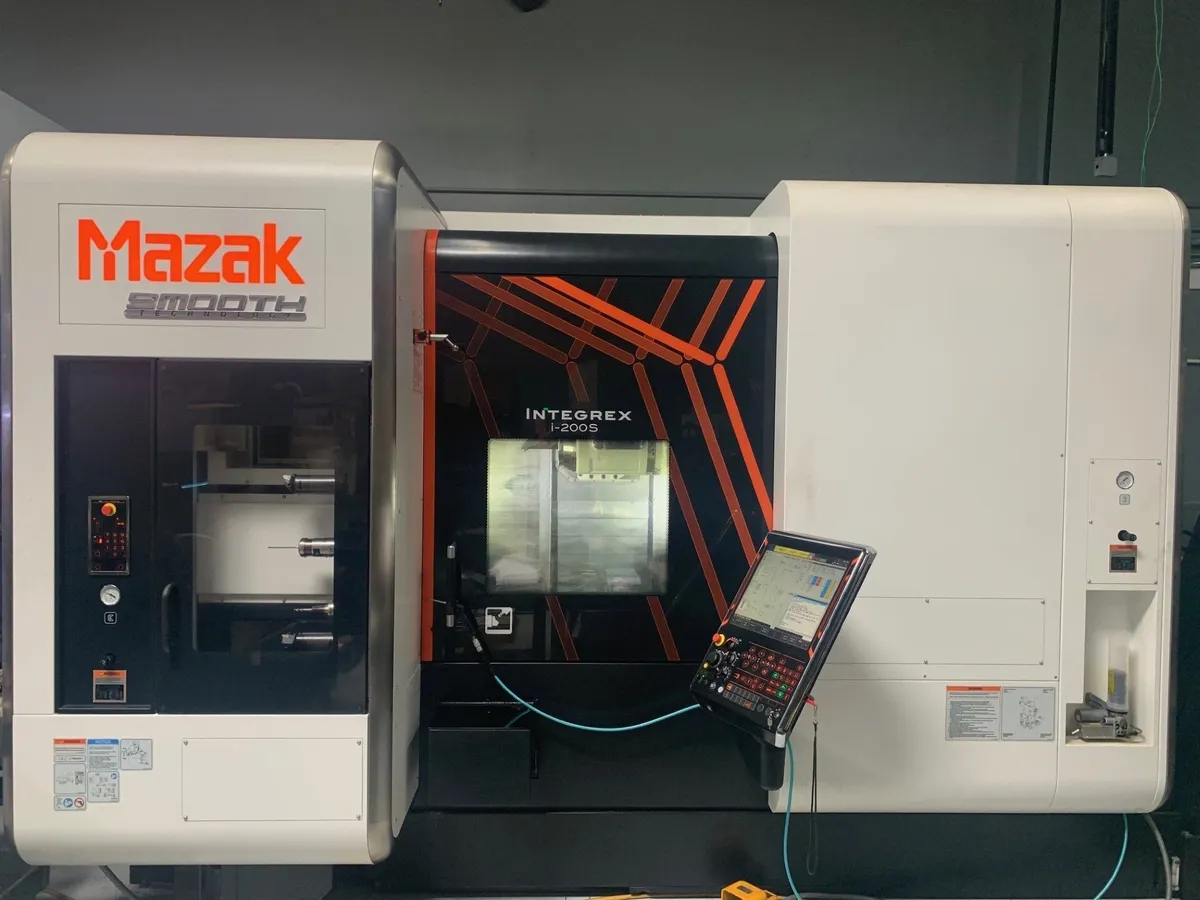

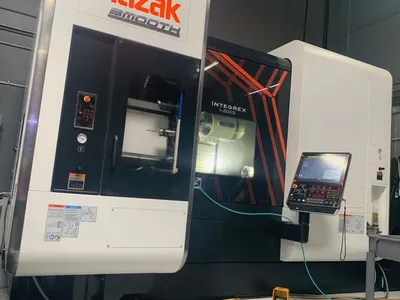

Mazak Integrex i-200S

MAX SWING...............................25.91"
MAX TURNING DIAMETER....................25.91"
MAX TURNING LENGTH......................39.8"
X-AXIS TRAVEL...........................24.21"
Z-AXIS TRAVEL...........................42.4"
Y-AXIS TRAVEL...........................10.24"
W-AXIS TRAVEL...........................41.97"
MAIN SPINDLE BAR CAPACITY...............2.56"
MAIN SPINDLE CHUCK SIZE.................8"
MAIN SPINDLE SPEED......................5,000 RPM
MAIN SPINDLE NOSE.......................A2-6
MAIN SPINDLE C AXIS.....................0.001 DEGREE INCREMENTS
SUB SPINDLE BAR CAPACITY................2"
SUB SPINDLE CHUCK SIZE..................8" CHUCK
SUB SPINDLE SPEED.......................5,000 RPM
SUB SPINDLE NOSE........................A2-6
SUB SPINDLE C AXIS......................0.001 DEGREE INCREMENTS

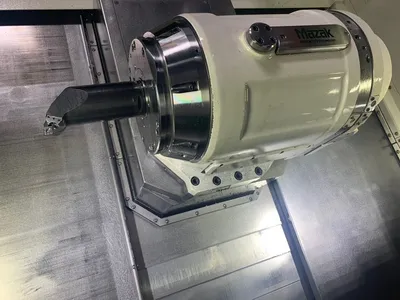

MILLING SPINDLE MOTOR...................30 HP
SPINDLE TAPER...........................CAPTO C6
MILLING SPINDLE RPM.....................12,000 RPM

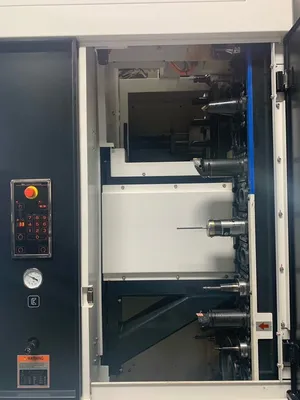

NUMBER OF TOOL STATIONS.................36 TOOL ATC
RAPID TRAVERSE RATE (X/Z)...............1,969 IPM
RAPID TRAVERSE RATE Y-AXIS..............40 IPM
RAPID TRAVERSE RATE W AXIS..............30 IPM
MAXIMUM TOOL DIAMETER...................4.92"
MAXIMUM TOOL LENGTH.....................15.75"
DIMENSIONS..............................157" X 110" X 107"
WEIGHT..................................28,881 LBS
