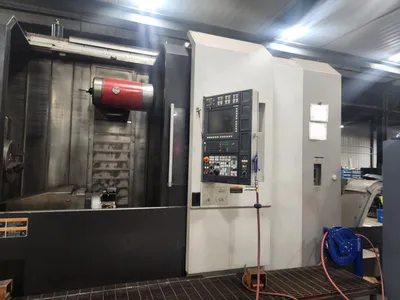

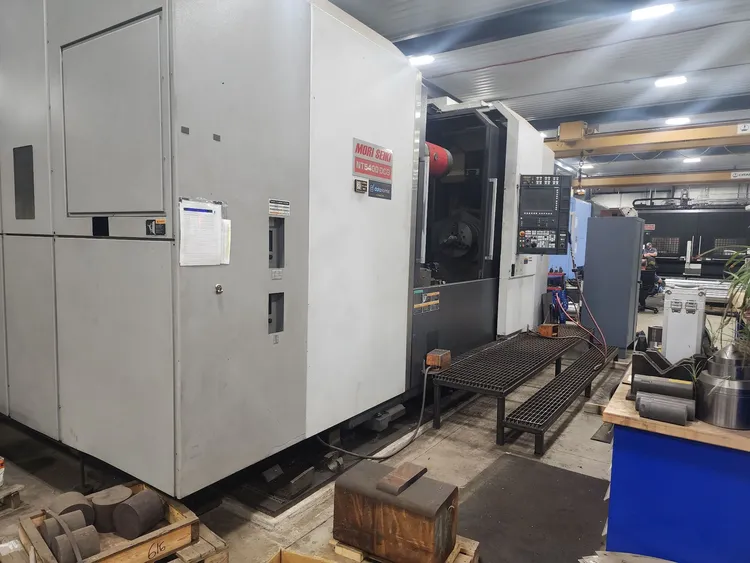

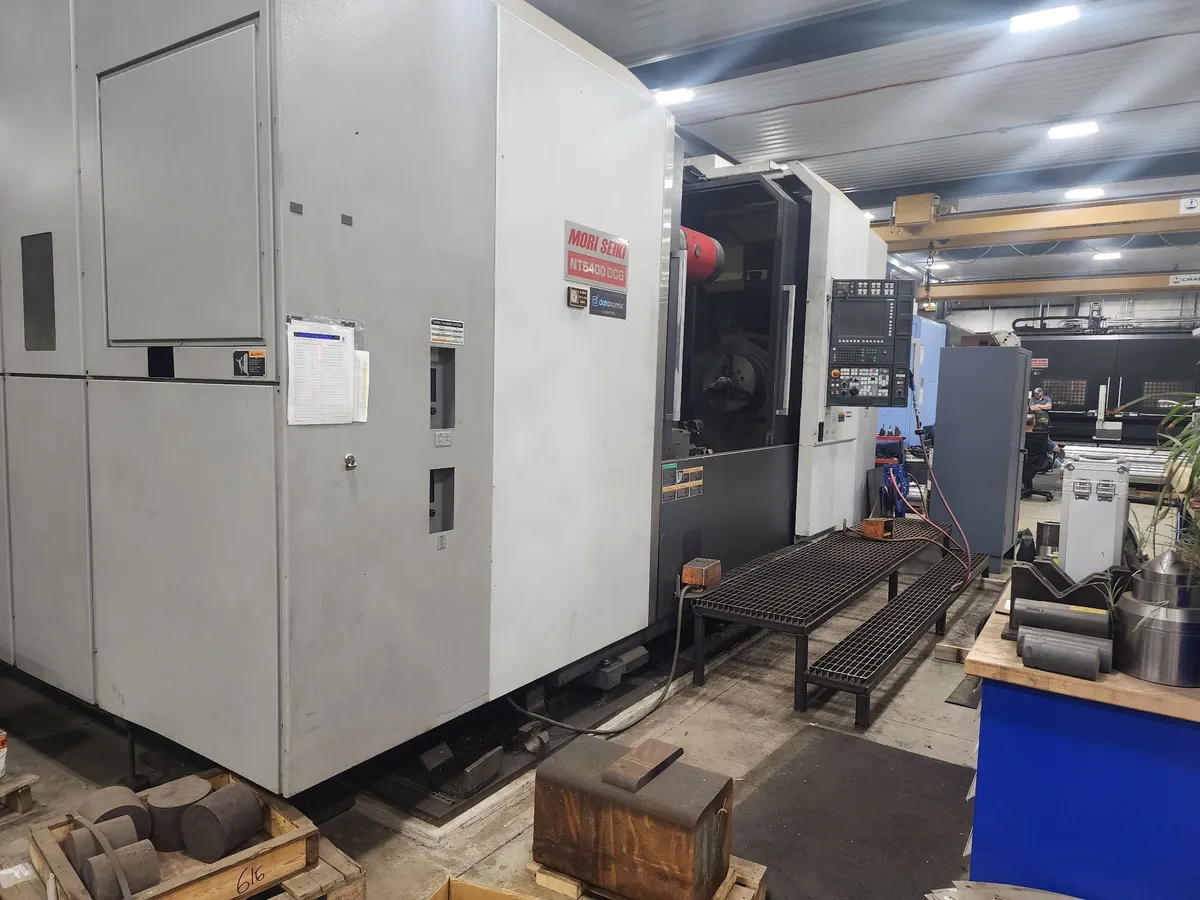

Mori Seiki NT5400/1800SZ
Have one to sell?
ConditionUsed
1 available

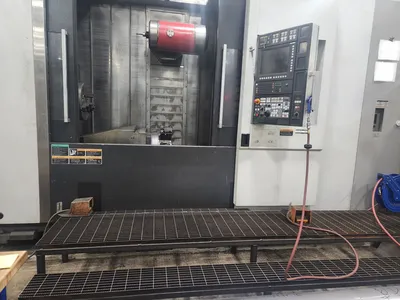

2006 Mori Seiki NT5400/1800SZ with MAPPS Programming, 80 Station ATC, Lower Turret with Milling, Cooljet HP Coolant, Renishaw OMP60 Probe, Filtermist, and More.
Max. Swing...................36.2"
Max. Machining Length........75.6"
Max. Turning Diameter........36.2"
X-Axis Travel................40.9"
Y-Axis Travel................10"
Z-Axis Travel................76.4"
C-Axis Indexing..............0.001°

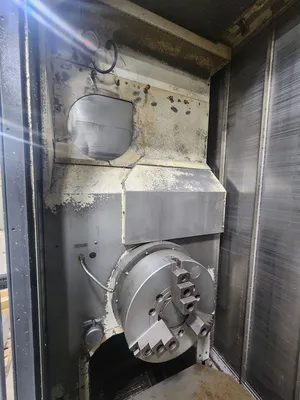

Main Spindle Chuck Size......15"
Main Spindle Motor...........50 HP
Spindle Nose.................A2-11
Spindle Bore.................4.5"
Bar Capacity.................4"
Main Spindle Speed...........2,400 RPM
Lower Turret Stations........10
Live Tooling.................Yes
Turret Travel X..............10.5"
Turret Travel Z..............72"
Sub-Spindle Motor............60 HP
Sub Spindle Speed............2,400 RPM

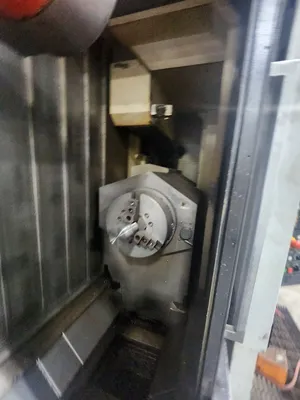

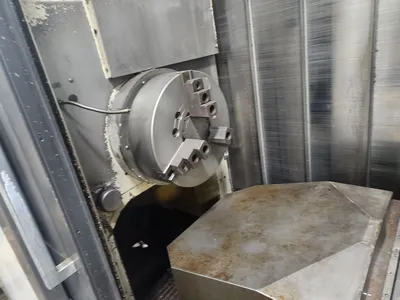

Sub Spindle Chuck............15"

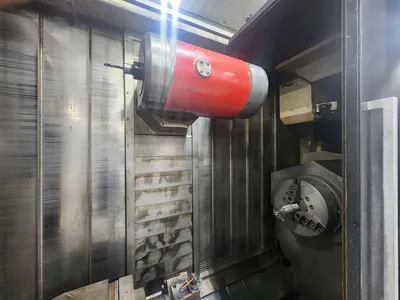

Milling Spindle Motor........40 HP
Spindle Taper................Capto C8
Live Milling Speed...........13,000 RPM
Number of Tools..............80 ATC
Machine Weight...............83,000 LBS
MAPPS Programming

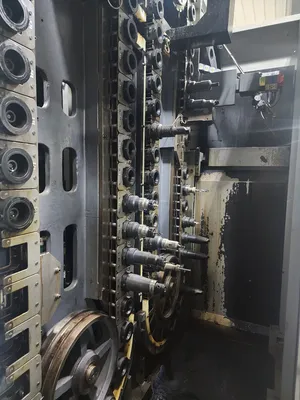

80 Station Tool Changer
Lower Turret with Milling

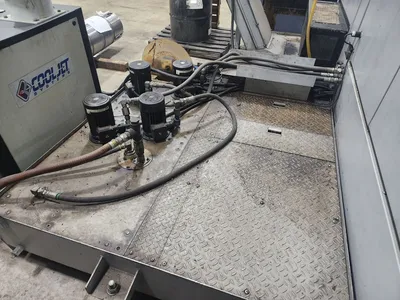

CoolJet High Pressure Coolant

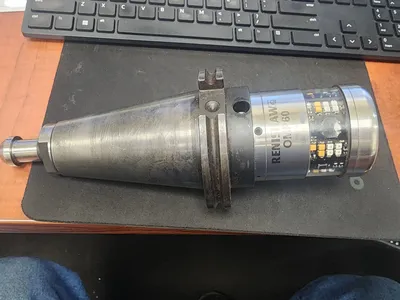

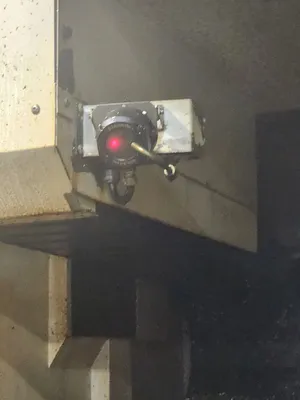

Renishaw OMP60 Probe

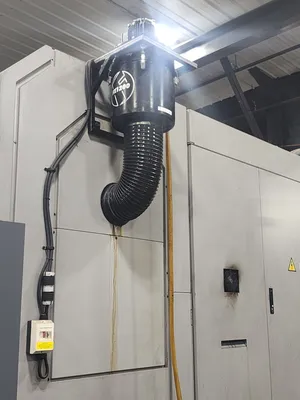

Filtermist FX-1200 Mist Collector Unit

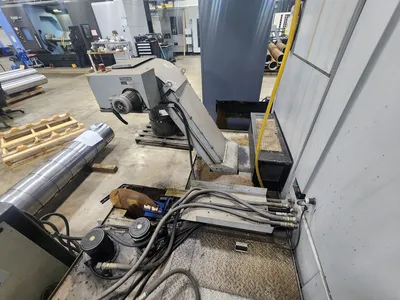

Chip Conveyor

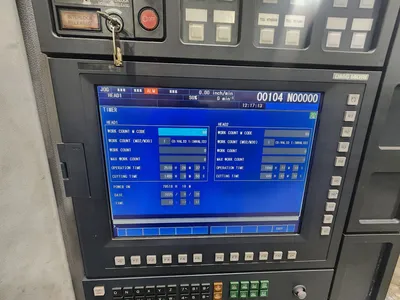

HOURS:
Power On Time................78,519
Operation Time Spindle 1.....2,510
Operation Time Spindle 2.....1,940
Milling Spindle Operation....37,552
Cutting Time.................50,280
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
