Mazak VTC-250D/50
Have one to sell?
ConditionUsed
1 available

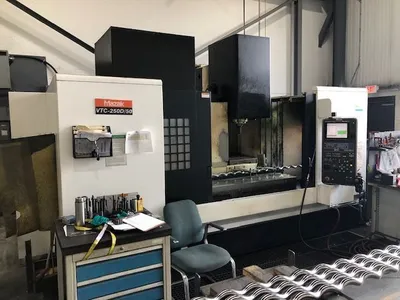

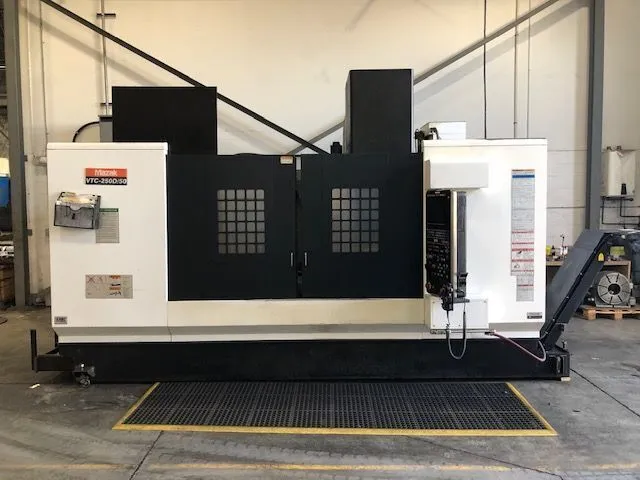

2014 Mazak VTC-250D/50 with Matrix 2 Control, Troyke 16" 4th Axis, C-Axis Indexing for Broaching/Clamping, Renishaw Radio Setter and Workpiece Probe, High Pressure TSC.
Table Size................................82.7" x 25"
Maximum weight on table...................2,778 LBS
Distance Spindle Nose to Table............7.1" - 32.2"
X-Axis Travel.............................69.3"
Y-Axis Travel.............................25"
Z-Axis Travel.............................25.6"
Spindle Motor.............................30 HP
Spindle Taper.............................CAT-50
Spindle Speeds............................6,000 RPM
ATC Capacity..............................24
Max Tool Diameter.........................4.3"
Max Tool Length...........................13.7"
Max Tool Weight...........................17.8 LBS

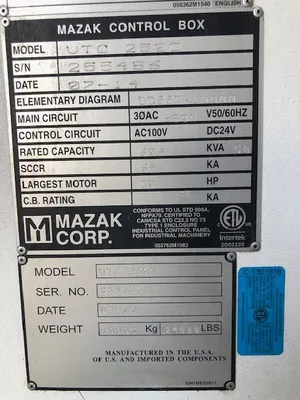

Electrical Requirements...................480V/60A/50KVA
Machine Dimensions........................171" x 134" x 105" H
Machine Weight............................24,000 LBS

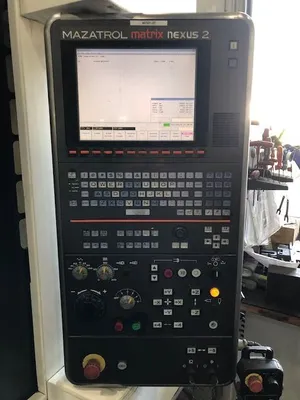

Mazatrol Matrix Nexus 2 Control
Troyke DL-16.5B 4th axis rotary table (16-1/2” dia with 6-1/2” thru-hole) and tailstock
Spindle “C-Axis” 0.001 degree incremental index/clamping for broaching

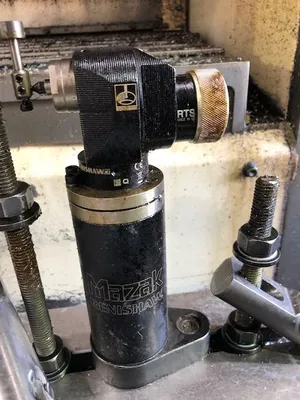

Mazak Renishaw RTS (Radio Tool Setter)
Mazak Renishaw Workpiece probe software (probe to be confirmed)
High pressure coolant thru spindle

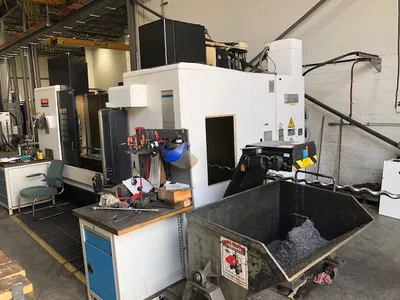

Mayfran Chip Conveyor
Coolant Tank

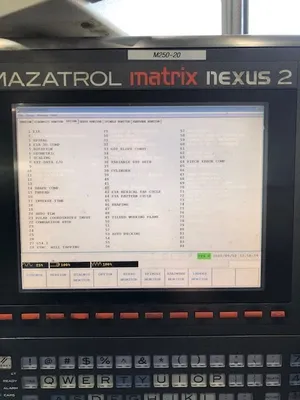

Control Options List Pictured
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
