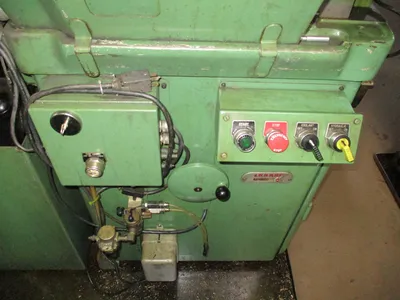

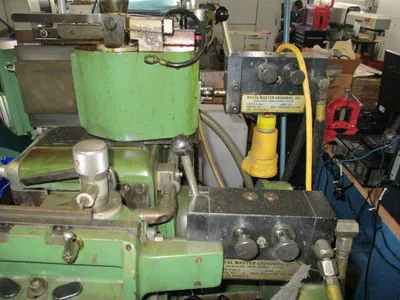

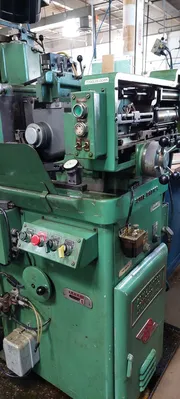

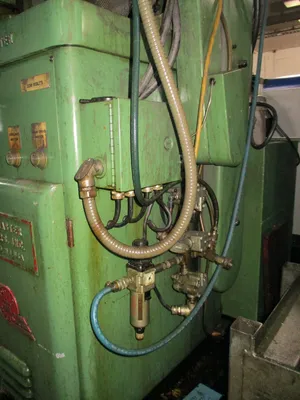

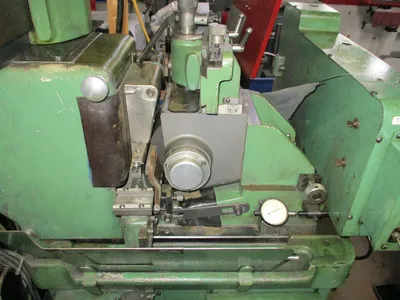

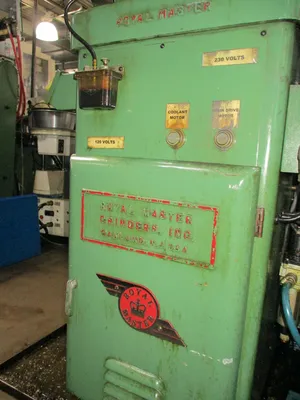

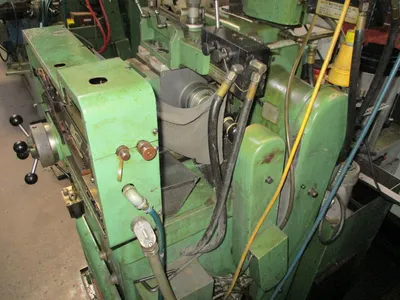

Royal Master TG12x4 Centerless Grinder
Have one to sell?
ConditionUsed
1 available

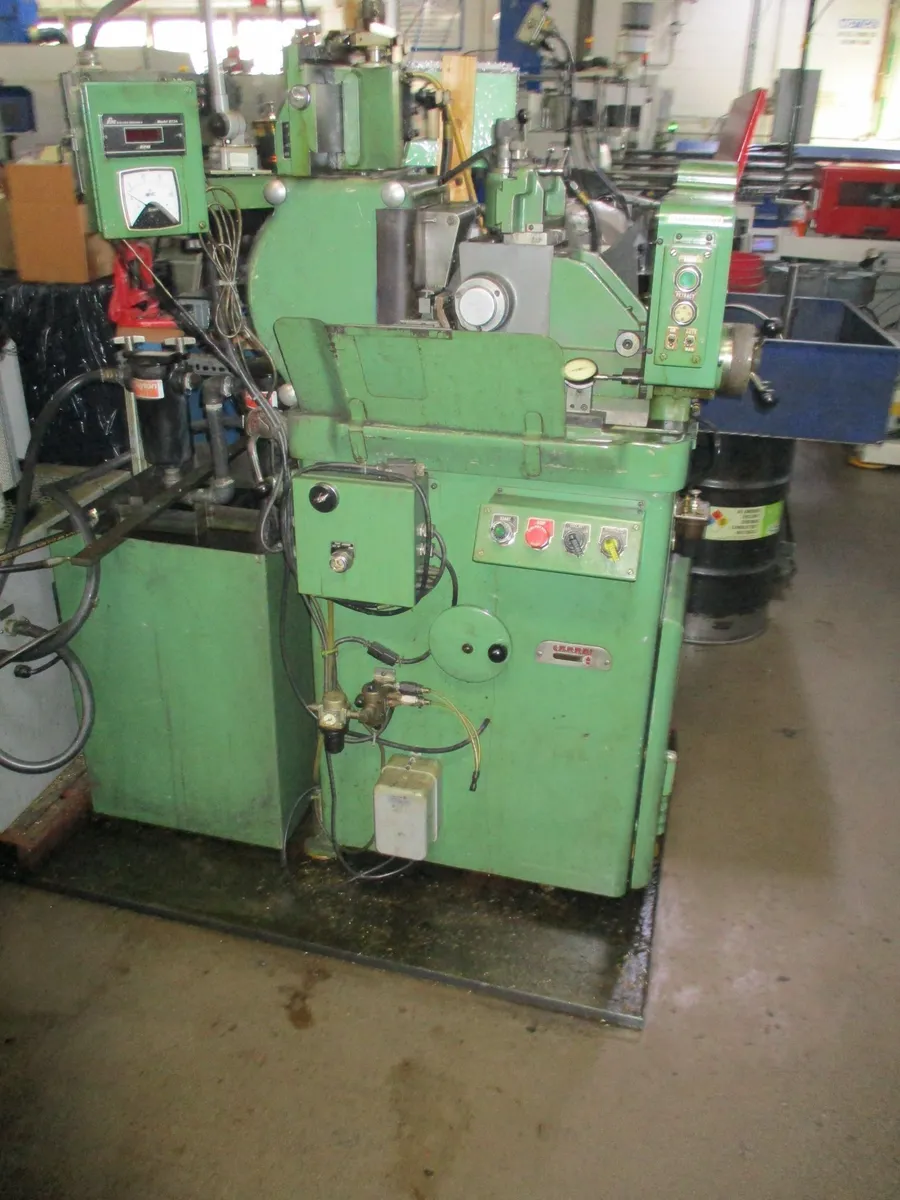

1980 Royal Master TG12x4 Centerless Grinder with Red Lion Digital Tach & Analogue Load Meter, Auto Cycle Attachment, Diamond Contour Dressers, Coolant Tank, and Work Light.
Infeed Diameter Capacity...............0.004" – 1.5"
Thrufeed Diameter......................0.004" – 1.5"
Thrufeed Length Capacity...............12′ (up to 0.5" Diameter)
Grinding Wheel Maximum Size............12" Diameter x 4" Wide
Grinding Wheel Minimum Size............10" Diameter x 0.25" Wide
Grinding Wheel Speed Constant..........2,040 RPM
Regulating Wheel Maximum Size..........6" Diameter x 4" Wide
Regulating Wheel Minimum Size..........4" Diameter x 0.125" Wide
Regulating Wheel Speed.................20 – 500 RPM
Maximum Thrufeed Grinding Tilt.........6 Degrees L or R
Maximum Taper Grinding Swivel..........5 Degrees L or R
Main Drive Power.......................7.5 HP
Main Drive Speed.......................1,725 RPM
Hydraulic Capacity.....................4 Gallons
Electrics..............................230V
Dimensions.............................54" x 30" x 66"
Weight.................................2,500 Lbs

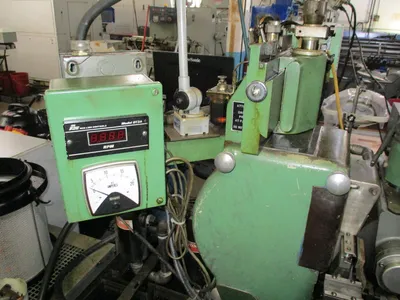

Red Lion DT3A Digital Tachometer & Analogue Load Meter
Automatic Cycle Attachment
Diamond Contour Dressers

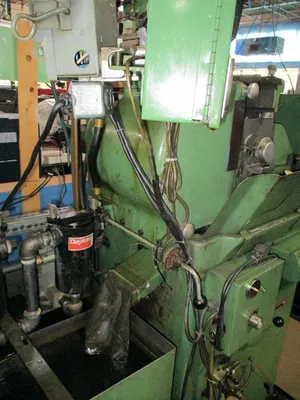

Coolant Tank & Pump
Work Light
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
1980 Royal Master TG12x4 Centerless Grinder with Red Lion Digital Tach & Analogue Load Meter, Auto Cycle Attachment, Diamond Contour Dressers, Coolant Tank, and Work Light.
Imperial
| Capacity | 1.5" |
| Grinding Wheel Dia. | 12" |
| GW Power | 7.5 hp |
| GW RPM | 2,040 RPM |
| Regulating Wheel Dia | 6" |
| RW RPM | 500 RPM |
| Dimensions | 54" x 30" x 66" |
| Weight | 2500 LBS |
Infeed Diameter Capacity...............0.004" – 1.5"
Thrufeed Diameter......................0.004" – 1.5"
Thrufeed Length Capacity...............12′ (up to 0.5" Diameter)
Grinding Wheel Maximum Size............12" Diameter x 4" Wide
Grinding Wheel Minimum Size............10" Diameter x 0.25" Wide
Grinding Wheel Speed Constant..........2,040 RPM
Regulating Wheel Maximum Size..........6" Diameter x 4" Wide
Regulating Wheel Minimum Size..........4" Diameter x 0.125" Wide
Regulating Wheel Speed.................20 – 500 RPM
Maximum Thrufeed Grinding Tilt.........6 Degrees L or R
Maximum Taper Grinding Swivel..........5 Degrees L or R
Main Drive Power.......................7.5 HP
Main Drive Speed.......................1,725 RPM
Hydraulic Capacity.....................4 Gallons
Electrics..............................230V
Dimensions.............................54" x 30" x 66"
Weight.................................2,500 Lbs
Red Lion DT3A Digital Tachometer & Analogue Load Meter
Automatic Cycle Attachment
Diamond Contour Dressers
Coolant Tank & Pump
Work Light
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
