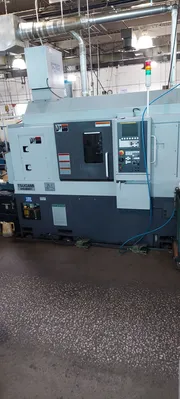

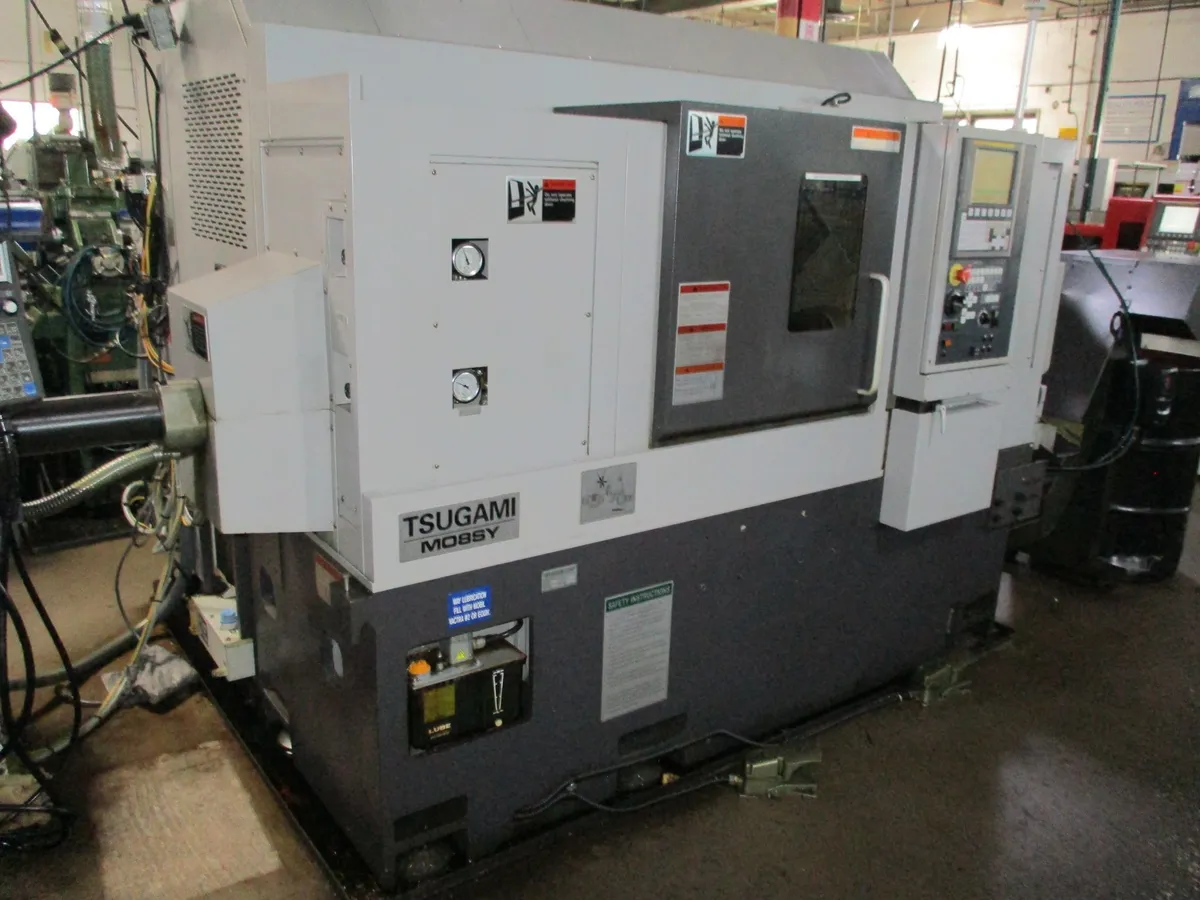

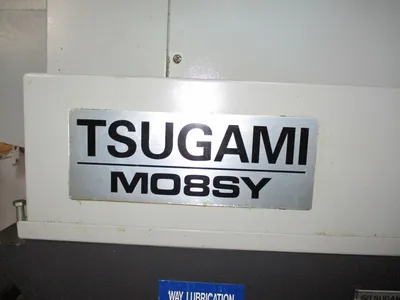

Tsugami M08SY CNC Turning Center with Sub-Spindle, Live Tooling, and Y-Axis
Have one to sell?
ConditionUsed
1 available
2014 Tsugami M08SY CNC Turning Center with Sub-Spindle, Live Tooling, and Y-Axis - Fanuc Oi-TD Control, Iemca I-Flex 6' Barfeed, Mist Collection, 200 PSI Through Tool Coolant, Low Hours.
Max Turning Dia.................11.2"
Max Turning Length..............14.96"
Distance Between Spindles.......19.92"
X-Axis Travel...................8.7"
Y-Axis Travel...................3.94"
Z-Axis Travel...................15.75"
C-Axis Travel...................0.001 Deg
W-Axis Travel...................19.92"
Spindle Motor...................15 HP
Spindle Nose....................A2-6
Main Spindle Bore...............2.99"
Bar Capacity....................2.55"
Spindle Speed...................4,500 RPM
Sub-Spindle Motor...............10 HP
Sub-Spindle Bore................2.44"
Sub-Spindle Bar Capacity........2"
Sub-Spindle Speed...............4,500 RPM
Rapid Rate X-Axis...............945 IPM
Rapid Rate Z-Axis...............1,062 IPM

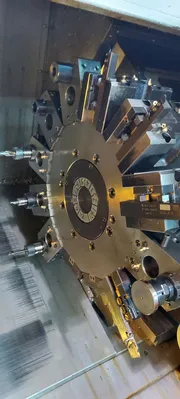

Turret Tools....................12 Station
Milling Spindle Motor...........5 HP
Milling Spindle Speed...........5,000 RPM
Dimensions......................98" x 73" x 76"
Weight..........................13,000 LBS
Fanuc Oi-TD Control

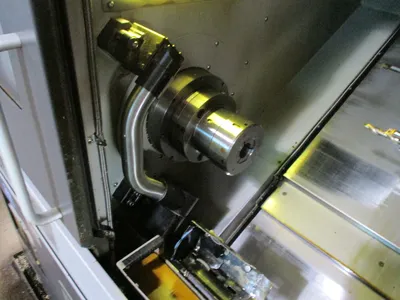

Sub-Spindle
Live Tooling
Y-Axis
lemca I-Flex- 6ft bar feeder (Package B Three Channel sets- Capacity-52mm & 36MM)
Spindle liners (TwO Included with Iemca Package B)

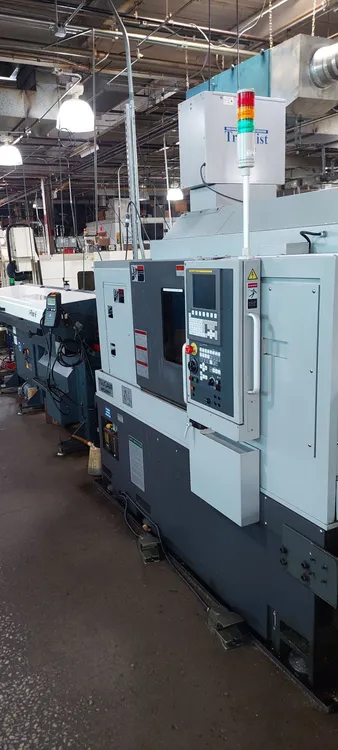

Red/Yellow/Green Patrol Light System
Coolant Thru Turret (200 PSI)
Chip Conveyor

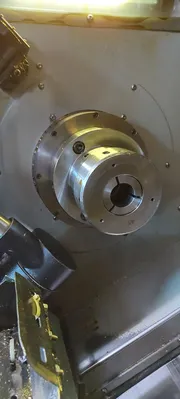

8" Chuck on Main A2-6 Spindle
6" Chuck on Sub Spindle
Sub Spindle Ejector Stroke (150MM)
Transformer 15Kva

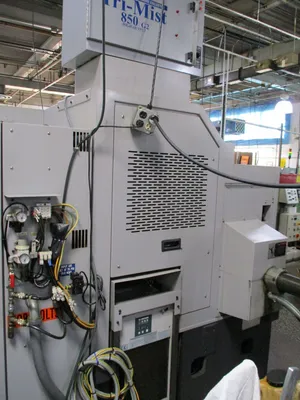

Tri-Mist 850 G2 Mist Collection
C/O Blade Type holder (32mm Blade)
9 LED light
Boring Ring 8" Chuck
Boring Ring 6" Chuck
Turret Plugs Included
Foot Switch Main Spindle
Foot Switch Sub-Spindle
**UNDER 7,000 CUTTING HOURS**
**PICTURED CHUCKS NOT INCLUDED, 8" & 6" INCLUDED**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
