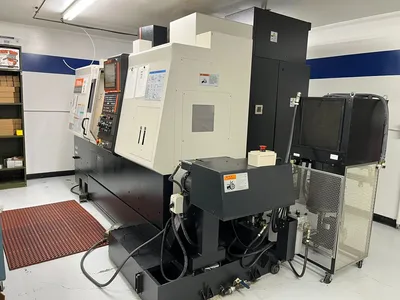

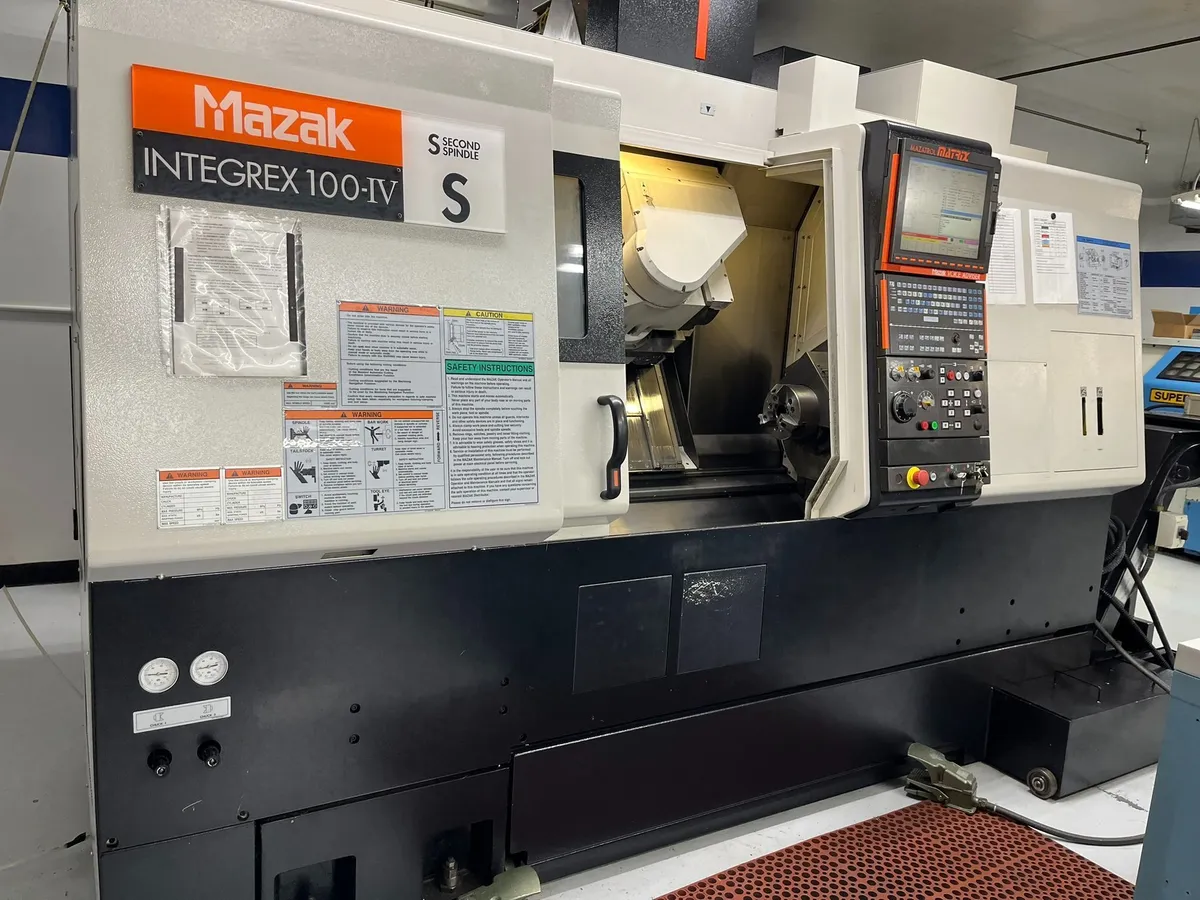

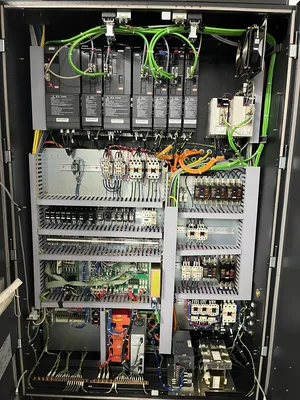

Mazak Integrex 100-4S Multi-Tasking CNC Turning/Milling Center
Have one to sell?
ConditionUsed
1 available
2006 Mazak Integrex 100-4S Multi-Tasking CNC Turning/Milling Center with Matrix Control, 6" Chucks, 2.0" Bar Capacity, 40 ATC, Parts Catcher, Chip Conveyor. 8,294 Cutting Hours
SPECIFICATIONS:
Maximum Swing........................... 21.46"
*Tool eye body may limit max. swing*
Maximum Swing using Y-axis.............. 16.22"-21.46"
Mazimum Swing over Cross Slide.......... 13.86"
Maximum Cutting Diameter: Chucking...... 21.46"
Maximum Cutting Length.................. 29.65"
Maximum Distance Between Chuck Faces.... 31.18"

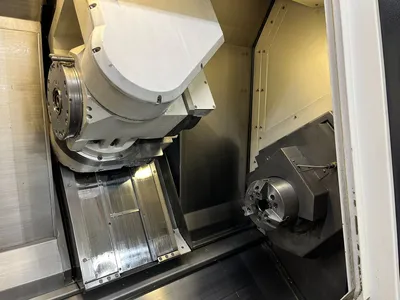

MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose............................ A2-5
Spindle Bore............................ 2.4"
Maximum Bar Work.... ................... 1.625”
Spindle Speed........................... 6,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Mins.)..... 10/15 HP (AC)
Spindle Torque.......................... 119 ft-lbs.

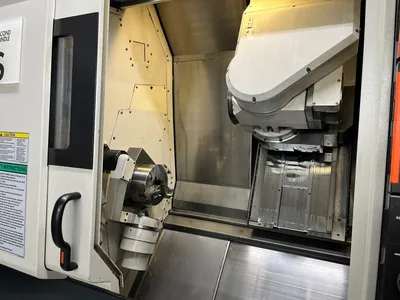

SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose............................ A2-5
Spindle Bore............................ 2.4"
Spindle Speed........................... 6,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg. C-axis optional
Spindle Horsepower (Cont./30 min)....... 10/15 HP (AC)
Spindle Torque.......................... 119 ft-lbs.

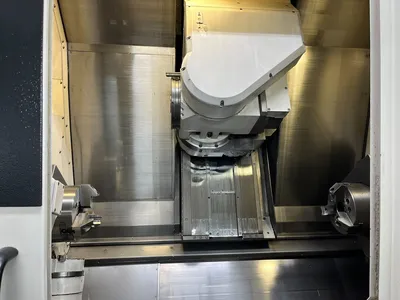

TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 1 position w/ATC
Tool Shank Height....................... 3/4"

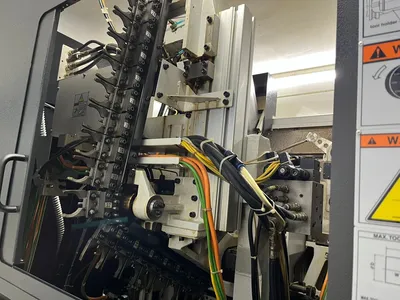

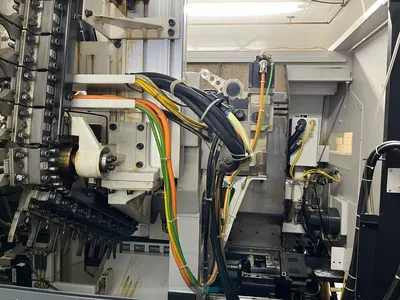

Magazine Capacity....................... 40 ATC
Rotary Tool Spindle Speed................ 12,000 RPM
Rotary Tool Spindle Horsepower (20% ED). 7.5 HP (AC)
Rotary Tool Torque (20% ED) ............ 36.2 ft-lbs
AXES TRAVELS:
B-Axis Travels.......................... 225 degrees
Y-Axis Travels.......................... +/-2.75"
X-Axis Travels.......................... 16.14"
Z-Axis Travels.......................... 31.69"
Second Headstock W-Axis................. 31.3"
Axes Rapids (Y,X,Z,W,)................. 1024,1181,1299,1181 IPM
C-Axis Rapids.......................... 555 RPM

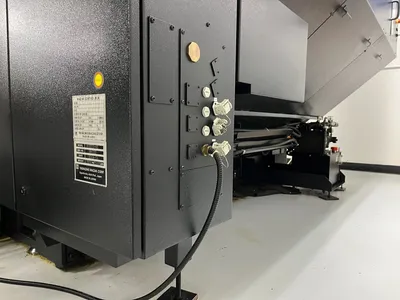

GENERAL:
Dimensions.............................. 118.9" x 85.04" x 96"
Machine Weight.......................... 15,400 LBS

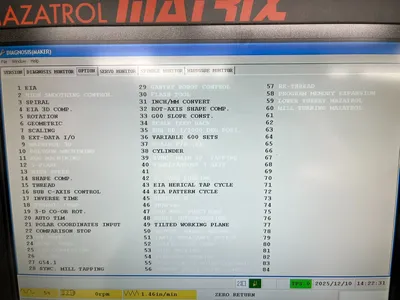

Mazatrol Matrix CNC Control
15" Color LCD
EIA/ISO Code Input Function
GOO Slope Constant
Shape Compensation for Rotary Axes
Cylindrical & Polar Coordinate
Mill Spindle Synchronous Tapping
Inch/Metric Conversion
CARDBUS I/F (2-Slot)
LAN Port
USB I/F
Y-Axis Control
Coolant Through Milling Head
213 PSI Thru Coolant/Flood Coolant Simul-Flowable
1st Spindle 15 HP / 6000 RPM
C-Axis 0.0001 Degree Incr. (1st Spindle)
2nd Spindle 15 HP / 6000 RPM
2nd Spindle C-Axis 0.0001 Degree Incr.

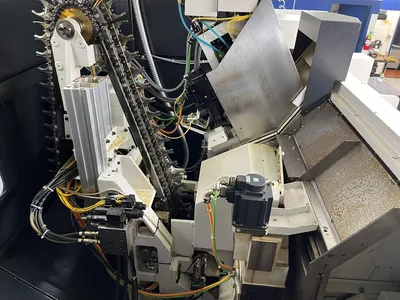

40 KM Tool Magazine
Rotary Tool Spindle Speed 12,000 RPM
B-Axis 0.0001 Deg/Cntring (Req. EIA/ISO)
B-Axis Index 5 Degree (Coupling Clamp)

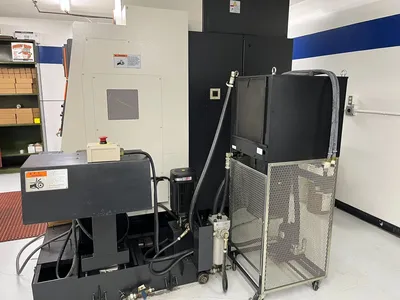

Concep Chip Conveyor Side Disposal (Hinge Type)
Automatic Tool Eye
Auto Chuck Jaws Open/Close (1&2 Spindle)
Chuck Open/Close Confirm. (1&2 Spindle)
Operator Door Interlock with Lock-Switch

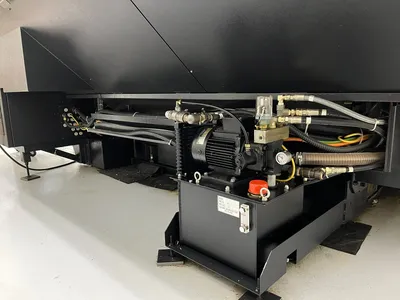

Hydraulic Pressure Interlock
Windows XP Operating System
Auto Parts Catcher w/EJEC
Auto Power On/Off

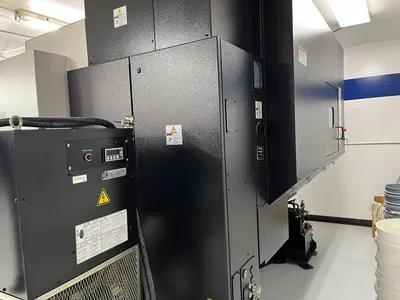

Coolant Temperature Control System

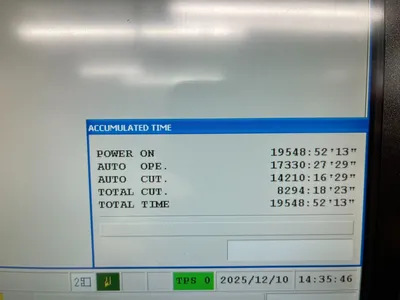

HOURS:
Power On Time.........19,548
Auto Ope..............17,330
Auto Cut..............14,210
Total Cut.............8,294
Total Time............19,548
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
