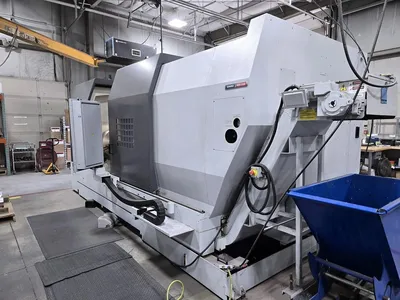

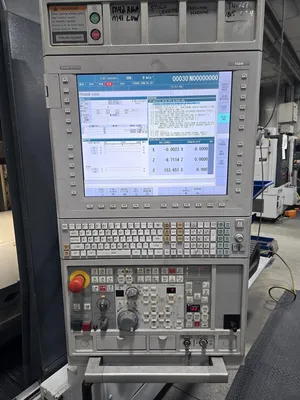

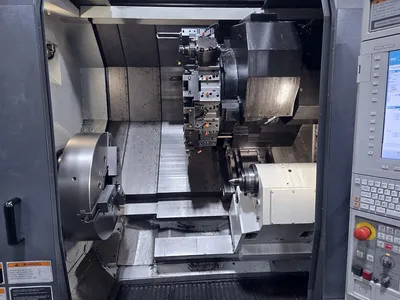

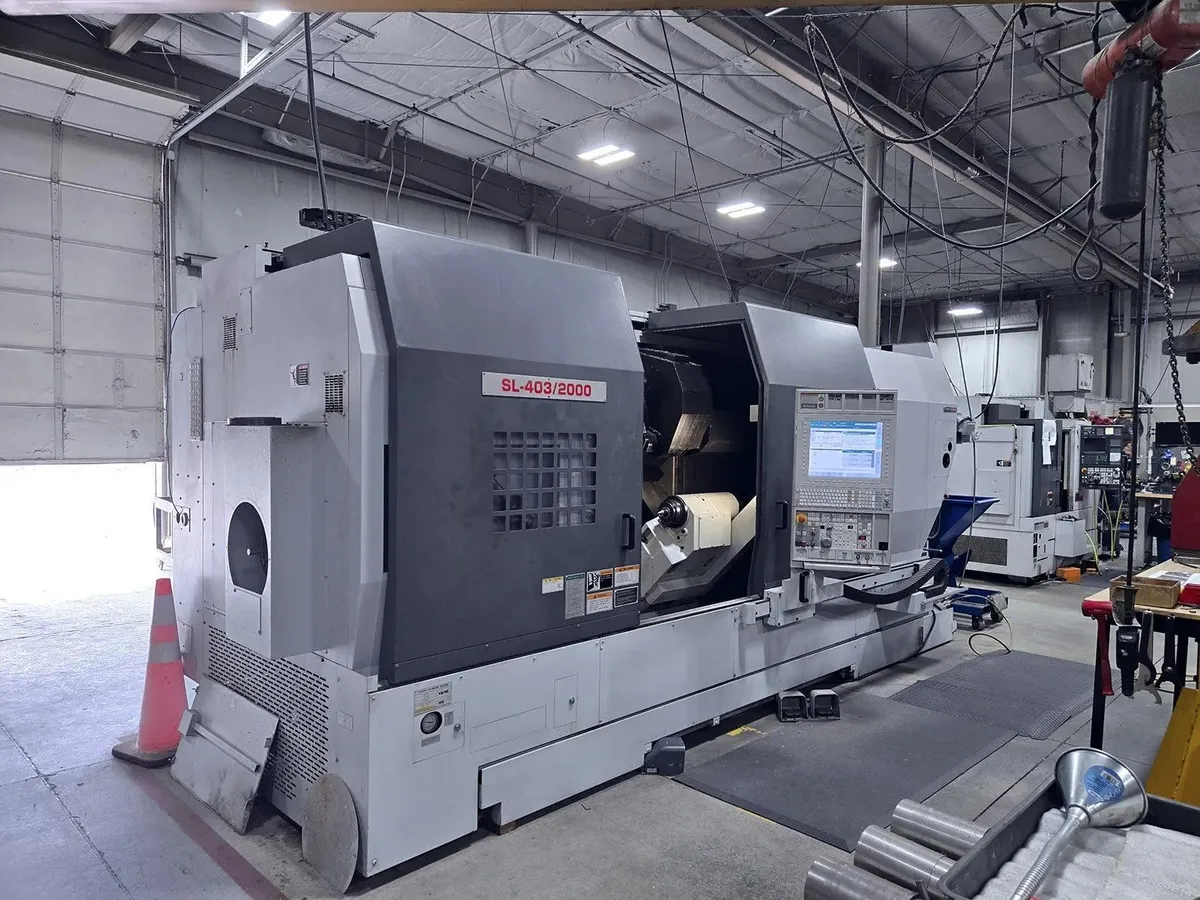

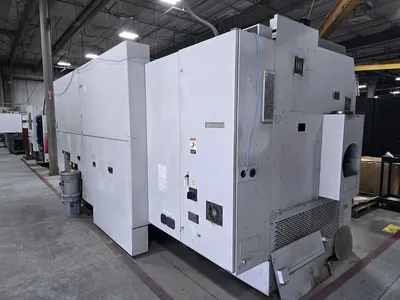

Mori Seiki SL-403BMC/2000

SWING OVER BED...........................36.8"
SWING OVER CROSS SLIDE...................29.1"
DISTANCE BETWEEN CENTERS.................91.5"
MAX TURNING DIAMETER.....................24.0"
MAX TURNING LENGTH.......................84.9"
X-AXIS TRAVEL............................14.7"
Z-AXIS TRAVEL............................82.7"
MIN SPINDLE INDEXING ANGLE...............0.001°
SPINDLE DRIVE MOTOR......................50 HP
TYPE OF SPINDLE NOSE.....................JIS-A2-11
THROUGH-SPINDLE HOLE DIAMETER............5.1"
NUMBER OF SPINDLE SPEED RANGES...........2
MAX SPINDLE SPEED........................2,400 RPM
RAPID TRAVERSE X/Z/C.....................787.4 / 944.9 / 56
NUMBER OF TOOL STATIONS..................12
SHANK HEIGHT FOR SQUARE TOOL.............1-1/4"
SHANK DIAMETER FOR BORING BAR............2-1/2"
TURRET INDEXING TIME.....................0.4 SEC
ROTARY TOOL SPINDLE DRIVE MOTOR..........12 HP
MAX ROTARY TOOL SPINDLE SPEED............3,000 RPM
TAPER HOLE OF TAILSTOCK SPINDLE..........MT-5, BUILT-IN
TAILSTOCK SPINDLE DIAMETER...............5.9"
TAILSTOCK TRAVEL.........................78.7"
COOLANT TANK CAPACITY....................87.1 GAL
ELECTRICAL POWER SUPPLY..................52.3 KVA
MACHINE DIMENSIONS.......................243" × 101" × 100" TALL
MACHINE WEIGHT...........................33,000 LBS
