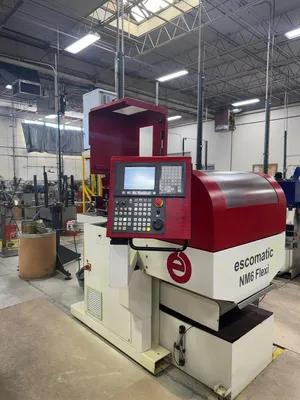

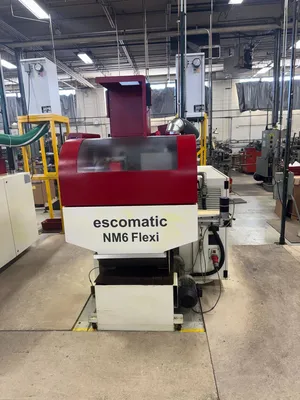

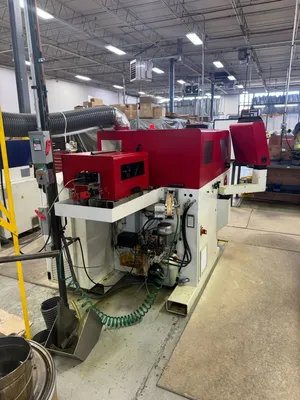

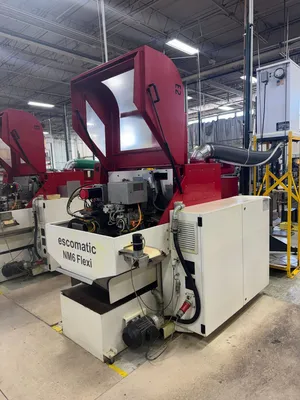

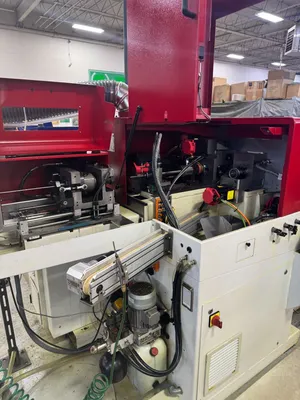

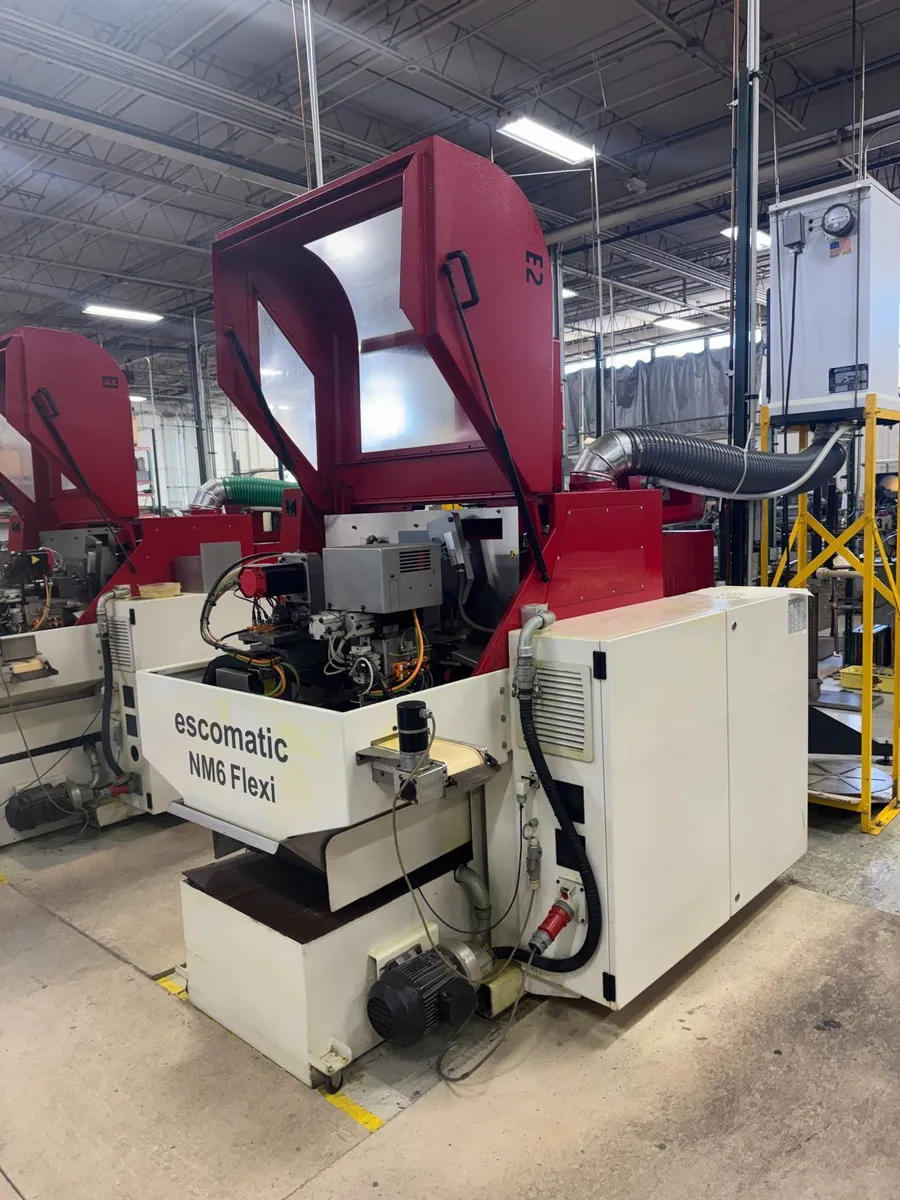

Escomatic NM6 FLEXI

Max. material diameter..............................6.50 mm
Work piece length standard..........................150 mm
Number of tools.....................................4
Max. toolhead speed.................................10’000 (12’000 option) min-1
Front machining unit (DUF)
Number of powered tools axial.......................3
Max. drilling diameter..............................6 mm
Max. tapping capacity...............................M4
Max. drilling speed.................................12’000 min-1
Number of powered tools lateral (option)............1
Max. drilling/milling speed.........................4’000 min-1
Back machining unit (DUA)
Max. speed of counter spindle.......................10’000 min-1
Number of fixed tools axial.........................4
Max. drilling diameter..............................6 mm
Max. tapping capacity...............................M4
Number of powered tools axial.......................4
Number of powered tools lateral.....................2
Max. drilling speed.................................15’000 min-1
Max. drilling diameter..............................5 mm
Max. tapping capacity...............................M3
C-Axis
Resolution/Increment................................0.001 °
Numerical control...................................CNC control FANUC Oi-TF
Max. number of controlled axes......................7
Number of spindles..................................3
Measuring system resolution.........................0.001 mm
Rapid feed..........................................40 m/min
Tank capacity.......................................130 l
Flow rate of the pump...............................30 l/min
Max. system pressure................................8 bar
Chips container capacity............................70 l
Installed power.....................................8 kVA
Compressed air consumption..........................11 m3/h
Compressed air pressure.............................5 bar
Dimensions
Length x Width x Hight..............................2’270 x 1’600 x 1’700 mm

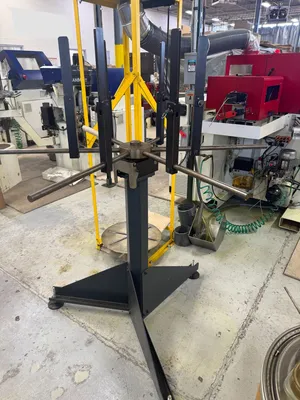

L x W x H with coil reel............................3’600 x 1’650 x 1’700 mm
Net weight..........................................1’600 kg
Gross weigth........................................1’800 kg
Average sound pressure level........................69.8 dB
Average sound power level...........................87.3 dB

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
