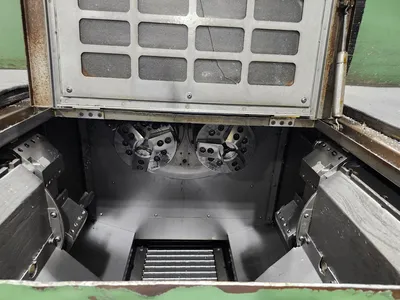

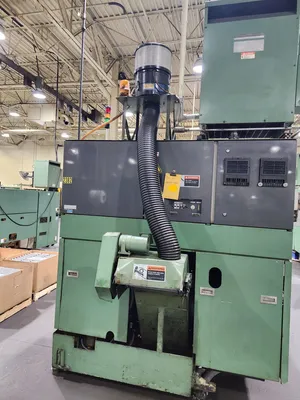

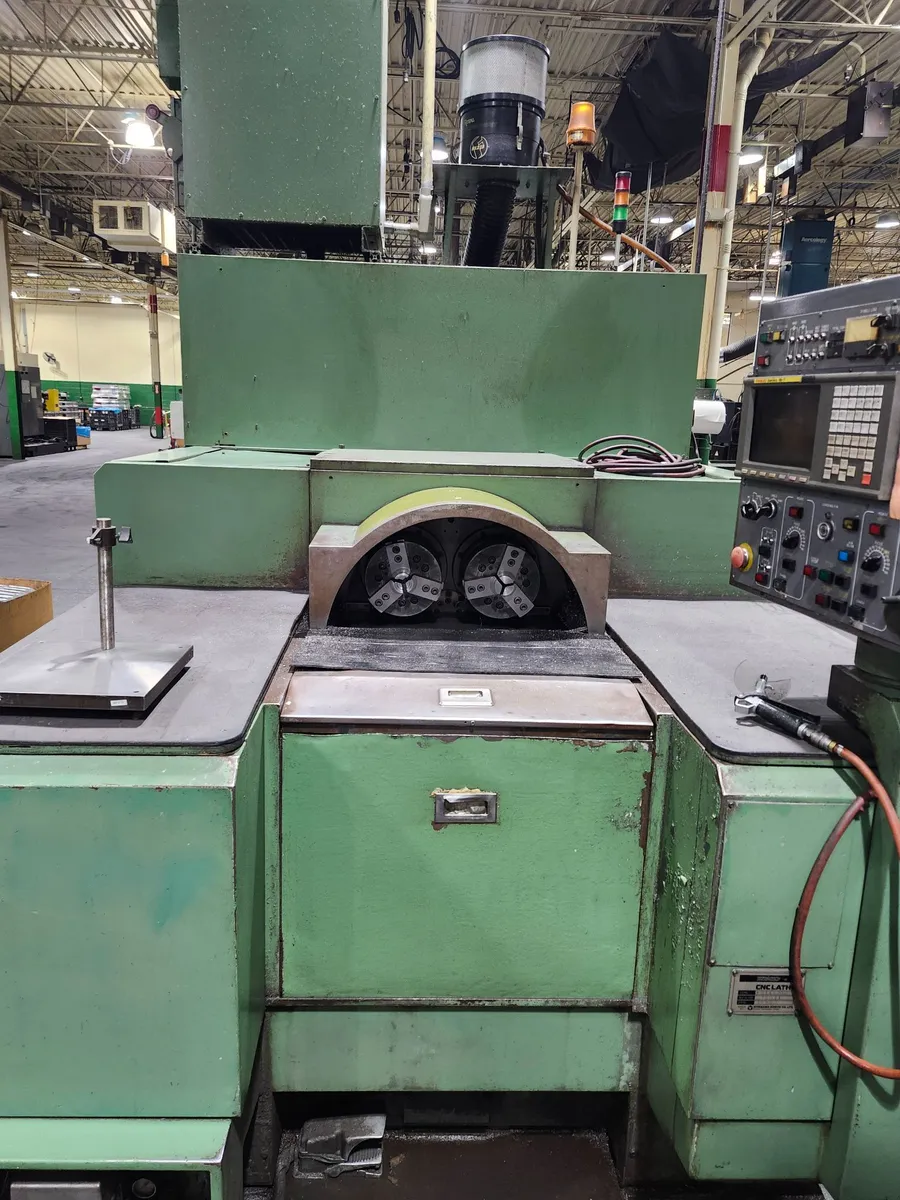

Kitako MT4-200 Multi Spindle CNC Turning Center

No. of Spindles.......................4
Max Swing.............................8.3"
Max Turning Length....................6.3"
Max Turning Diameter Left Turret......7.9"
Max Turning Diameter Right Turret.....7.9"
X1 Axis Travel (Left Turret)..........6.69"
X2 Axis Travel (Right Turret).........6.69"
Z1 Axis Travel (Left Turret)..........9.84"
Z2 Axis Travel (Right Turret).........9.84"
C Axis Indexing.......................0.001°
Spindle Motor.........................20 HP
Spindle Nose..........................A2-6
Spindle Bore..........................1.97"
Max Bar Capacity Main Spindle.........1.56"
Spindle Speed.........................4,000 RPM
Rapid Traverse X1, X2 Axis............945 IPM
Rapid Traverse Z1, Z2 Axis............787 IPM
Left Turret Capacity..................8 Stations
Right Turret Capacity.................8 Stations
Machine Dimensions....................106" x 78" x 85"
Machine Weight........................17,500 LBS
